Audio Technica
AT803

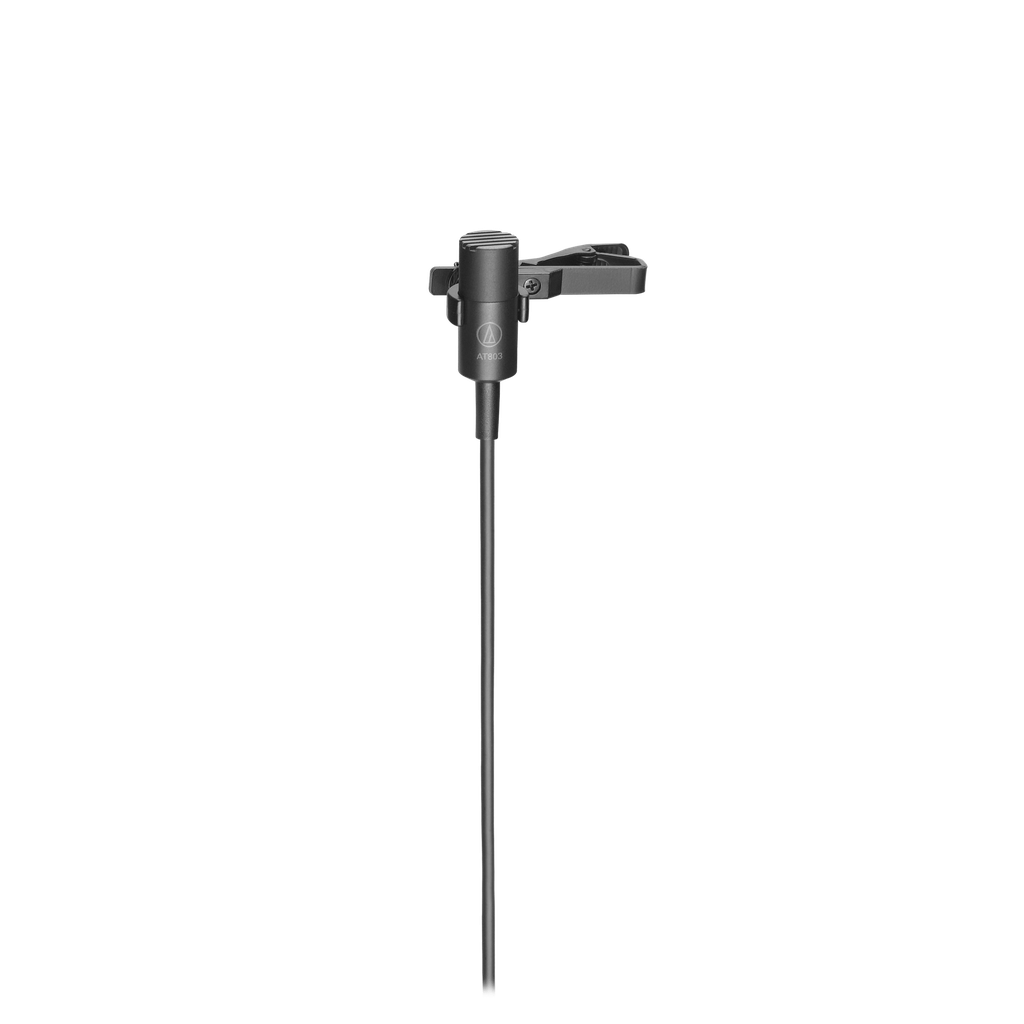

Miniature omnidirectional condenser microphone with power module
The AT803 provides excellent yet unobtrusive sound pickup for lecturers and stage/TV performers. Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.
- High intelligibility for lecturers and stage/TV performers
- Provides excellent yet unobtrusive sound pickup
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Operates on battery or phantom power
- 6' (1.8 m) cable permanently attached to mic, TA3F connector at power module
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 30 - 20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: -44 dB (6.3 mV) re 1V at 1 Pa Battery: -46 dB (5.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 135 dB SPL, 1 kHz at 1% T.H.D. Battery: 121 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 107 dB, 1 kHz at Max SPL Battery: 93 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 66 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Off, on-flat, on-roll-off |
| Weight | Microphone : 2.8 g (0.1 oz) - Power Module : 139 g (4.9 oz) |
| Cable | 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector |
| Dimensions | Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D |
| Output Connector | Integral 3-pin XLRM-type (on Power Module) |
| Accessories Included | AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case |
The AT803 provides excellent yet unobtrusive sound pickup for lecturers and stage/TV performers. Designed for clip-on lavalier and musical instrument use, it features an integral 80 Hz high-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The microphone operates on battery or phantom power.
- High intelligibility for lecturers and stage/TV performers
- Provides excellent yet unobtrusive sound pickup
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Operates on battery or phantom power
- 6' (1.8 m) cable permanently attached to mic, TA3F connector at power module
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 30 - 20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | Phantom: -44 dB (6.3 mV) re 1V at 1 Pa Battery: -46 dB (5.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 135 dB SPL, 1 kHz at 1% T.H.D. Battery: 121 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 107 dB, 1 kHz at Max SPL Battery: 93 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 66 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Off, on-flat, on-roll-off |
| Weight | Microphone : 2.8 g (0.1 oz) - Power Module : 139 g (4.9 oz) |
| Cable | 1.8 m (6') long (permanently attached to microphone), 2.6 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type connector |
| Dimensions | Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D |
| Output Connector | Integral 3-pin XLRM-type (on Power Module) |
| Accessories Included | AT8531 power module; AT8419 clothing clip; AT8116 windscreen; battery; protective carrying case |
