dB Technologies

DVA-T8

https://www.mgmaudio.ch/web/image/product.template/2578/image_1920?unique=6ac715d

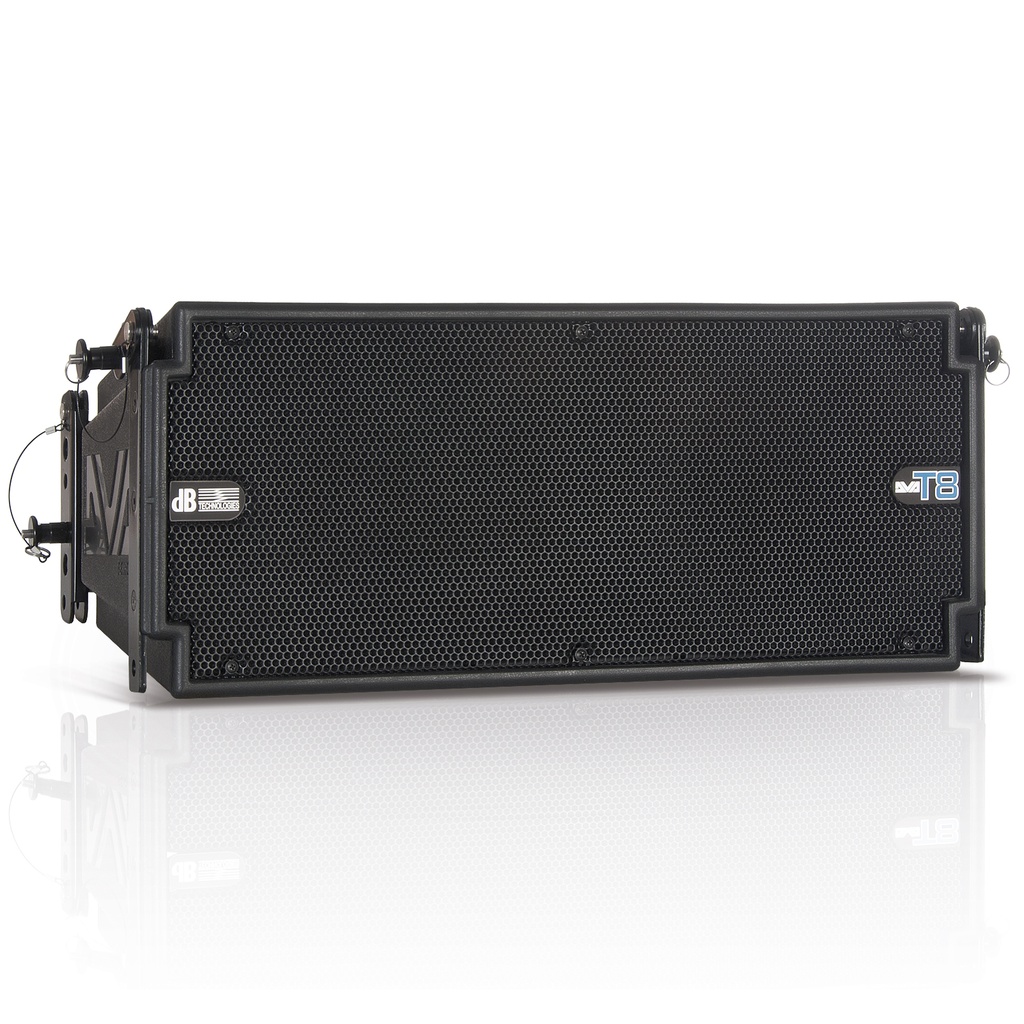

Active 3- Way 8/6½/1" Line-Array Module

CHF 2'123.03 2123.03 CHF CHF 2'123.03 TVA comprise

CHF 2'123.03 TVA comprise

Pas disponible à la vente

Wird für Sie bestellt

Diese Kombination existiert nicht.

Kontaktieren Sie uns

Conditions générales
Versand: 2-3 Arbeitstage

The most advanced incarnation of a string of successful line array systems that started with the DVA T4 and enhanced with DVA T12. Hard to believe that something so petite succeded in packing such a mighty punch.
Technical Data
Speaker Type 3-Way Active Line Array Module
Acoustical data
Frequency Response [-6dB] 66 - 18.000 Hz
Max SPL One Unit: 132 dB
HF 2x1 "
Voice Coil HF 1.4 "
Directivity 100x15 ° Single unit
MF 1x 6.5 "
Voice Coil MF 2 "
LF 8 "
Voice Coil LF 2.5 "
Amplifier
Amp Technology Digipro® G2
Amp Class Class D
HF Amp 175 W RMS
MF Amp 175 W RMS
LF Amp 350 W RMS
Cooling Convection
Processor
Controller DSP 56 bit with double precision filters
AD/DA Converter 24 bit/96 kHz
System Presets 9, (8xHF and Low-mid correction)
Limiter Dual Active LimiterMultiband RMS, Peak, Thermal
Crossover Frequency MF-HF 1900 Hz
Slope MF-HF 24 dB/Octave
Crossover Frequency LF-MF 400 Hz
Slope LF-MF 24 dB/Octave
Input
Signal Input 1x XLR fem, Bal.
Signal Output 1x XLR male, Bal.
Network RDnet remote control RJ45 connector IN/OUT
Power Socket 1x Powercon In1x Powercon Out
Voltage Range 90 - 240 V
Mechanics
Housing Polypropylen PPMetal reinforced
Housing Design Trapezoidal 15°
Rain Cover Included
Rigging Points Integrated rigging hardware
Width 580 mm (23.2 in)
Height 240 mm (9.6 in)
Depth 327 mm (13.08 in)
Weight 14,2 kg (31.3 lbs)
