  3. DN9652
KlarkTeknik

DN9652

https://www.mgmaudio.ch/web/image/product.template/2184/image_1920?unique=7d04a7b

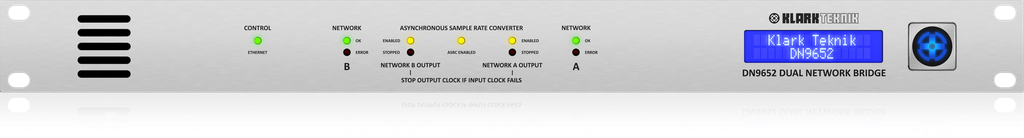

Dual Network Bridge Format Converter

CHF 1'938.02 1938.02 CHF CHF 1'938.02 TVA comprise

CHF 1'938.02 TVA comprise

Pas disponible à la vente

Wird für Sie bestellt

Diese Kombination existiert nicht.

Kontaktieren Sie uns

Conditions générales
Versand: 2-3 Arbeitstage

DN9652 provides a multichannel interface between two third party digital audio networks and point-to-point interfaces. The third party interfaces operate in separate clock domains and are connected by a bidirectional asynchronous sample rate converter (ASRC). This unique Klark Teknik technology allows the interfacing of up to 64 bidirectional channels between the two independently clocked domains, which can also operate at different sample rates. Currently supporting MADI and Audinate Dante via the Klark Teknik KT-MADI And KT-DANTE64 network modules, DN9652 is future-proofed in the evolving world of digital audio networking technology by being able to support new and emerging protocols via its industry-standard expansion slot, which is compatible with the Cirrus CM-1* format.


  • Dual network bridge format converter with up to 64 bidirectional channels

  • Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules

  • Bidirectional Asynchronous Sample Rate Conversion on every channel with bypass facility

  • Bidirectional output audio clock inhibit feature for redundant network systems

  • 24 bit audio operation with 96 kHz and 48 kHz sample rates

  • Video synchronisation in standard and high definition formats

  • Internal "AES Grade 1" temperature-compensated word clock (1 ppm)

  • Internal web server allows browser-based configuration via Ethernet control port

  • Status indicator LEDs and LCD display on front panel

  • Features Neutrik etherCON* network ports

  • Rugged 1U rackmount chassis for durability in portable applications

  • Auto-ranging universal switch-mode power supply

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.
