Audio Technica
ATM350PL

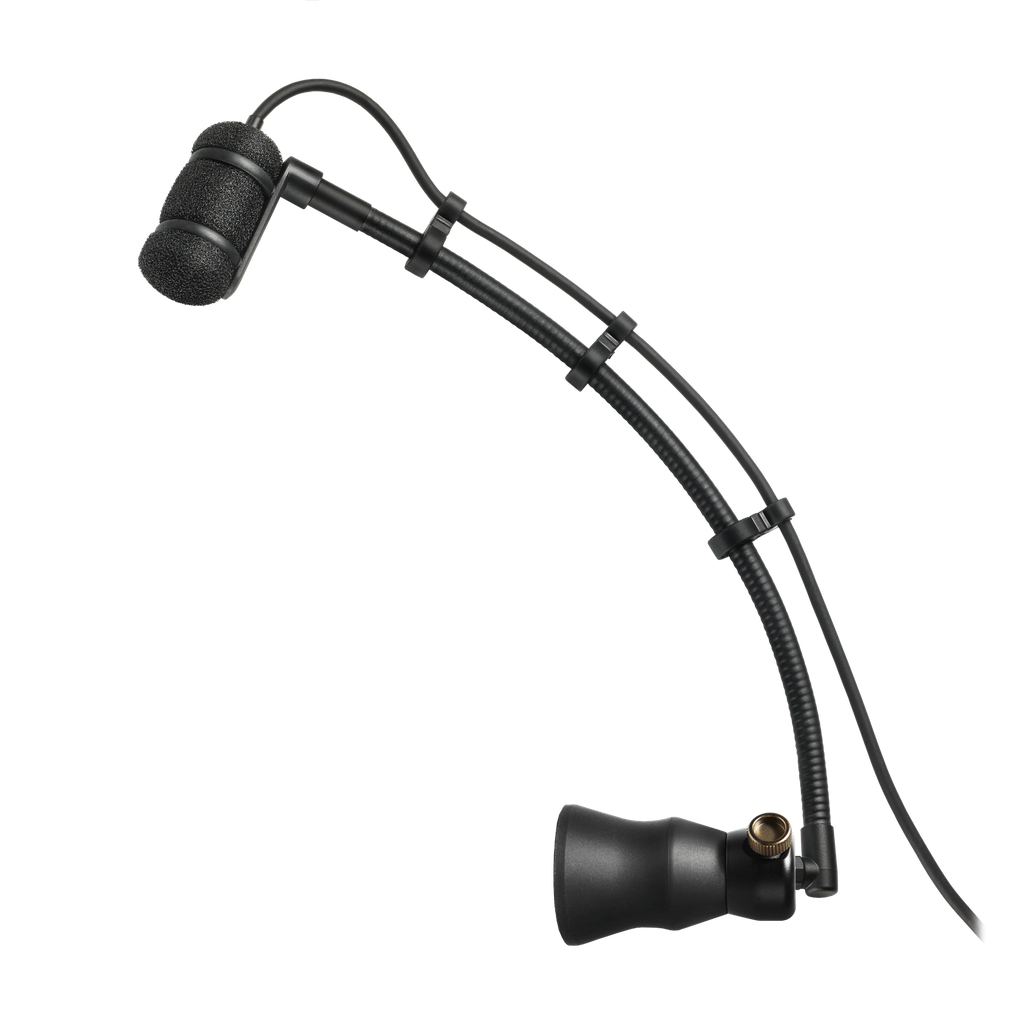

Cardioid Condenser Instrument Microphone w/ Magnetic Piano Mounting System (Long
The ATM350a is the ultimate microphone solution for discreet, rock-solid mounting on your instrument of choice, from Piano to 20-piece Drum Kit.
Offering a crisp, clear, well-balanced response, even at extreme SPLs, the ATM350a is ready to capture your sound, whatever instrument you choose.
The AT8491P magnetic piano mount allows true flexibility on grand and upright pianos
The ATM350PL Cardioid Condenser Instrument Microphone w/ Piano Mounting System (Long) includes: ATM350a microphone, AT8490L gooseneck (long), AT8491P piano mount, AT8543 power module, AT8468 velcro mount and a hard carrying case
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 40 – 20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | –49 dB (3.5 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 159 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 130 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11– 52V DC, 3.5 mA typical |
| Switches | Flat, roll-off |
| Weight | Microphone: 14.5 g (0.5 oz) Power Module: 90 g (3.2 oz) |
| Cable | 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector |
| Dimensions | Microphone: 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter Power Module: 92 mm (3.62") long, 18.9 mm (0.74") diameter |
| Output Connector | Power Module: Integral 3-pin XLRM-type |
| Accessories Included | ATM350a cardioid condenser microphone; AT8543 power module; AT8491P UniMount® magnetic piano mount; AT8490L UniMount® 9" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case |
