Audio Technica
ES915ML21

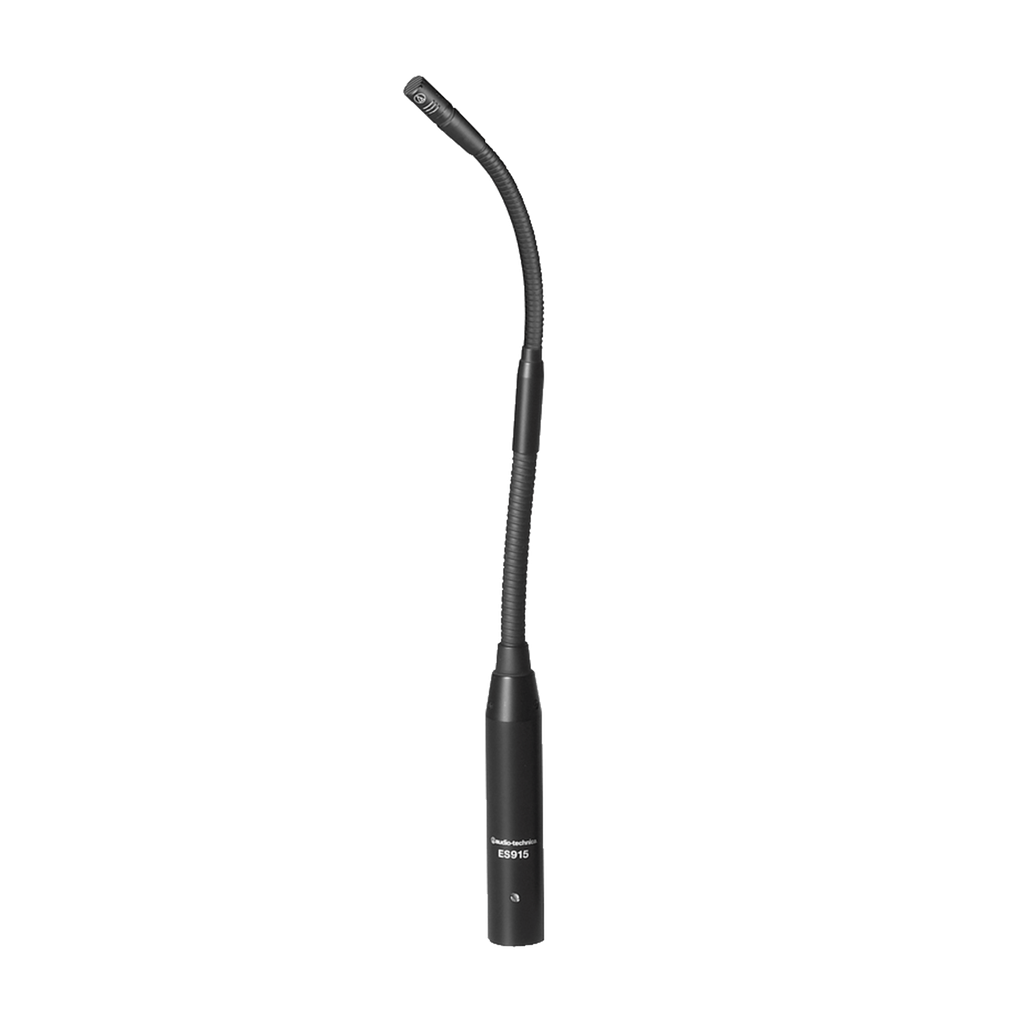

Hypercardioid Condenser Gooseneck Microphone
Hypercardioid Condenser Gooseneck Microphone
Equipped with Audio-Technica's legendary electro-acoustic design innovations, the ES915H is ideal for applications where quality sound and flexible performance are imperative.
Equipped with Audio-Technica's legendary electro-acoustic design innovations, the ES915H is ideal for applications where quality sound and flexible performance are imperative. This small-diameter gooseneck microphone provides highly flexible positioning while maintaining a well-contoured appearance. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES915H also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone's low-profile element provides a uniform hypercardioid polar pattern with 100º acceptance angle. The microphone can be mounted on a podium or desktop with the included AT8474 low-profile isolation mount, which attenuates noise, shock and vibration transmitted through the mounting surface.
- Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
- Low-profile element provides uniform hypercardioid polar pattern with 100º acceptance angle
- Plugs into any standard XLRF-type connector, or direct mounts to 5/8"-27 stands using included thread-mount adapter
- Included low-profile isolation mount attenuates noise, shock and vibration
- Available interchangeable elements permit angle of acceptance from 90º to 360º
- Small-diameter, alternating gooseneck design permits highly flexible positioning
- Superior off-axis rejection for maximum gain before feedback
- Requires 11V to 52V DC phantom power
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- RoHS compliant - free from all substances specified in the EU directive on hazardous substances
- The ES915H is available in the following models and lengths: ES915H12 304.8 mm (12"), ES915H18 457.2 mm (18") and ES915H21: 533.4 mm (21")
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarised condenser |
| Polar Pattern | Hypercardioid |
| Frequency Response | 80 - 20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 138 dB SPL, 1 kHz at 1% THD |
| Dynamic Range | 109 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 4 mA typical |
| Switches | Flat, roll-off |
| Weight | ES915H12 125 g, ES915H18 135 g, ES915H21 140 g |
| Dimensions | Length - ES915H12 304.8 mm, ES915H18 457.2 mm, ES915H21 533.4 mm, Head diameter 8.4 mm (all models), Base diameter 18.9 mm (all models) |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8109 two-stage foam windscreen, AT8474 universal isolation mount, AT8473 quick-mount stand adaptor, 5/8"-27 to 3/8"-16 threaded adaptor |
