dB Technologies

DVA-K5

https://www.mgmaudio.ch/web/image/product.template/2560/image_1920?unique=1d396a4

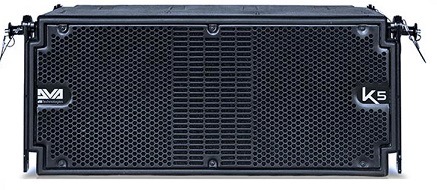

Active 3- Way 8/6½/1" Line-Array Module, 500W

CHF 1.660,50 1660.5 CHF CHF 1.660,50 IVA inclusa

CHF 1.660,50 IVA inclusa

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Kontaktieren Sie uns

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Technical Data
Speaker Type 3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB] 70 - 19,000 Hz
Max SPL One Unit: 129 dB
HF 2x1 "
Voice Coil HF 1.4 "
MF 1x 6.5 "
Type MF Neodymium
Voice Coil MF 2 "
LF 1x8 "
Voice Coil LF 2.5 "
Type LF Neodymium
Directivity (HxV) 100x15° Single unit
Amplifier
Amp Technology Digipro® G3
Amp Class Class D
RMS Power 500 W
Peak Power 1000 W
Cooling Convection
Power Supply 500 W SMPS with Auto Range PSU
Processor
Controller DSP 56 Bit
AD/DA Converter 24 bit/48 KHz
Limiter Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF 1800 Hz
Slope MF-HF 24 dB/Octave
Crossover Frequencies LF-MF 340 Hz
Slope LF-MF 24 dB/Octave
Input
Signal Input 1x XLR Balanced
Signal Output 1x XLR Balanced
Power Socket 1x PowerCON In1x PowerCON Out
Controls 1 x Input Sensitivity Rotary Switch 1 x DSP Rotary Encoder (LF Correction) 1 x DSP Rotary Encoder (MF-HF Correction)
Mechanics
Housing Polypropylene PP metal reinforced
Rigging Points Integrated rigging hardware
Width 580 mm (22.83 in)
Height 240 mm (9.44 in)
Depth 327 mm (12.87 in)
Weight 14.2 kg (31.3 lbs)
