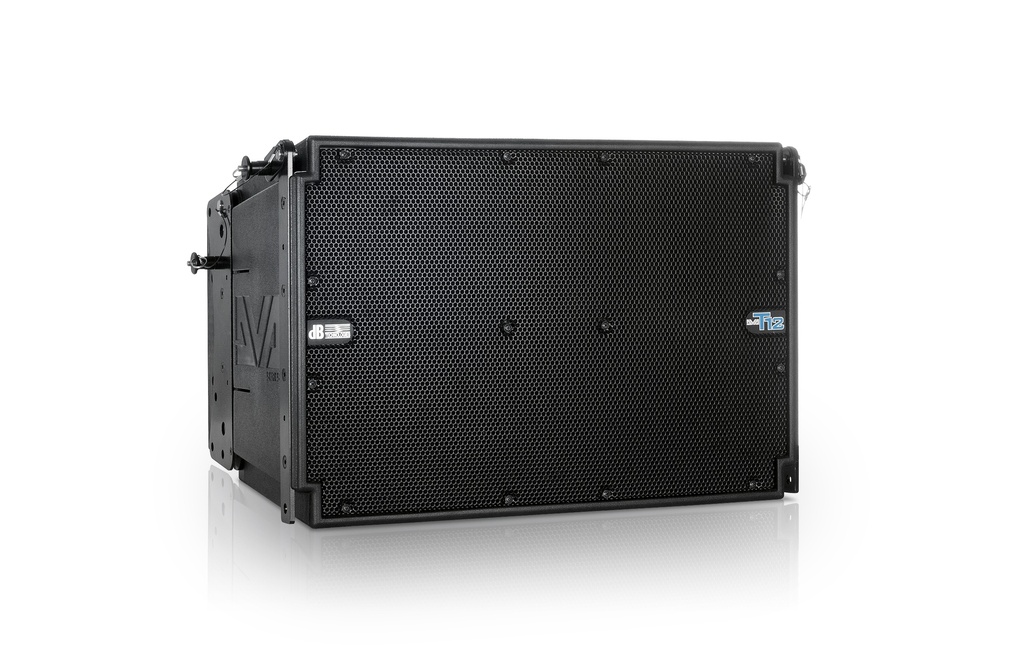

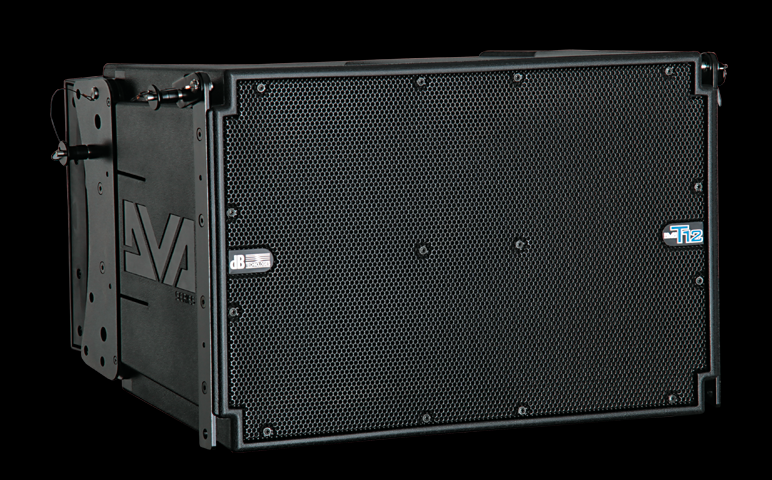

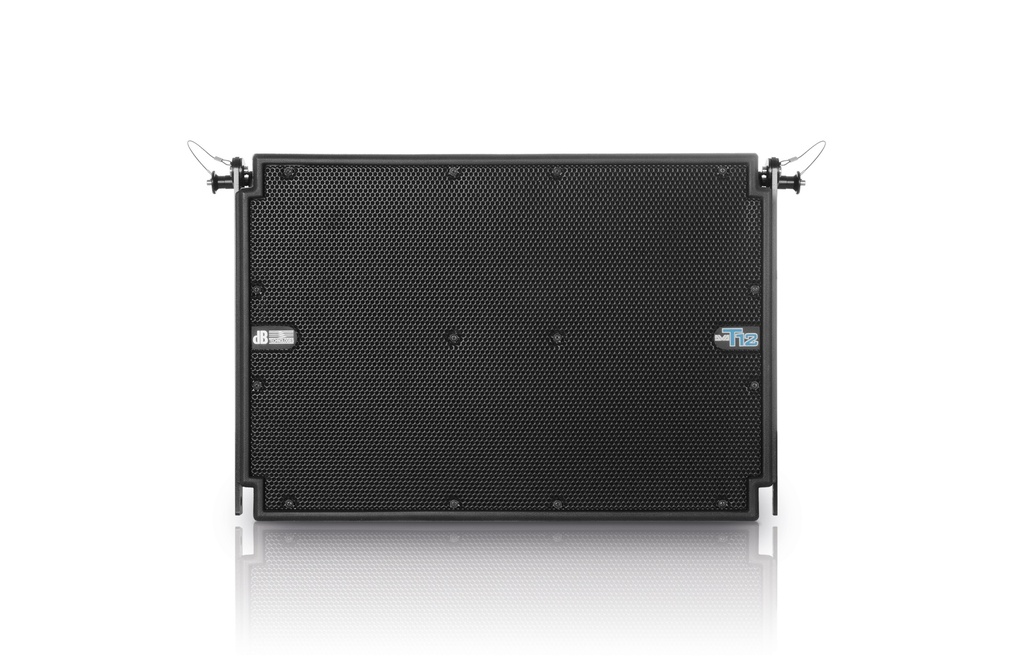

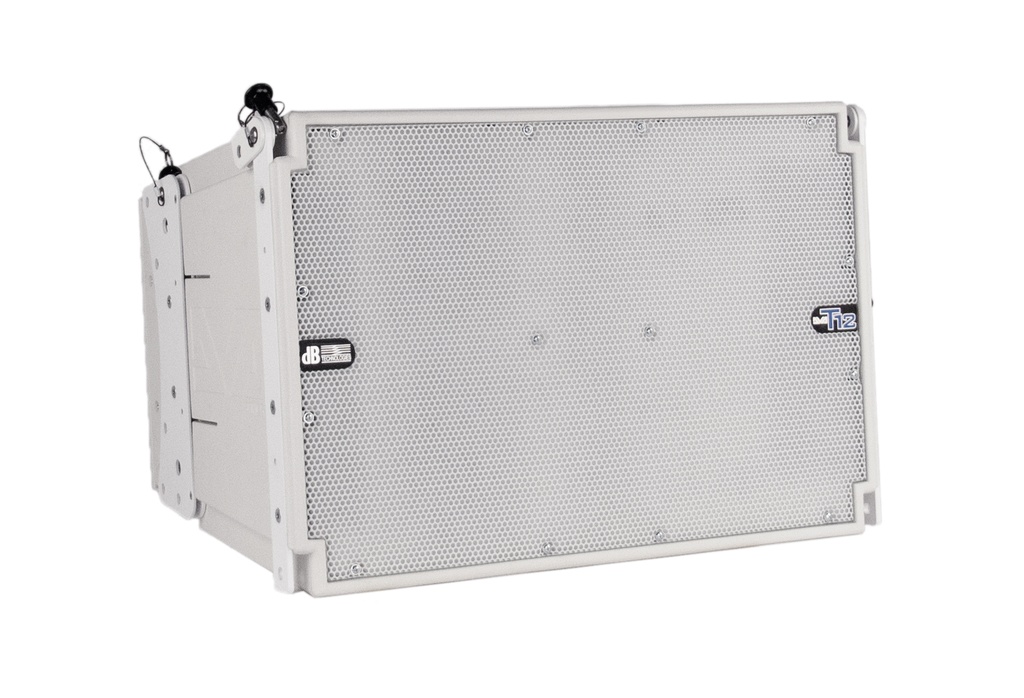

Active Line Array module 12"/6.5"/1" 1500 Watt RMS. DVA T12 is a step up the evolutionary ladder from the successful DVA T4 line array system. Although it provides more power and has greater range, its active three-way design makes it just as easy to set up and install as its predecessor.
Active Line Array module 12"/6.5"/1" 1500 Watt RMS. DVA T12 is a step up the evolutionary ladder from the successful DVA T4 line array system. Although it provides more power and has greater range, its active three-way design makes it just as easy to set up and install as its predecessor.
Technical Data
Speaker Type
3-Way Active Line Array Module
Acoustical data
Frequency Response [-6dB]
60 - 19.000 Hz
Max SPL
One Unit: 136 dB
HF
3x1 "
Voice Coil HF
1.4 "
Directivity
100x10 ° Single unit
Horn
Integrated CD Horn
MF
2x 6.5 "
Type MF
NeodymiumSealed BasketPhase PlugHorn Loaded
Voice Coil MF
2 "
LF
12 "
Type LF
Neodymium
Voice Coil LF
3 "
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
HF Amp
350 W RMS
MF Amp
350 W RMS
LF Amp
710 W RMS
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/96 kHz
System Presets
8, HF/Low-mid correction
Limiter
Dual Active LimiterMultiband RMS, Peak, Thermal
Crossover Frequency MF-HF
1800 Hz
Slope MF-HF
24 dB/Octave
Crossover Frequency LF-MF
420 Hz
Slope LF-MF
24 dB/Octave

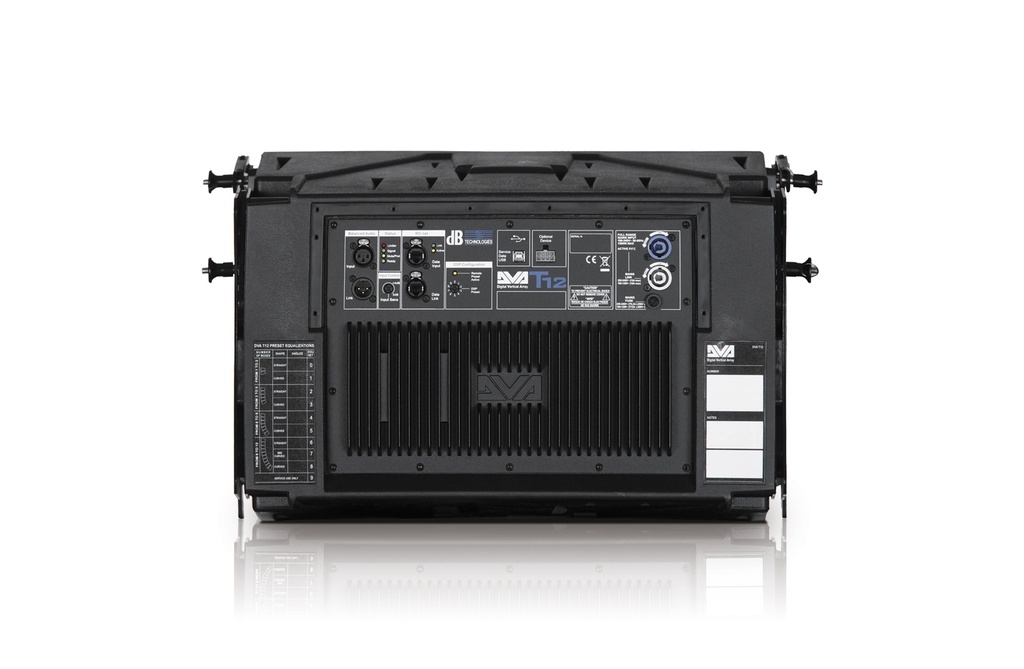

Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Network
RDnet remote control RJ45 connector IN/OUT
Power Socket
1x Powercon In1x Powercon Out
Voltage Range
90 - 240 V
Mechanics
Housing
Polypropylen PPAluminium reinforced
Housing Design
Trapezoidal 10°

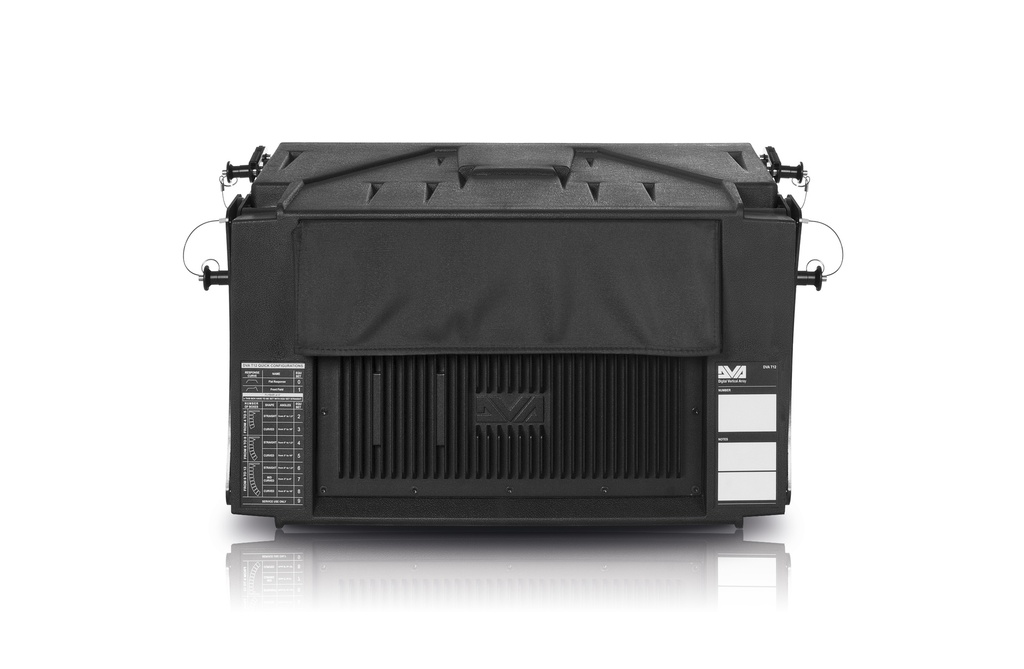

Rain Cover
Included
Rigging Points
Integrated rigging hardware
Width
580 mm (23.2 in)
Height
386 mm (15.44 in)
Depth
430 mm (17.2 in)
Weight
29,9 kg (63.93 lbs)
