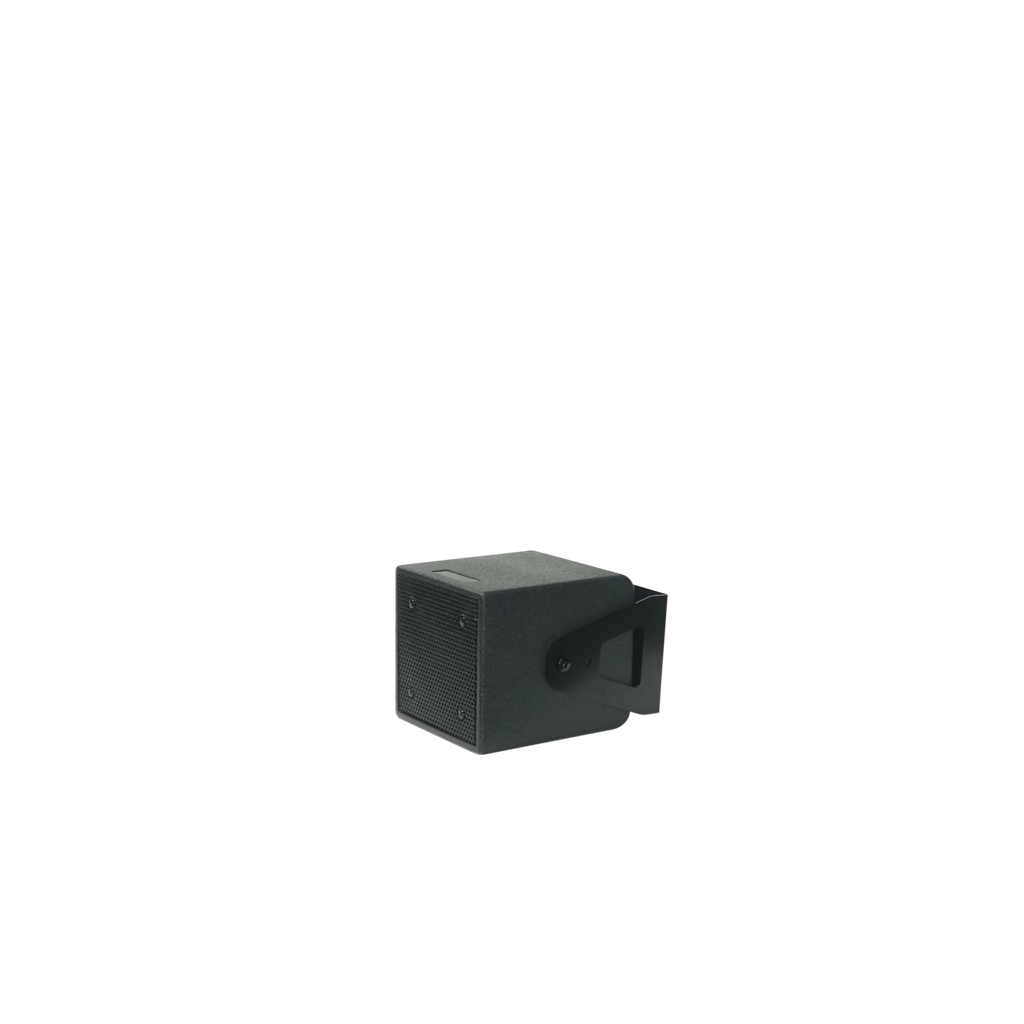

IS-4TB
Passive, 4’’ Fullrange 8ohms, 40W RMS Power
IS4T is the tiniest amidst IS series cube speakers designed for permanent installation.
Equipped with a 4" component, this is a simple compact cabinet that fit-in everywhere, essentially designed for high quality background music.
IS cube speakers install in a few minutes thanks to the dedicated bracket included in the package.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version
Technical Data
Speaker Type | Passive Fullrange Speaker |
Acoustical data
RMS Power | 40 W |
Peak Power | 160 W |
Frequency Response [-6 dB] | 110 hz - 20,000 Hz |
Impedance | 8 Ohm |
Sensitivity 1W@m | 89 dB |
Max SPL | 111 dB |
LF | 1x 4", 1 " v.c. Fullrange woofer |
Dispersion | 110x110° |
Input
Connections | Phoenix |
Mechanics
Housing | Plywood, water-painted coating |
Rigging points | 2x M6 threaded nut |
Accessories | bracket included |
IP rating | IP 32 |
Width | 130 mm (5.1 in) |
Height | 130 mm (5.1 in) |
Depth | 150 mm (5.9 in) |
Weight | 2 kg (4.4 lbs) |
