Audio Technica

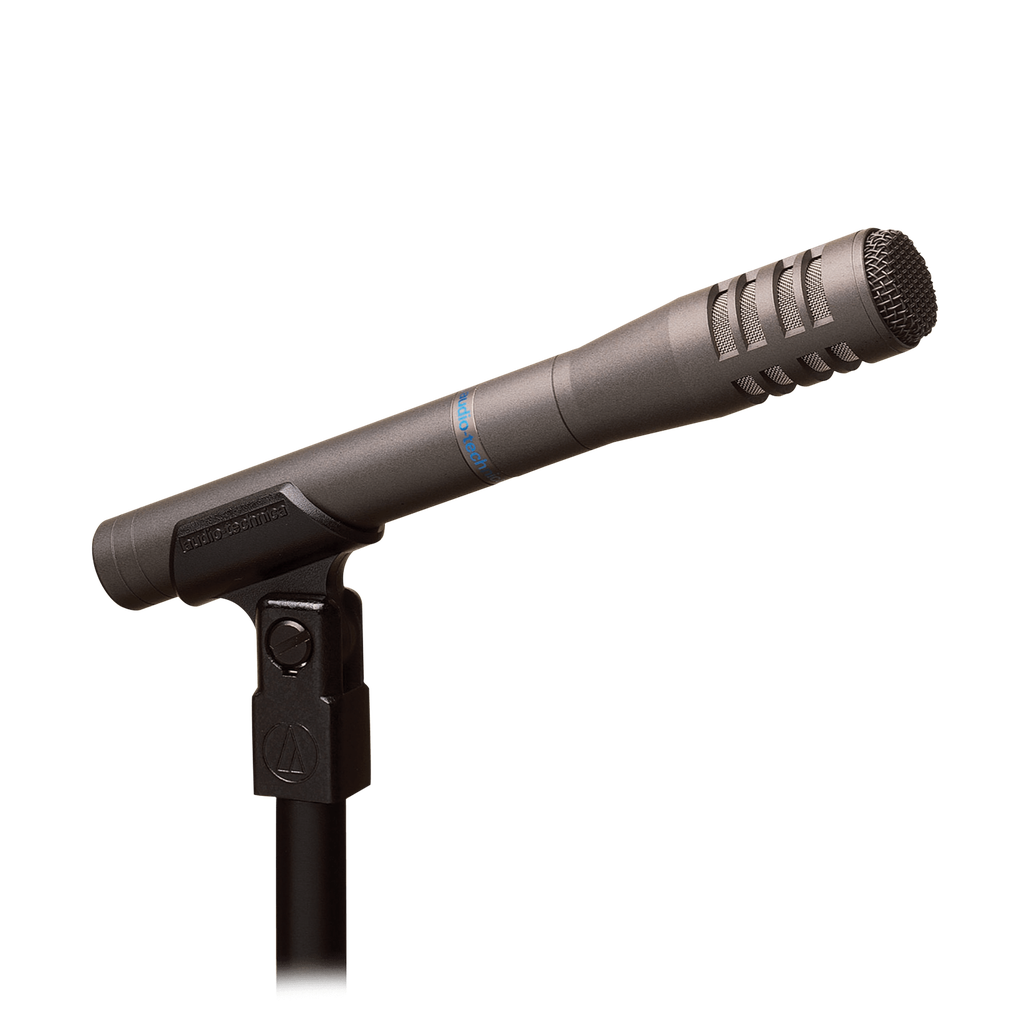

AT8033
Cardioid Condenser Microphone
Ideal for general audio acquisition such as interviews, acoustic guitar, percussion, overheads, vocals and more, the AT8033 features high-SPL capability and wide frequency response. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source. The mic excels in both studio and stage applications. It operates on battery or phantom power.
- All-purpose condenser microphone ideal for handheld interviews and general audio acquisition
- Excels in both studio and stage applications
- Outstanding linearity both on- and off-axis
- Features high SPL capability and wide frequency response
- Operates on battery or phantom power
| Microphones | |
|---|---|
| Element | Fixed-charge back plate permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 30 - 20.000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/Octave |
| Open Circuit Sensitivity | Phantom: -44 dB (6.3 mV) re 1V at 1 Pa ; Battery: -45 dB (5.6 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | Phantom: 137 dB SPL, 1 kHz at 1% T.H.D. Battery: 123 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | Phantom: 113 dB, 1 kHz at Max SPL Battery: 99 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 1200 hours typical (alkaline) |
| Switches | Flat, roll-off |
| Weight | 159 g (5.6 oz) |
| Dimensions | 194.2 mm (7.65") long, 26.0 mm (1.02") head diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; battery; soft protective pouch |
