Audio Technica
BP892XCHTH

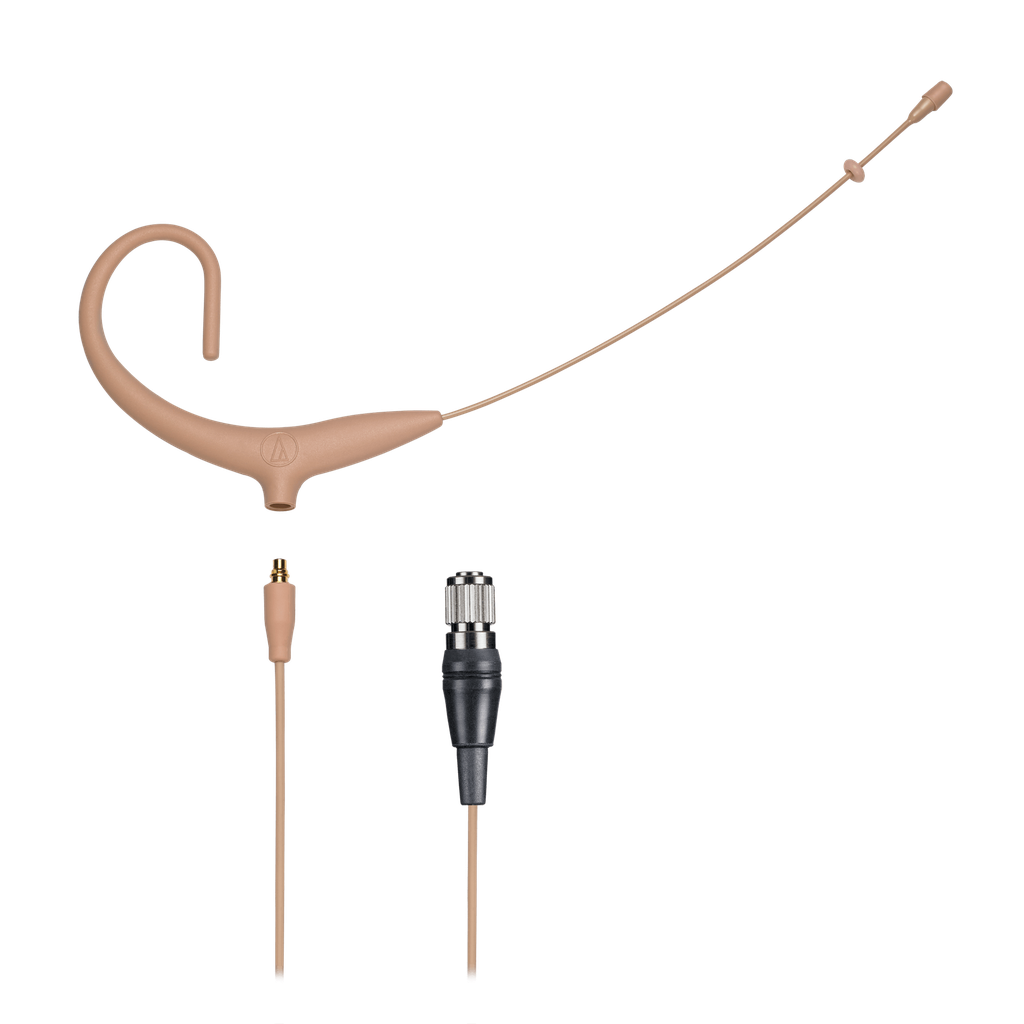

Headworn Microphone with detachble cH-style screw-down 4-pin connector, beige
- Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
- Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear design – the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
- Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
- Handles high sound pressure levels with ease
- Wired version’s power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort
- Constructed of hypoallergenic materials
| Microphone | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | –43 dB (7.2 mV) re 1V at 1 Pa |
| Output Impedance | 250 ohms (wired only) |
| Maximum Input Sound Level | 136 dB SPL, 1 kHz at 3% T.H.D. |
| Dynamic Range | 104 dB, 1 kHz at 3% T.H.D. Max SPL (wired only) |
| Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical (wired only) |
| Switches | Flat, roll-off (wired only) |
| Current Consumption | 0.2 mA typical at 5V (wireless only) |
| Voltage Range | 2.5-10V (wireless only) |
| Weight (microphone) | Microphone, boom & earpiece: 2.6 g (0.09 oz) |
| Weight (power module) | 85 g (3.0 oz) (wired only) |
| Weight | Microphone, boom & earpiece: 2.6 g Power module (wired only): 85 g |
| Cable | Detachable 1.4 m long, 1.6 mm diameter, 2- or 3-conductor shielded cable (termination dependent) |
| Dimensions | Microphone: 9.5 mm long, 2.6 mm diameter Boom: 98.5 mm long, 1.07 mm diameter Power module (wired only): 100.0 mm long, 18.9 mm diameter |
| Dimensions (power module) | 100.0 mm (3.94") long, 18.9 mm (0.74") diameter (wired only) |
| Output Connector (power module) | Integral 3-pin XLRM-type (wired only) |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8545 power module (wired only); AT8464x dual-ear adapter kit; AT8440 cable clip; AT8157 windscreen; AT8171 windscreen; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case |
| Audio-Technica Case Style | M31 |
- Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
- Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear design – the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
- Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
- Handles high sound pressure levels with ease
- Wired version’s power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort
- Constructed of hypoallergenic materials
| Microphone | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | –43 dB (7.2 mV) re 1V at 1 Pa |
| Output Impedance | 250 ohms (wired only) |
| Maximum Input Sound Level | 136 dB SPL, 1 kHz at 3% T.H.D. |
| Dynamic Range | 104 dB, 1 kHz at 3% T.H.D. Max SPL (wired only) |
| Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical (wired only) |
| Switches | Flat, roll-off (wired only) |
| Current Consumption | 0.2 mA typical at 5V (wireless only) |
| Voltage Range | 2.5-10V (wireless only) |
| Weight (microphone) | Microphone, boom & earpiece: 2.6 g (0.09 oz) |
| Weight (power module) | 85 g (3.0 oz) (wired only) |
| Weight | Microphone, boom & earpiece: 2.6 g Power module (wired only): 85 g |
| Cable | Detachable 1.4 m long, 1.6 mm diameter, 2- or 3-conductor shielded cable (termination dependent) |
| Dimensions | Microphone: 9.5 mm long, 2.6 mm diameter Boom: 98.5 mm long, 1.07 mm diameter Power module (wired only): 100.0 mm long, 18.9 mm diameter |
| Dimensions (power module) | 100.0 mm (3.94") long, 18.9 mm (0.74") diameter (wired only) |
| Output Connector (power module) | Integral 3-pin XLRM-type (wired only) |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8545 power module (wired only); AT8464x dual-ear adapter kit; AT8440 cable clip; AT8157 windscreen; AT8171 windscreen; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case |
| Audio-Technica Case Style | M31 |
