dB Technologies

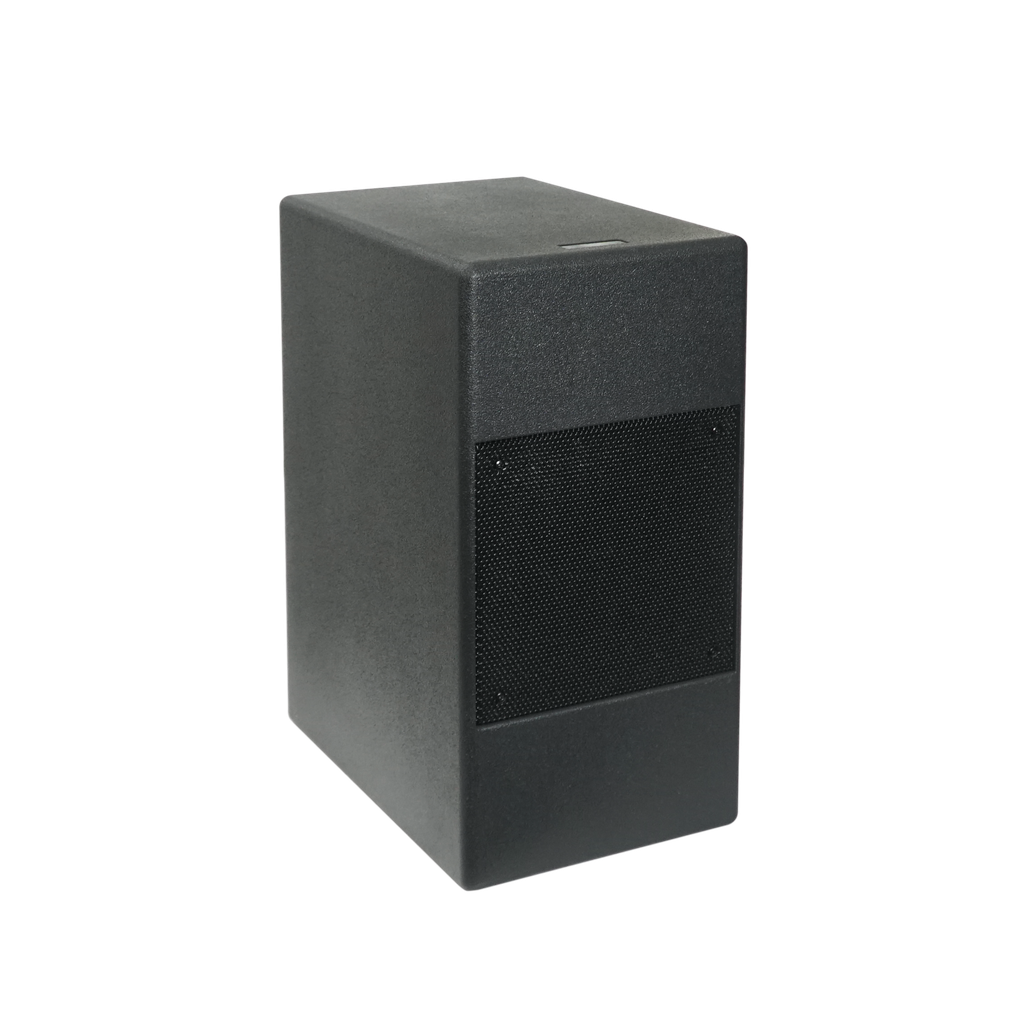

IS-8S
Passive sub, 8’’ , 8ohms, 250W RMS Power, black finish
As for the lower end, IS series is comprised of two passive subwoofers, respectively equipped with a 1x8" or a 1x12" woofer.
The compact size of both boxes is ideal when it comes to integrate a low-end extension cabinet in a venue, without dragging too much attention to it.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design, Phoenix connectors, black or white version.
Technical Data
| Speaker Type | Passive Subwoofer |
Acoustical data
| RMS Power | 200 W |
| Peak Power | 800 W |
| Frequency Response [-6 dB] | 50 Hz - custom LPF |
| Impedance | 8 Ohm |
| Sensitivity 1W@m | 87 dB |
| Max SPL | 116 dB |
| LF | 1x 8", 2" v.c. |
Input
| Connections | Phoenix |
Mechanics
| Housing | Plywood, water-painted coating |
| Rigging points | 16x M8 pickup point |
| IP rating | IP 32 |
| Width | 230 mm (9.1 in) |
| Height | 470 mm (18.5 in) |
| Depth | 330 mm (13 in) |
| Weight | 10 kg (22 lbs) |
