dB Technologies

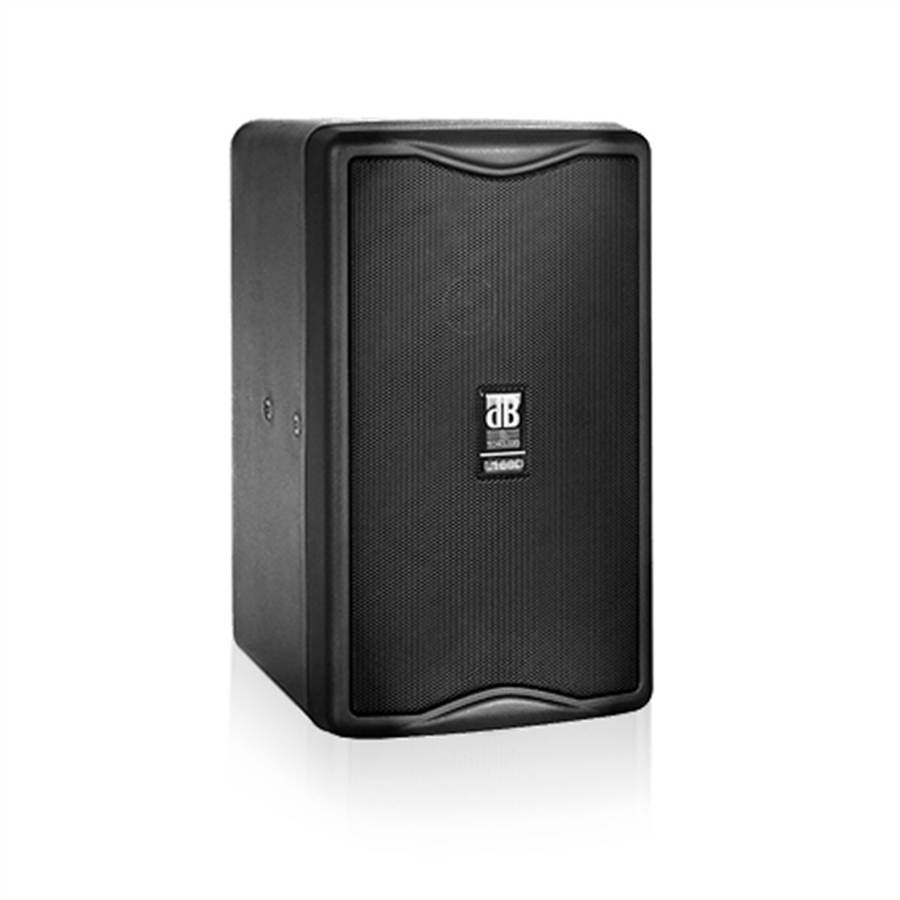

L-160D
Active 2- Way 2x5"+Tweeter, 160W RMS
Technical Data
Speaker Type | 2-Way Active Speaker |
Acoustical data
Frequency Response [-10dB] | 70 - 20.000 Hz |
Max SPL | 116 dB |
HF | 1 " |
Type HF | Dome Tweeter, coaxial |
Directivity | 85 x 75 ° |
LF | 2x 5 “ |
Amplifier
Amp Technology | digipro® |
Amp Class | Class D |
Power PRG | 160 W |
Cooling | Convection |
Processor
Controller | DSP 24bit/48kHz |
System Presets | 8 |
Limiter | Dual Active Peak, RMS, Thermal |
Input
Signal Input | 1x XLR Line In/Mic1x 6.3mm phone jack1x RCA cinch AUX with volume ctrl |
Microphone Input | YES |
Signal Output | 1x 6.3mm phone jack |
Power Socket | VDE |
Voltage Range | 110-120 - 220-240 V |
Mechanics
Housing | Polyporpylen PP |
Angles Up | Monitor use 60° |
Rigging Points | 2x M5 on side2x M5 on bottom for accessories |
Accessory | WB03, SN120 |
Width | 200 mm (7.87 in) |
Height | 335 mm (13.19 in) |
Depth | 220 mm (8.66 in) |
Weight | 5.2 kg (11.46 lbs) |
