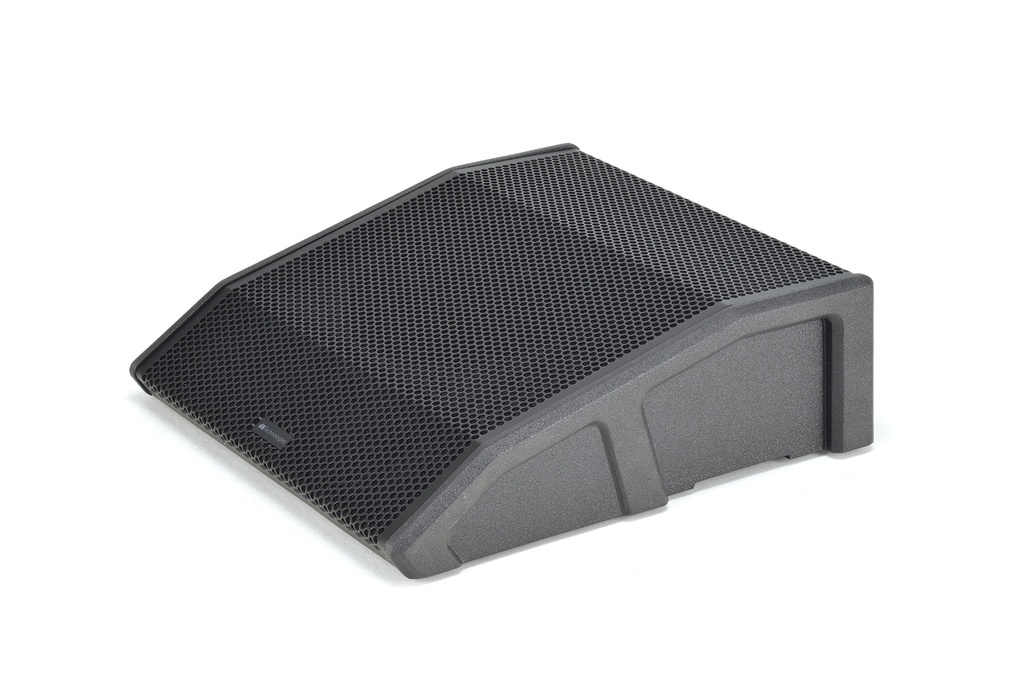

VIO-W10
Active 2- Way Stage Monitor 10"/4x4", 400W RMS, DSP Presets
This 2-way wedge is equipped with 4x4” neodymium HF speakers and 1x10” woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.
Digital Sound Processing allows a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers’ needs, choosing among 4 different options: default, close narrow, close wide, far.
VIO W10’s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.
Technical Data
Speaker Type | 2-Way Active Wedge Monitor |
Acoustical data
Usable Bandwith [- 10 dB] | 58 - 15,000 Hz |
Frequency Response [- 6 dB] | 68 - 14,000 Hz |
Max SPL | 126 dB |
HF | 4x 4" - 1" v.c. Neodymium |
LF | 1x 10" - 2.5" v.c. |
Horizontal Directivity | Dependent on Focus Preset |
Vertical Directivity | Dependent on Focus Preset |
Amplifier
Amplifier | 400 W RMS Class D Digipro® G3 |
Cooling | Convection |
Power Supply | Auto-range SMPS |
Processor
Controller | DSP 28/56 bit |
Converter AD/DA | 24 bit/48 kHz |
Limiter | Peak, RMS, Thermal |
Processing (filters) | Linear Phase FIR Filters |
Input
Signal Input | 1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service) |
Signal Output | 1xXLR male, 1x RJ45 Link (RDNet) |
Power Socket | 1x PowerCON TRUE1 In 1xPowerCON TRUE1 Out |
Controls | 1x Rotary Encoder (8 presets)1 x Input Sensitivity Encoder 1xMic /line switch 1x On LED 1x Status -LED1x Signal LED1x Limiter LED |
Mechanics
Housing | Wooden cabinet, Polyurea painting |
Handles | 1 on left side |
Width | 450 mm (17.71 in) |
Height | 165 mm (6.49 in) |
Depth | 480 mm (18.89 in) |
Weight | 13.7 kg (30.20 lbs) |
