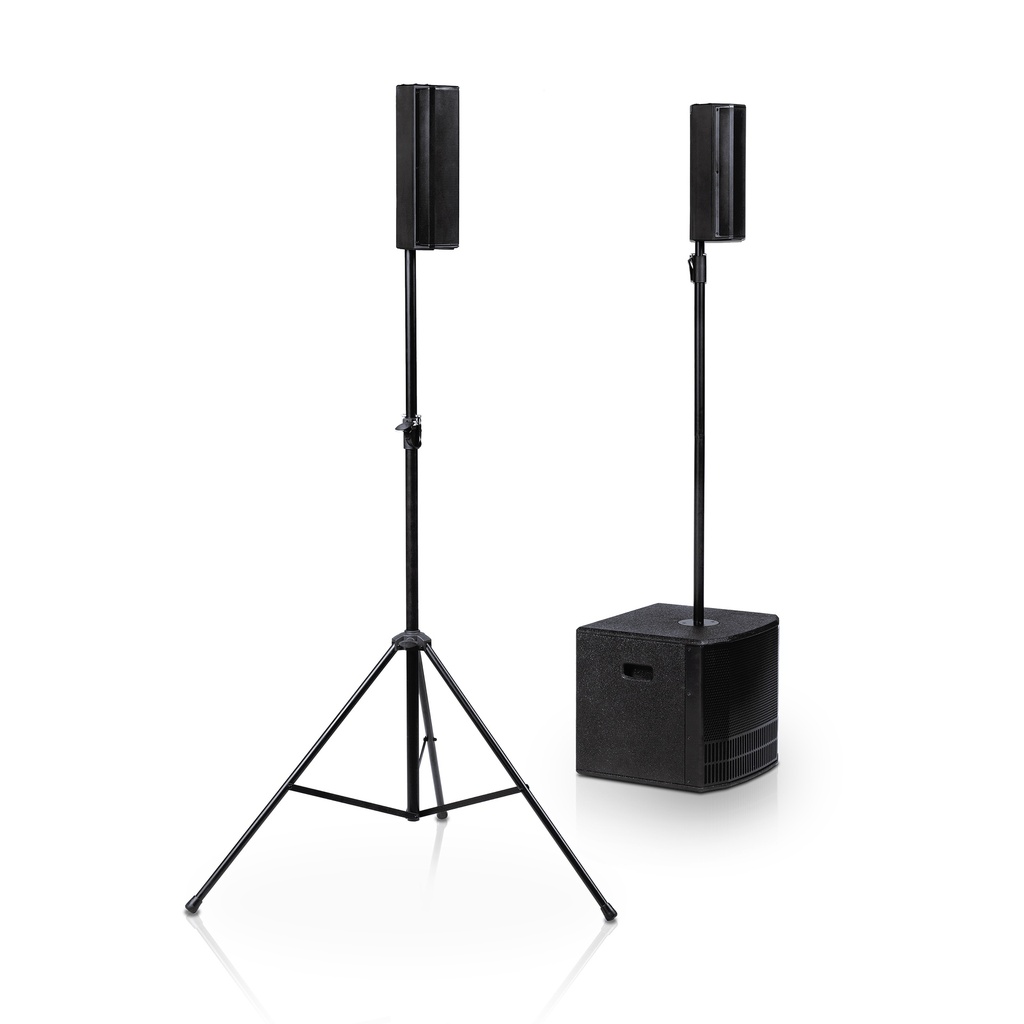

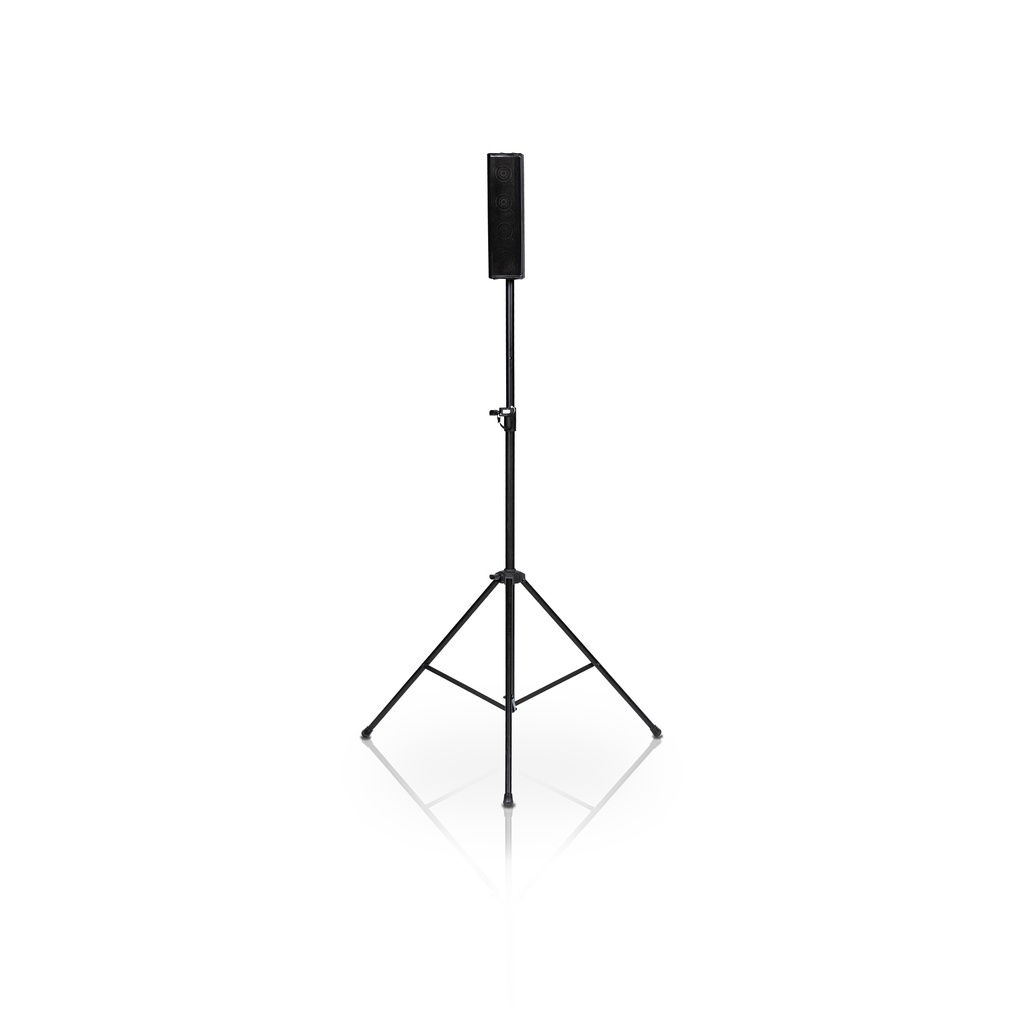

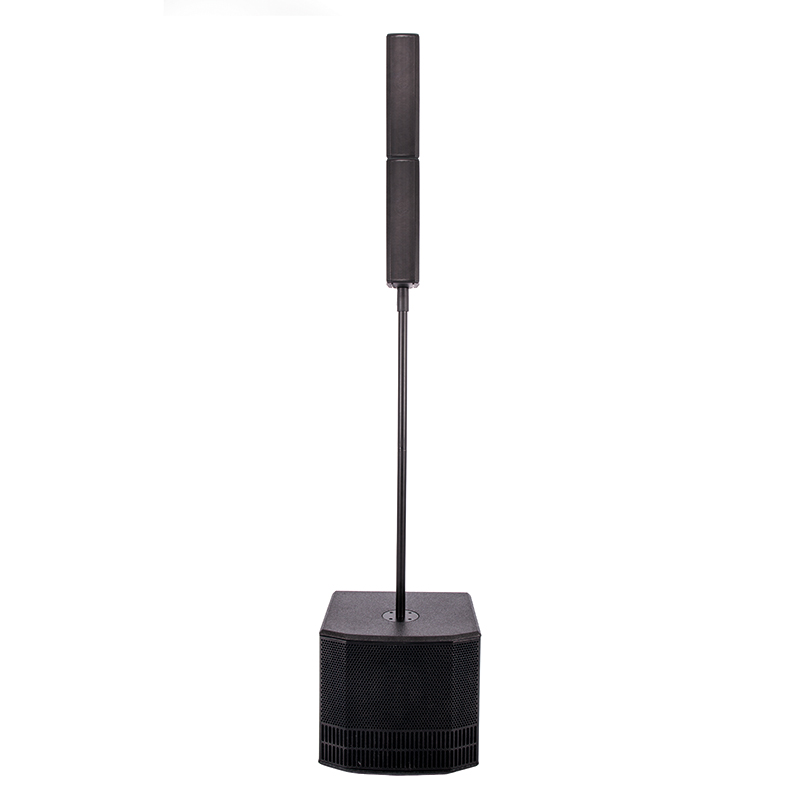

ES503 is the ultimate portable column speaker PA system. Perfect as a portable PA system for live sound as well as playback applications, ES provide a simple yet powerful plug-and-play solution for solo musicians or small bands, and is the must-have sound system in the touring DJ equipment, thanks to a built in digital mixer and a stereo Bluetooth audio receiver.
Technical Data
Speaker Type

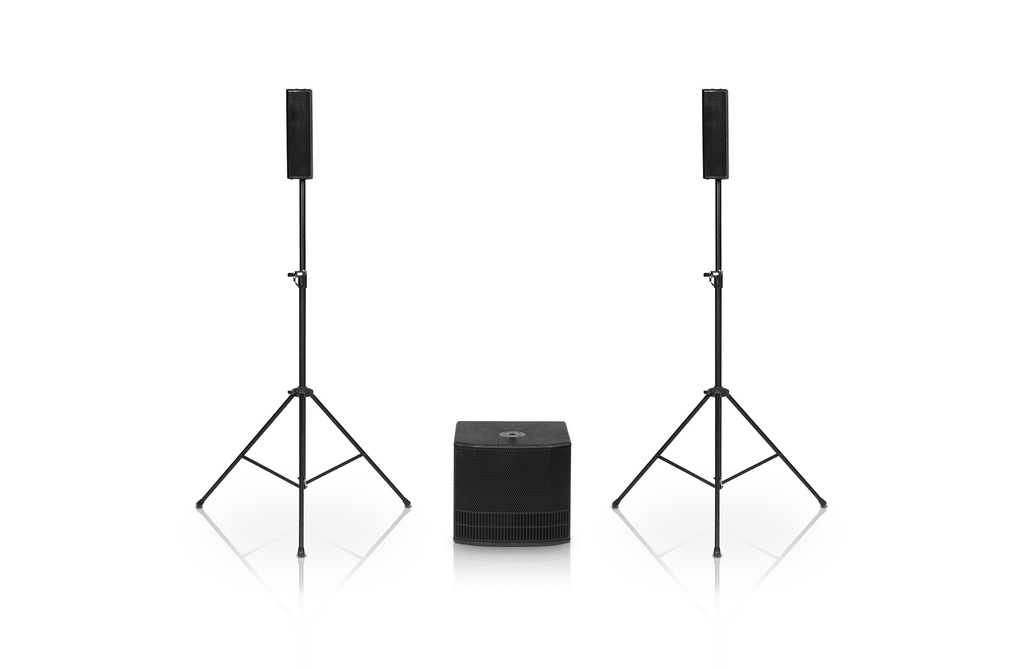

3-amped Stereo System withtwo full-range tops and one subwoofer
ES503 is the ultimate portable column speaker PA system. Perfect as a portable PA system for live sound as well as playback applications, ES provide a simple yet powerful plug-and-play solution for solo musicians or small bands, and is the must-have sound system in the touring DJ equipment, thanks to a built in digital mixer and a stereo Bluetooth audio receiver.
Technical Data
Speaker Type
3-amped Stereo System withtwo full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB]
37 - 15.000 Hz
Max SPL
121 dB

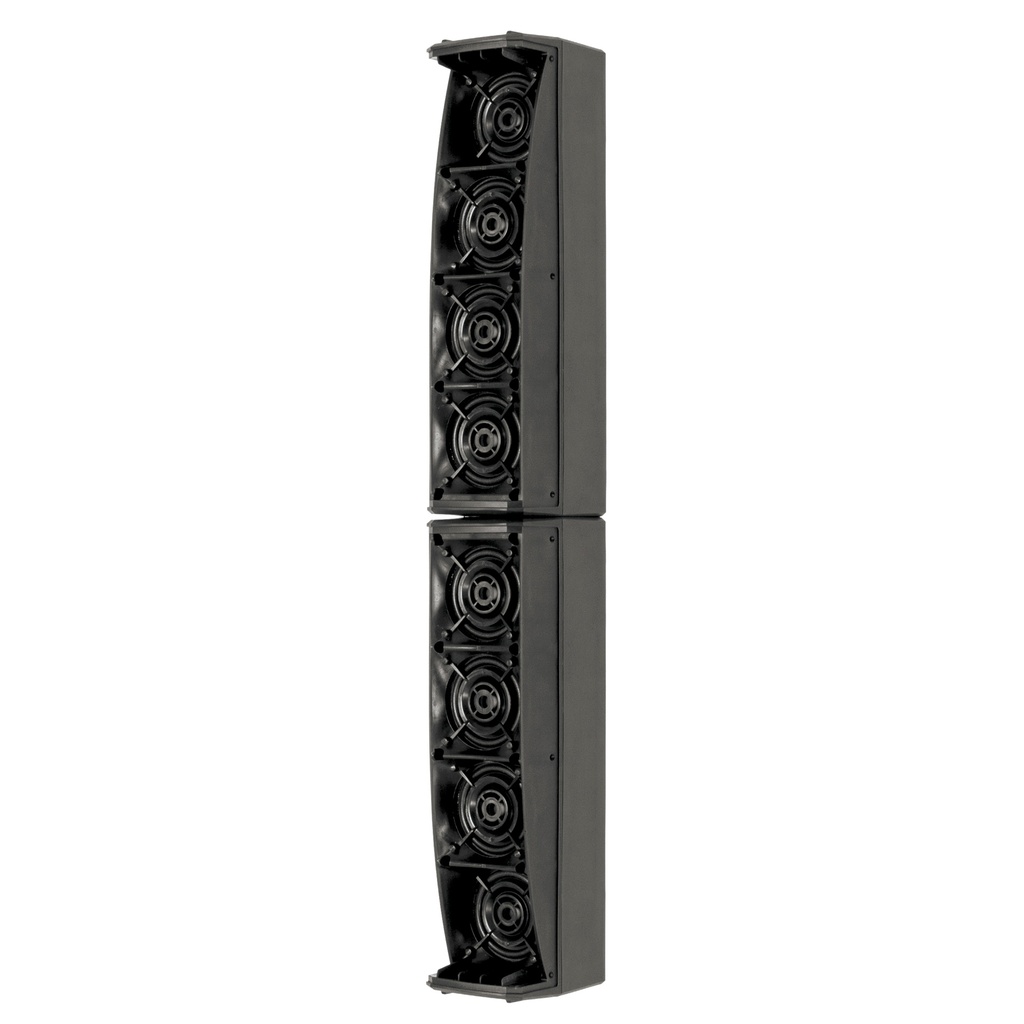

MF - HF
8x 3"
Type MF - HF
Neodymium
LF
12"
Directivity
95x65°
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class-D
Power Amp Peak
1000 W
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Factory presets + User defined
Limiter
Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF
206 Hz
Input
Mic/Instrument Channel
1x Combo (XLR/Jack) balanced/unbalanced input
Line Channels
2x Combo (XLR/Jack) balanced/unbalanced inputs
Media Channel
1x Bluetooth® built-in receiver
Mix Output
1x XLR balanced output
Mechanics

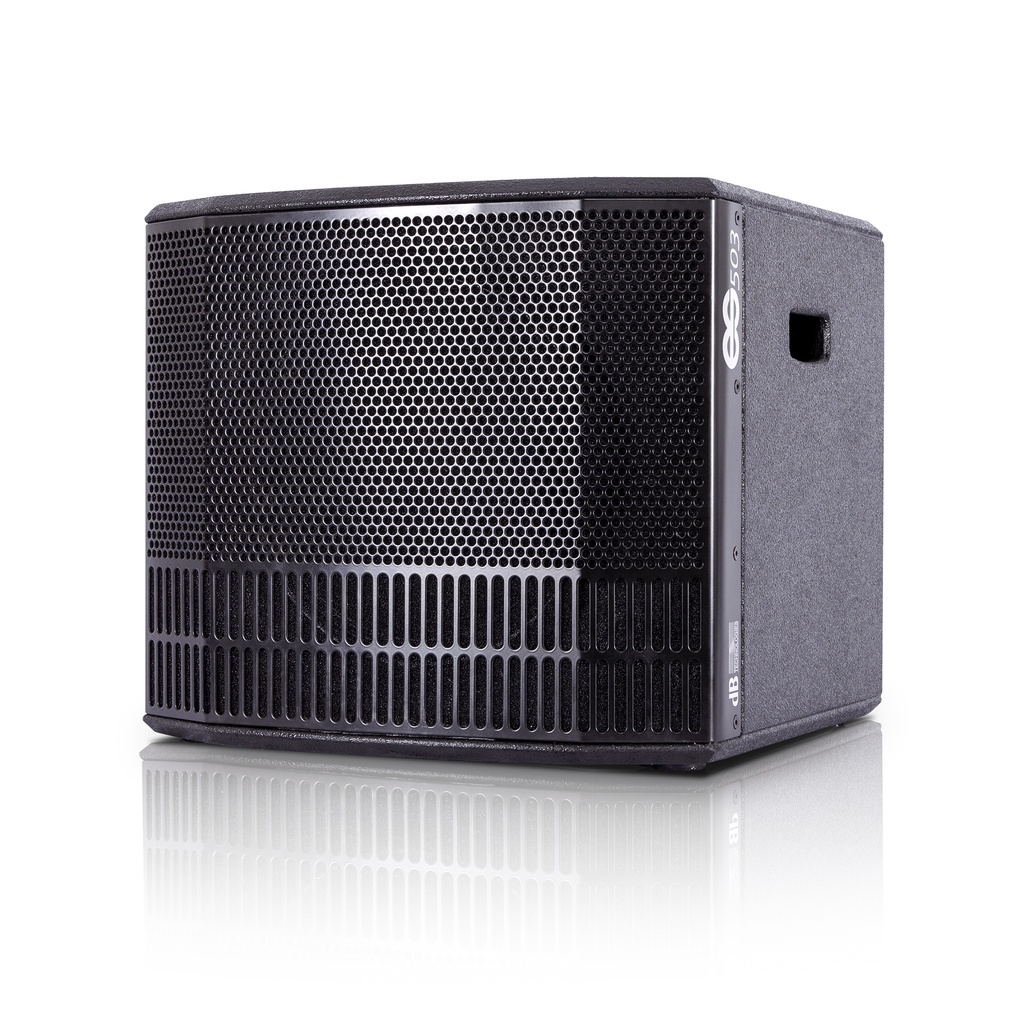

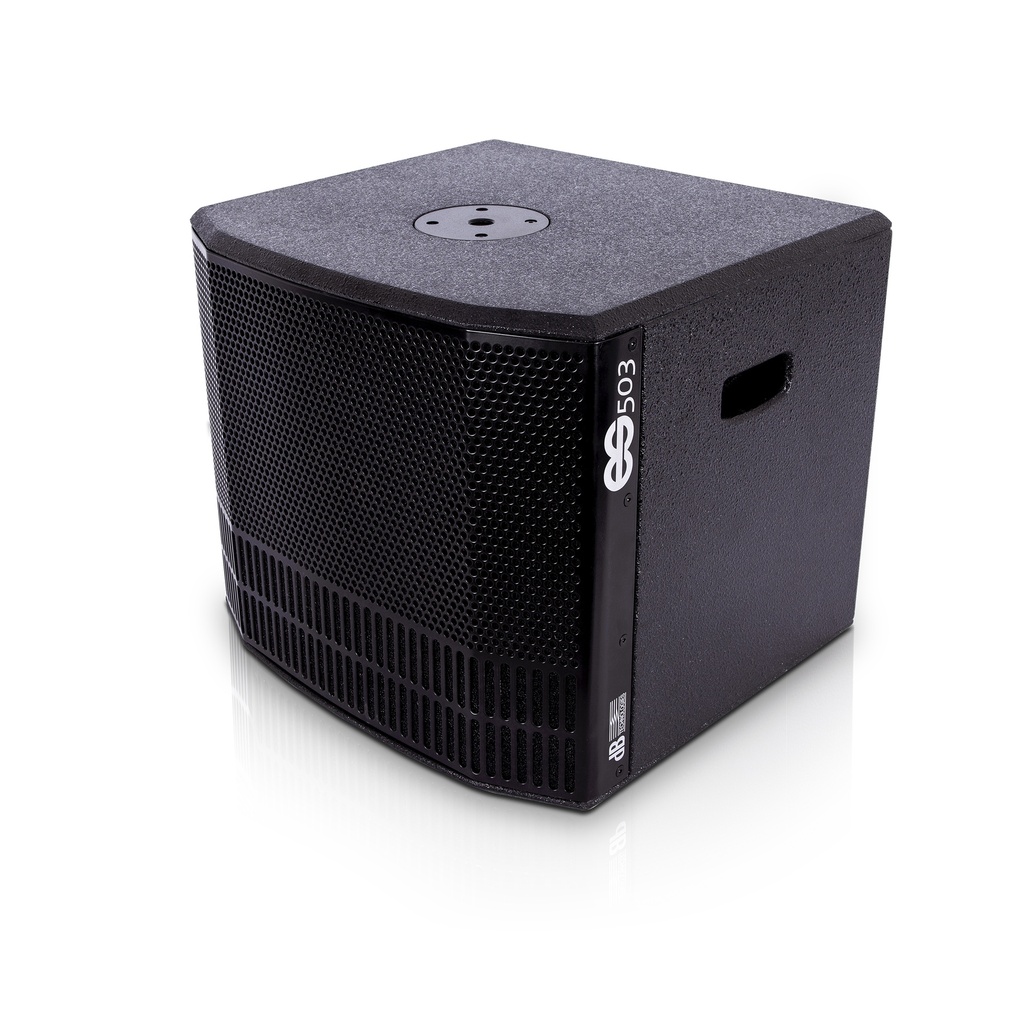

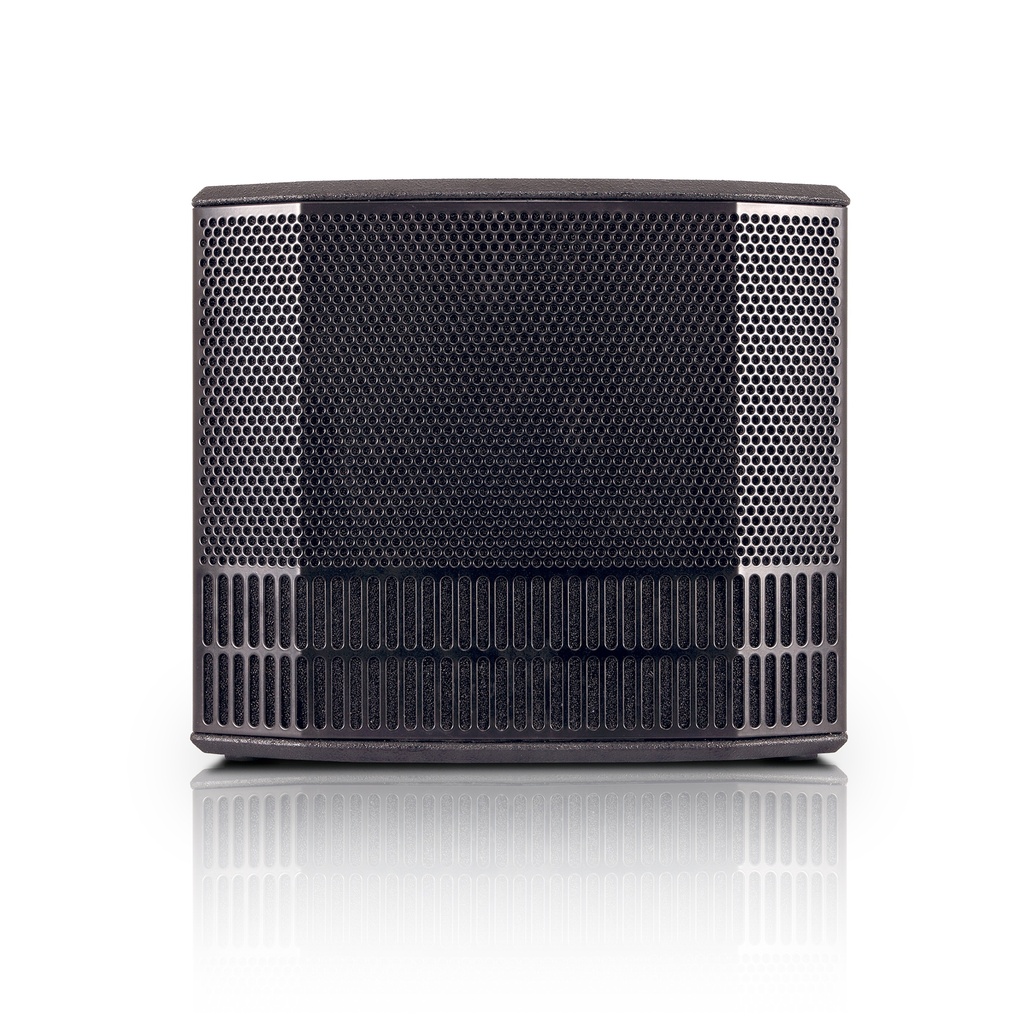

Housing (Subwoofer)
15mm Black Painted Plywood

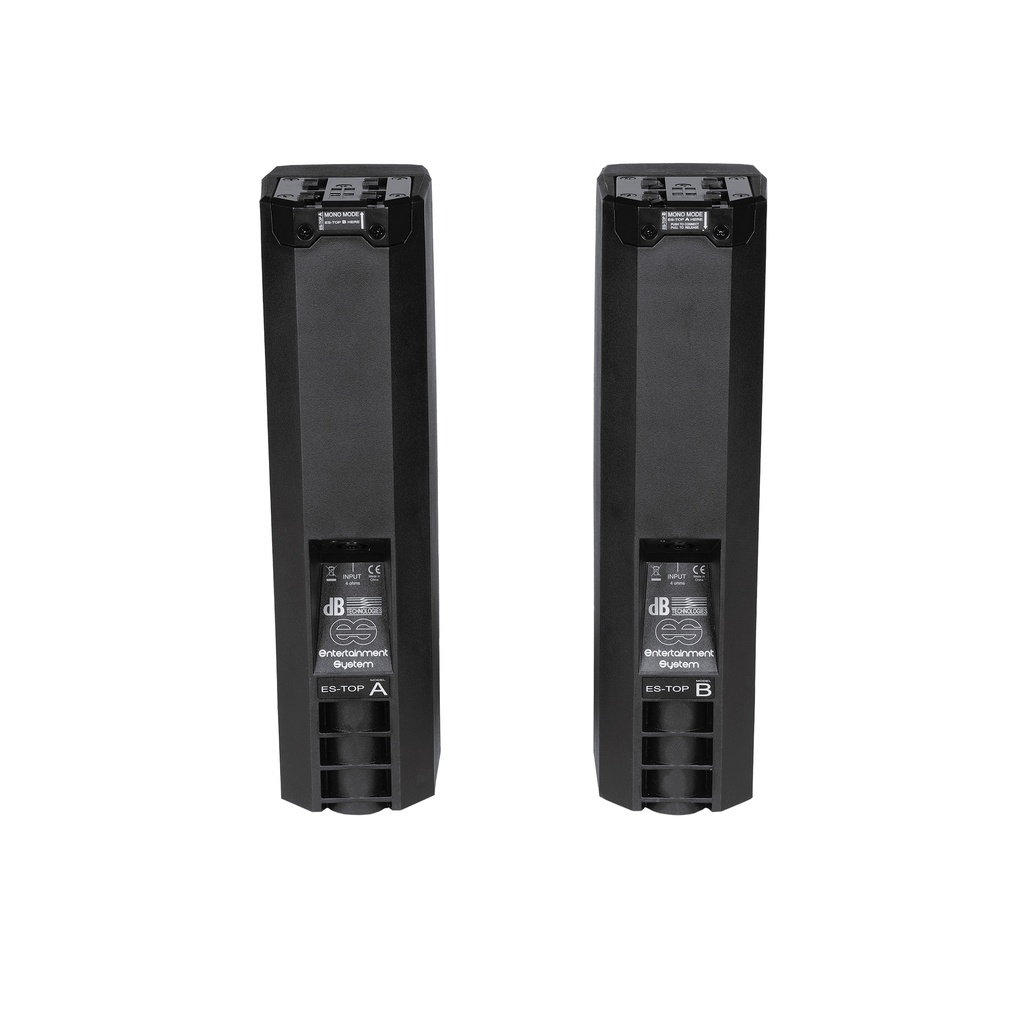

Housing (Tops)
Polypropylene PP
Handles
2x lateral side (Subwoofer)
Width (Top)
95 mm (3.74 in)
Height (Top)
360 mm (13.98 in)
Depth (Top)
137 mm (5.39 in)
Width (Subwoofer)
465 mm (18.3 in)
Height (Subwoofer)
400 mm (15.7 in)
Depth (Subwoofer)
430 mm (16.9 in)
Weight (Top)
1.9Kg – 4.19lbs.
Weight (Subwoofer)
16.4Kg – 36.16lbs.
Ihr dynamisches Snippet wird hier angezeigt ...
Diese Meldung wird angezeigt, weil Sie weder einen Filter noch eine Vorlage zur Verwendung bereitgestellt haben.
Spezifikationen
Farbe
Schwarz oder
Weiss
×
