Audio Technica
PRO35
Cardioid Condenser Clip-on Instrument Microphone
Designed for sax, toms, brass, and percussion, the PRO 35 excels in high-SPL applications and is ideal for active stage performances. Its extended frequency response captures subtle nuances of the performance. The included AT8418 UniMount® clip permits accurate positioning and provides shock resistance while protecting the element. The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
Available configurations:

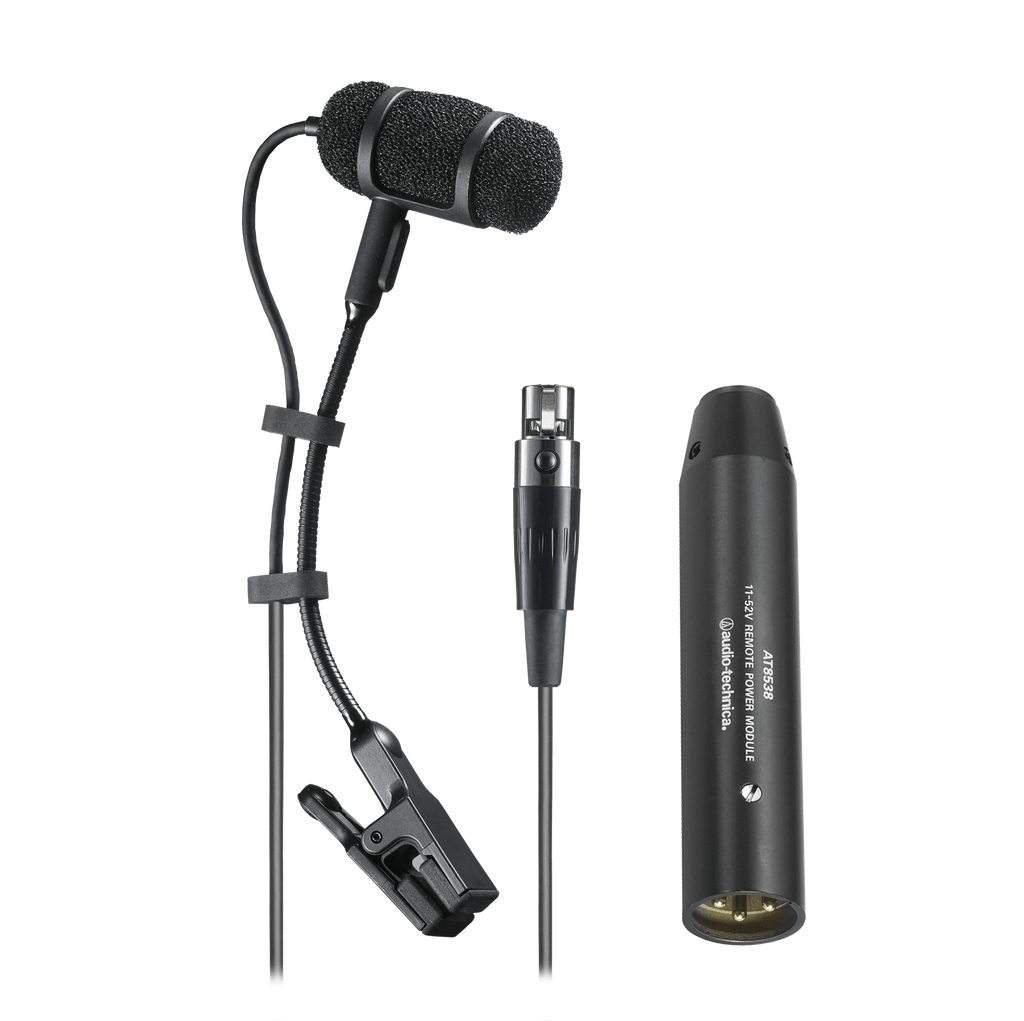

PRO 35: 6' (1.8 m) permanently attached miniature cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass filter).
PRO 35cH: 55" (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters.
PRO 35cW: 55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
- UniMount® clip permits accurate positioning, provides shock resistance and protects element
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Extended frequency response captures subtle nuances of the performance
- 6' (1.8 m) cable permanently attached to microphone
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 50-15,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | -45 dB (5.6 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 145 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 115 dB, 1 kHz at Max SPL (wired only) |
| Signal-to-Noise Ratio | 64 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical (wired only) |
| Switches | Flat, roll-off (wired only) |
| Weight (microphone) | 0.3 oz (8 g) |
| Weight (power module) | 2.9 oz (81 g) (wired only) |
| Cable | 6.0' (1.8 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor, shielded cable |
| Dimensions (power module) | 3.66" (92.9 mm) long,0.74" (18.9 mm) diameter (wired only) |
| Dimensions (microphone) | 0.98" (25.0 mm) long, 0.40" (10.2 mm) diameter |
| Output Connector (power module) | Integral 3-pin XLRM-type (wired only) |
| Accessories Included | AT8418 UniMount® microphone instrument mount; AT8538 power module (wired only); soft protective pouch |
| Audio-Technica Case Style | M12 |
