dB Technologies

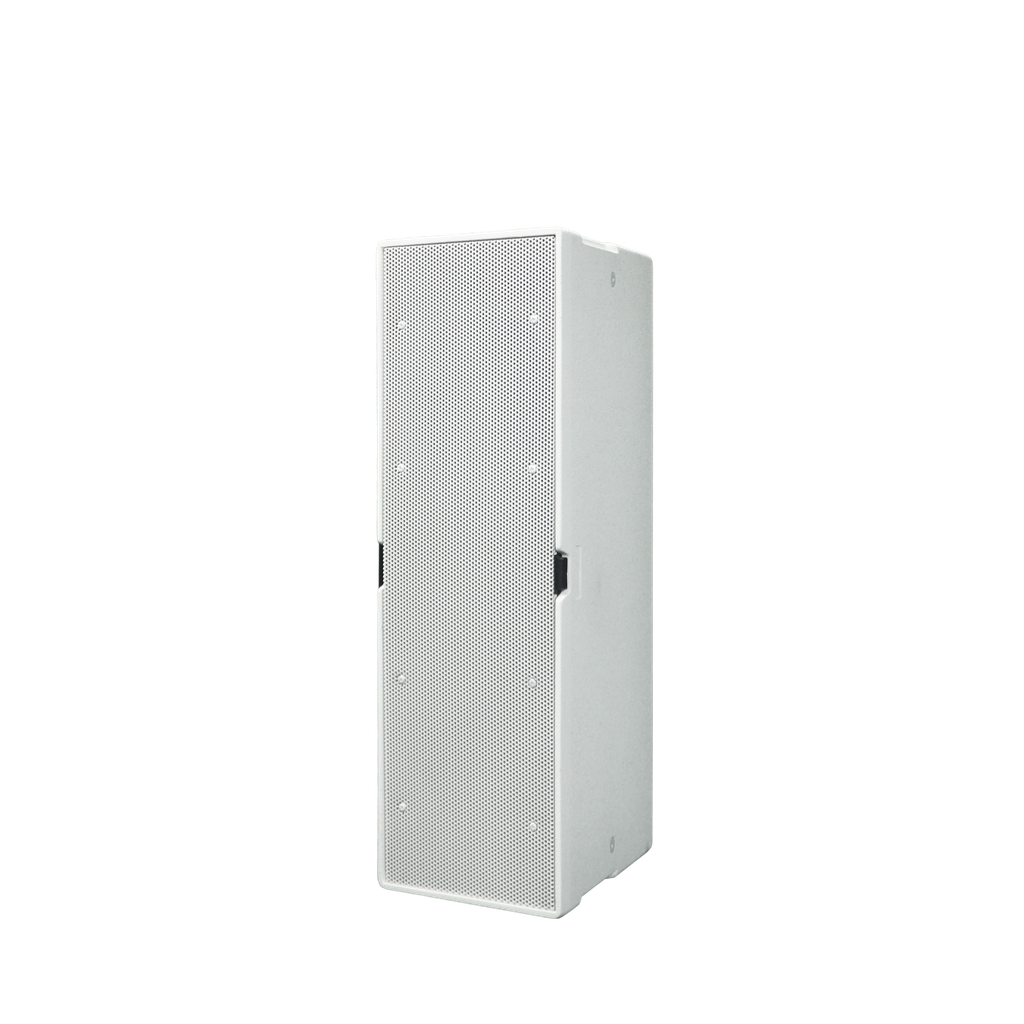

IS-26T-100W White
Passiver, 2x6.5’’driver, 8ohms, 250W RMS, 15x100°, white
IS26T is equipped with two times 6.5" woofers plus a 1" compression driver for the higher end.
2 different coverage options are available, with the two different coverage options providing respectively 60 x90° or a 100x15° dispersion pattern, which basically, thanks to a waveguide, is turning the point source speaker into a line array.
You can either fly, or stack arrays with the very same accessories you would use with the VIO X206.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version
Technical Data
| Speaker Type | Passive 2-way Speaker |
Acoustical data
| RMS Power | 250 W |
| Peak Power | 1000 W |
| Frequency Response [-6 dB] | 80 Hz - 20,000 Hz |
| Impedance | 8 Ohm |
| Sensitivity 1W@m | 94 dB |
| Max SPL | 124 dB |
| HF | 1x 1", 1.7" v.c. |
| LF | 2x 6.5", 1.7" v.c. |
| IS26T Dispersion | 60x90° [rotatable horn] |
| IS26T100 Dispersion | 100x15° [H x V] |
| X-Over Frequency | 1200 Hz (internal X-Over) |
Input
| Connections | Phoenix |
Mechanics
| Housing | Plywood, water-painted coating |
| Rigging points | 2x M10 threaded nut (top and bottom) |
| IP rating | IP 32 |
| Width | 210 mm (8.3 in) |
| Height | 650 mm (25.6 in) |
| Depth | 270 mm (10.6 in) |
| Weight | 15.5 kg (34.17 lbs) |
