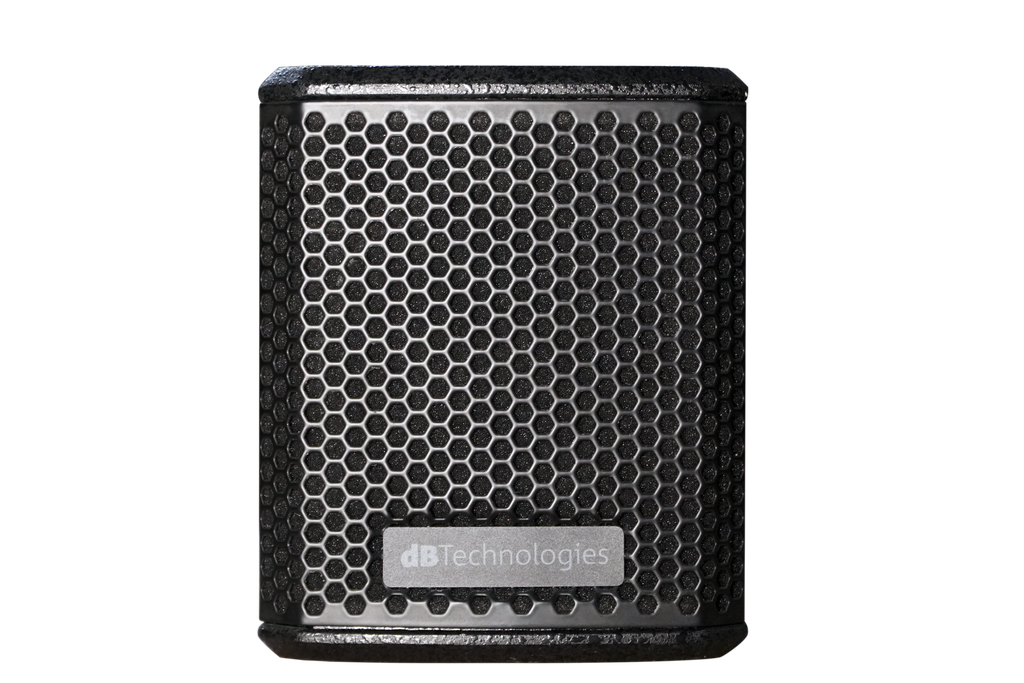

LVX P5 is a passive speaker equipped with a full-range single transducer (5” LF and 1” HF).
The most efficient acoustic design, allowing an extended coverage pattern (135°x135°) and a vigorous SPL up to 115 dB, makes this mini full range system the perfect solution to render speech or background music in small venues.The solid plywood enclosure features a clean, install-friendly design with rigging points on top and side to ease installation on ceiling or wall via the included bracket. LVX P are equipped with Phoenix connectors. 8 or 16 Ohm versions are available for use with dBTechnologies ATI amplifiers. The cabinet comes in black or white, just like all other cabinets in LVX series.
Technical Data
Speaker Type |
Full-range wooden passive loudspeaker |
Acoustical data
Impedance |
8 Ohms or 16 Ohms |
Frequency Response [-10 dB] |
100 Hz -20 kHz |
Max SPL |
115 dB |
Directivity |
135x135° |
LF |
5", 1" v.c. |
Peak Power Handling |
120 W |
Input
Connector Type |
2-pole Phoenix connector type |
Mechanics
Housing |
Plywood |
Accessories |
Wall/ceiling mounting bracket (included) |
Width |
165 mm (6.49 in) |
Height |
198 mm (7.79 in) |
Depth |
175 mm (6.88 in) |
Weight |
2.2 kg (4.8 lbs) |
