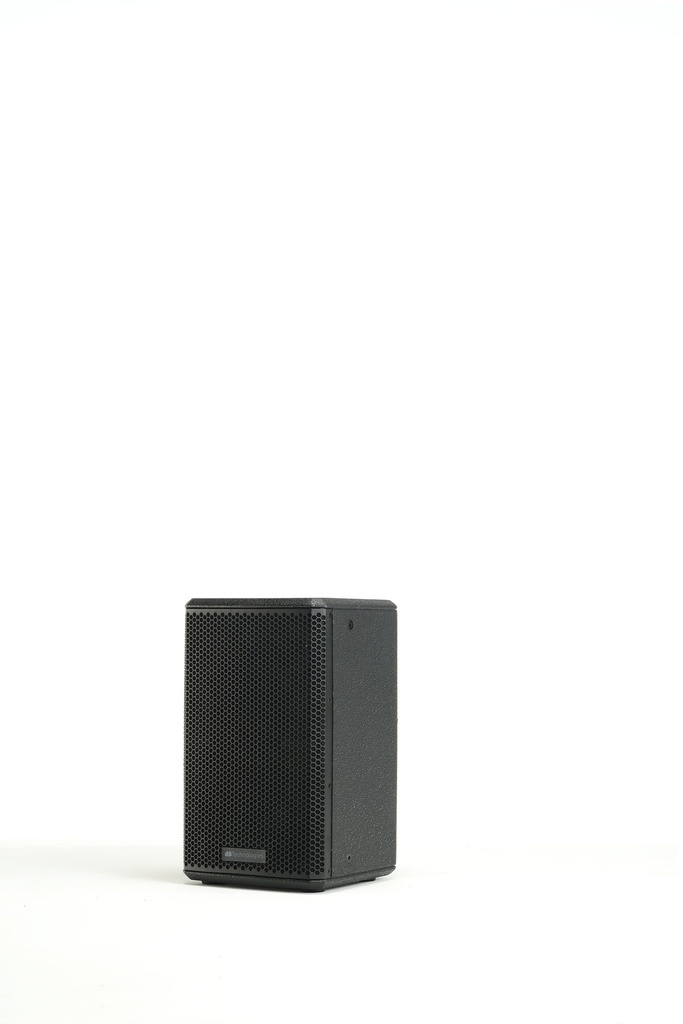

LVX-P8
Passive 2- Way, 8/1"
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P8 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP10H or vertical brackets (VB-LP810V). The cabinet features an integrated handle on back side and a 36 mm pole mount plate. All enclosures and accessories of LVX P series are available in black or white version.
Technical Data
Speaker Type | 2-Way Passive Speaker |
Acoustical data
Peak Power | 400 W |
Impedance | 8 Ohms |
Frequency Response [- 10 dB] | 74 - 18.000 Hz |
Max SPL | 122 dB |
HF | 1 “, 1" v.c. |
Directivity | 90x70° |
Horn | Rotatable |
LF | 8 “, 1.5" v.c. |
Input
Signal Input | 1x Speakon (Pin 1+=+) (Pin 1-=-) |
Signal Output | 1x Speakon (Pin 1+=+) (Pin 1-=-) |
Mechanics
Housing | Plywood |
Pole Mount | 36 mm |
Angle Up | Monitor use 40° |
Rigging Points | 12 x M8 |
Handles | 1 on back side |
Width | 255 mm (10.03 in) |
Height | 426 mm (16.77 in) |
Depth | 258 mm (10.15 in) |
Weight | 8.1 kg (17.8 lbs) |
