dB Technologies

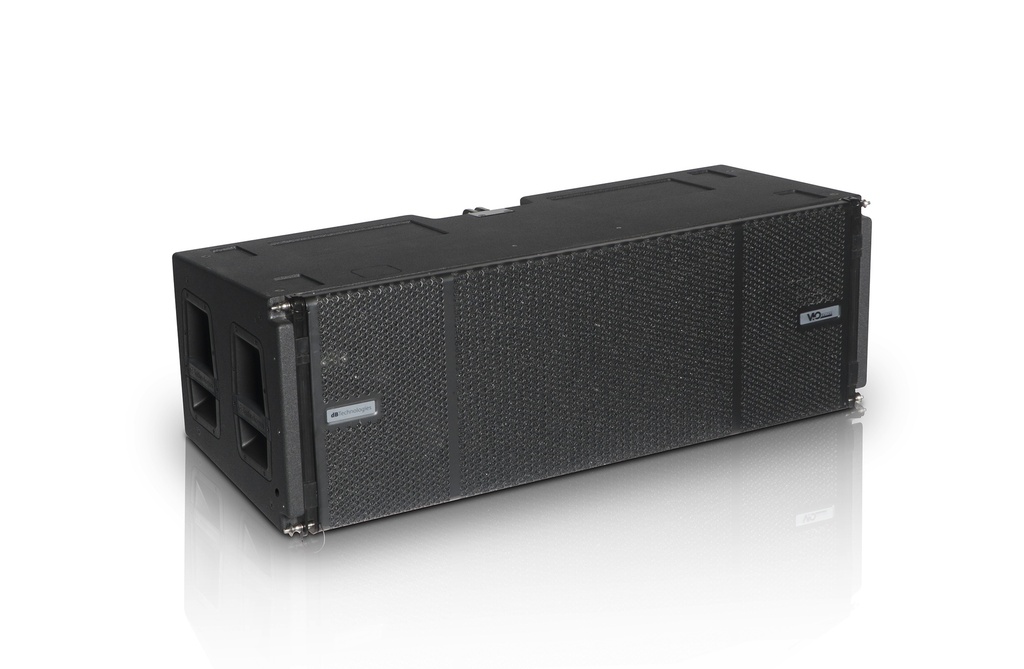

VIO-L212
Active 3- Way, 2x12"/4x6.5"/2x1.4", 3200W RMS, 90 x10°
IMPRESSIVE BREATHTAKING
VIO L212 is the first dBTechnologies’ full scale line array module designed for large touring sound reinforcement applications, concurrently providing mighty output capability and optimized coverage behaviour. dBTechnologies was able to pack great sound pressure levels into one of the most compact and lightest active 2x12” line array systems.
Technical Data
| Speaker Type | 3-way Active Line Array Module |
Acoustical data
| Usable Bandwidth [- 6 dB] | 55-18,600 Hz |
| Max SPL | 142 dB One Unit |
| HF | 2 x 1.4" |
| Voice Coil HF | 3" |
| Type HF | Neodymium, Titanium Diaphragm |
| MF | 4 x 6.5" |
| Voice Coil MF | 2" |
| Type MF | Neodymium Aluminium Phase Plug |
| LF | 2x12" |
| Voice Coil LF | 3.0" |
| Type LF | Neodymium Aluminium Phase Plug |
| Horizontal Directivity | 90° |
| Vertical Directivity | depends on array size and configuration |
Amplifier
| Amp Technology | 2 x Digipro G4 [bi-amped] |
| Amp Class | Class-D |
| Power RMS | 2 x 1600 W |
| Peak Power | 2 x 3200 W |
| Cooling | Convection, internal fan |
| Power Supply | Full-range SMPS with PFC (100V~-240V~, 50-60Hz) |
Processor
| Controller | DSP 32 bit |
| AD/DA Converter | 24 bit/96 KHz |
| Limiter | Dual Active Multiband Peak, RMS, Thermal |
| Processing (filters) | FIR Linear Phase |
Input
| Signal Input | 1xXLR fem, Bal. |
| Signal Output | 1xXLR male, Bal. |
| Network | RDNet remote control RJ45 connector IN/OUT, DANTE Card optional |
| Power Socket | 1xPowerCon TRUE1 IN 1xPowerCon TRUE1 Out |
| Controls | 1xSpeakers Coupling (7 presets)1x HF Compensation (8 presets)1XInput Attenuation Rotary Switch, 1 x System Test Button |
| Special Features | NFCTM and Frontal LED Identification System 380V Resistant SMPS IPOS Intelligent Power-On Sequence Opto-isolated floating pre-amp System Test (transducers diagnostics) Inclinometer |
Mechanics
| Housing | Multiplex Plywood Polyurea painted |
| Housing Design | Trapezoidal |
| Handles | 4x handles (2 on each side) |
| Rain Cover | Included (rubber Magnetic) |
| Rigging Points | 3 points Integrated rigging hardware |
| Width | 1100 mm (43.31 in) |
| Height | 380 mm (14.96 in) |
| Depth | 450 mm (17.72 in) |
| Weight | 54.4 Kg (119.93 lbs) |
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
