dB Technologies

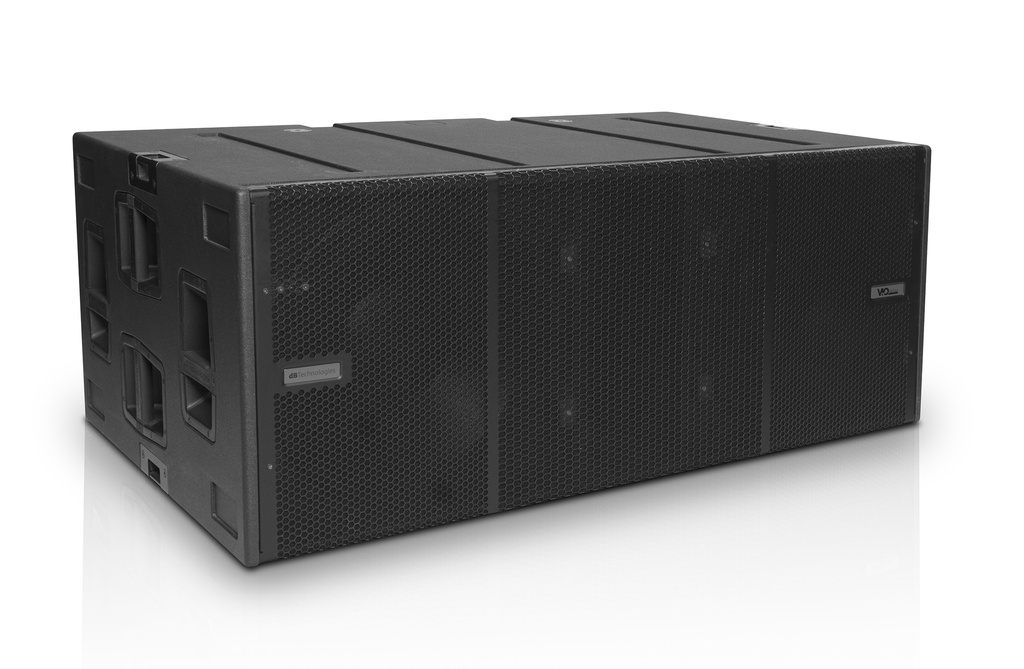

VIO-S218
Active, Sub, 2x18", 3200W RMS
BASS-REFLEX POWER
The perfect partner for VIO L212 in larger sound reinforcement applications. A simple, effective dual sub configuration designed to enhance the reproduction of the lowest frequencies, boosted by an advanced DSP control and complete network capability.
Real time control
As a default, VIO S218 is equipped with dBTechnologies RD-Net card, for real time remote control via Aurora Net software.
Furthermore, the preamplifier is ready for future upgrades with Audinate DanteTM AoIP protocol. To help users in this configuration, S218 comes with built-in technologies: Near Field Communication (NFC™) proximity sensors are used to determine the position of each box within an array. This technology, together with a hi-brightness LED bulb on the front of the enclosure, contributes to help the user to recognize, identify and match each box physical position on the remote control software Aurora Net.
The amp also allows users to run auto-test on electronics and transducers before and after use and a real time impedance control. This unique system ensure tour-grade reliability and remote control over your entire PA’s health.
CARDIOID PRESET
A cardioid stack preset button automatically process the sound of the backward sub in gradient inverted stack configurations, in order to reach maximum cancellation of the rear side.
The on-board delay module allows VIO S218 to reach a max 9.9ms delay with 0.1 ms steps.
Technical Data
| Speaker Type | Flyable Active Bassreflex subwoofer |
Acoustical data
| Frequency Response [- 10 dB] | 27 Hz (HPF) |
| Frequency Response [- 6 dB] | 28 Hz to cut frequency (Xover dependent) |
| Max SPL | 143 dB |
| LF | 2x18” Neodymium |
| Voice Coil LF | 4” |
| Directivity | Omnidirectional |
Amplifier
| Amplifier | 3200 W RMS [2x 1600 W RMS Class-D Digipro® G4] |
| Cooling | Passive convection, internal fan |
| Power Supply | Full-range SMPS with PFC (100V~-240V~, 50-60Hz) |
Processor
| Controller | DSP 32 bit |
| AD/DA Converter | 24 bit/96 kHz |
| Limiter | Peak, RMS, Thermal |
| Delay Option | 0 - 9.9 ms internal | steps of 0.1 ms [on-board] |
| Crossover Frequency LF-HF | Selectable 60-110 Hz + Full Range (8 steps) |
| LF-Xover out slope | 24 dB/Octave |
Input
| Signal Input | 1x XLR balanced1x USB Data Service |
| Signal Output | 1x XLR balanced |
| Network | RDNet Card (1x RJ45 IN 1x RJ45 Link)Dante Card [Optional] |
| Power Socket | 1x PowerCON TRUE1 In1x PowerCON TRUE1 Out |
| Controls | 1x Input Attenuation Rotary Encoder2x Delay Rotary Encoder (0-9.9 ms)1x Polarity Inversion Switch (0° or 180°)1x Cardioid mode Switch1x X-Over Frequency Rotary Encoder (8 steps) |
| Special Features | NFCTM and Frontal LED Identification System380V Resistant SMPSIPOS Intelligent Power-On SequenceOpto-isolated floating pre-ampSystem Test (transducers diagnostics) |
Mechanics
| Housing | Multiplex plywood - Polyurea painting |
| Handles | 2x Side. Aluminium |
| Raincover | Included |
| Rigging Points | side integrated rigging hardware, 2x Pick Points on top for DRK-210 rigging frame |
| Width | 1300 mm (51.18 in) |
| Height | 520 mm (20.47 in) |
| Depth | 800 mm (31.5 in) |
| Weight | 100 kg (220 lbs) |
