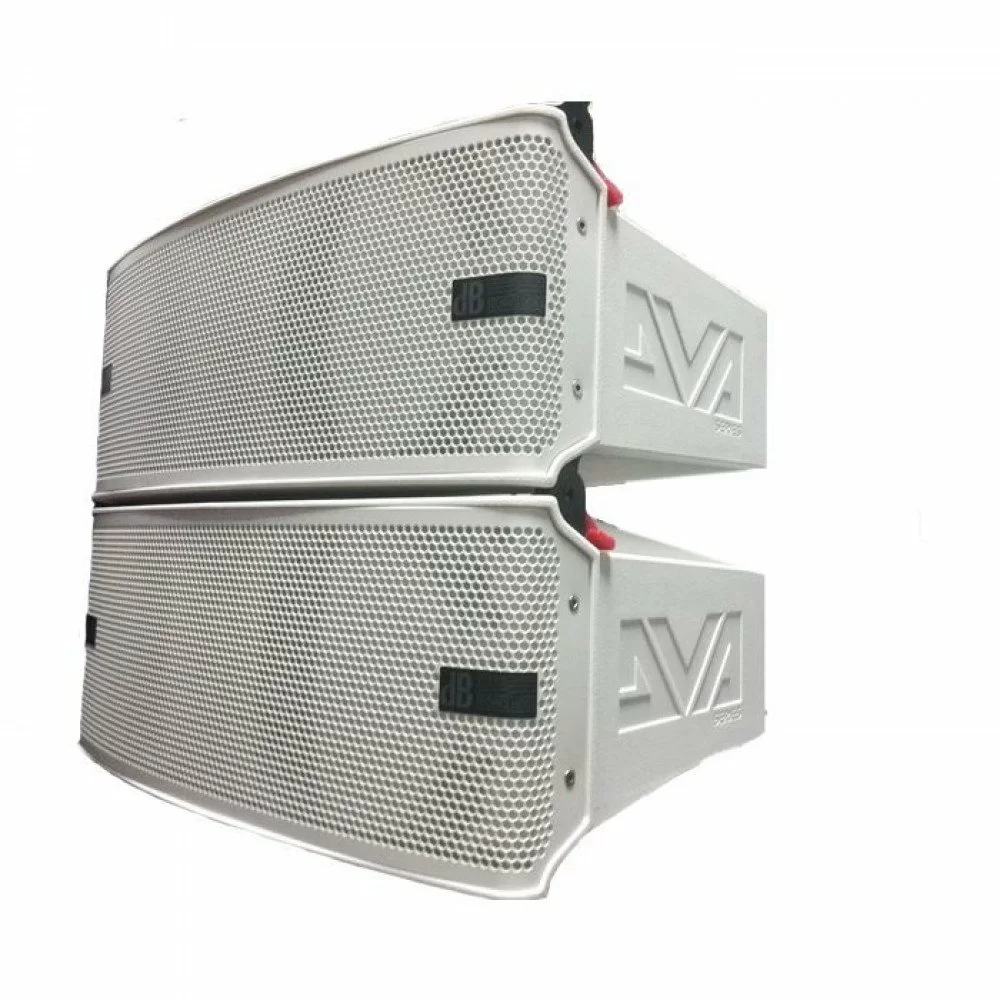

Technical Data
| Speaker Type M2M | 2-Way Active Master Line Array Module |
| Speaker Type M2S | 2-Way Slave Line Array Module |
Acoustical data
| Frequency Response [-6dB] | 78 - 19.000 Hz |
| Frequency Response [-10dB] | 68 - 20.000 Hz |
| Max SPL | 126 dB per unit |
| HF | 2x1" |
| Type HF | Neodymium |
| Voice Coil HF | 1" |
| LF | 2x6.5" |
| Type LF | Neodymium |
| Voice Coil LF | 1.5" |
| Directivity | 90x15° |
Amplifier
| Amp Technology | Digipro® G3 |
| Amp Class | Class D |
| RMS Power HF Amp | 200 W (100 W + 100 W) |
| RMS Power LF Amp | 200 W (100 W + 100 W) |
| Cooling | Convection |
Processor
| Controller | DSP 56 bit |
| AD/DA Converter | 24 bit/48 kHz |
| System Presets | 9 presets (8x HF and Low-Mid corrections and 1x for service use) |
| Limiter | Multiband, RMS/Peak, Thermal |
| Crossover Frequency LF-HF | 1800 Hz |
| Slope LF-HF | 24 dB/Octave |
Input
| Signal Input | 1x XLR fem, Bal. |
| Signal Output | 1x XLR male, Bal. |
| Power Supply | 400W SMPS with PSU Auto-range (110V~ and 220V~) |
| Power Socket | 1x PowerCon In 1x PowerCon Out |
| Signal Input M2S | 1 Custom connector |
Mechanics
| Housing | Polypropylen PP |
| Handles | 2x back side |
| Fittings | Integrated hardware with fast lock mechanics |
| Splay Angles | 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15° |
| Width | 460 mm (18.1 in) |
| Height | 190 mm (7.5 in) |
| Depth | 345 mm (13.6 in) |
| Weight M2M | 7.6 kg (16.8 lbs) |
| Weight M2S | 7.1 kg (15.7 lbs) |
