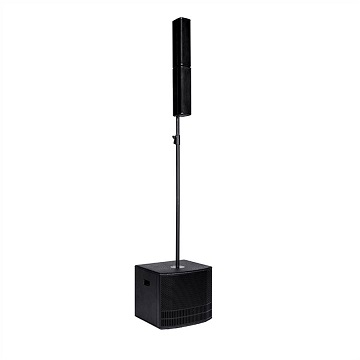

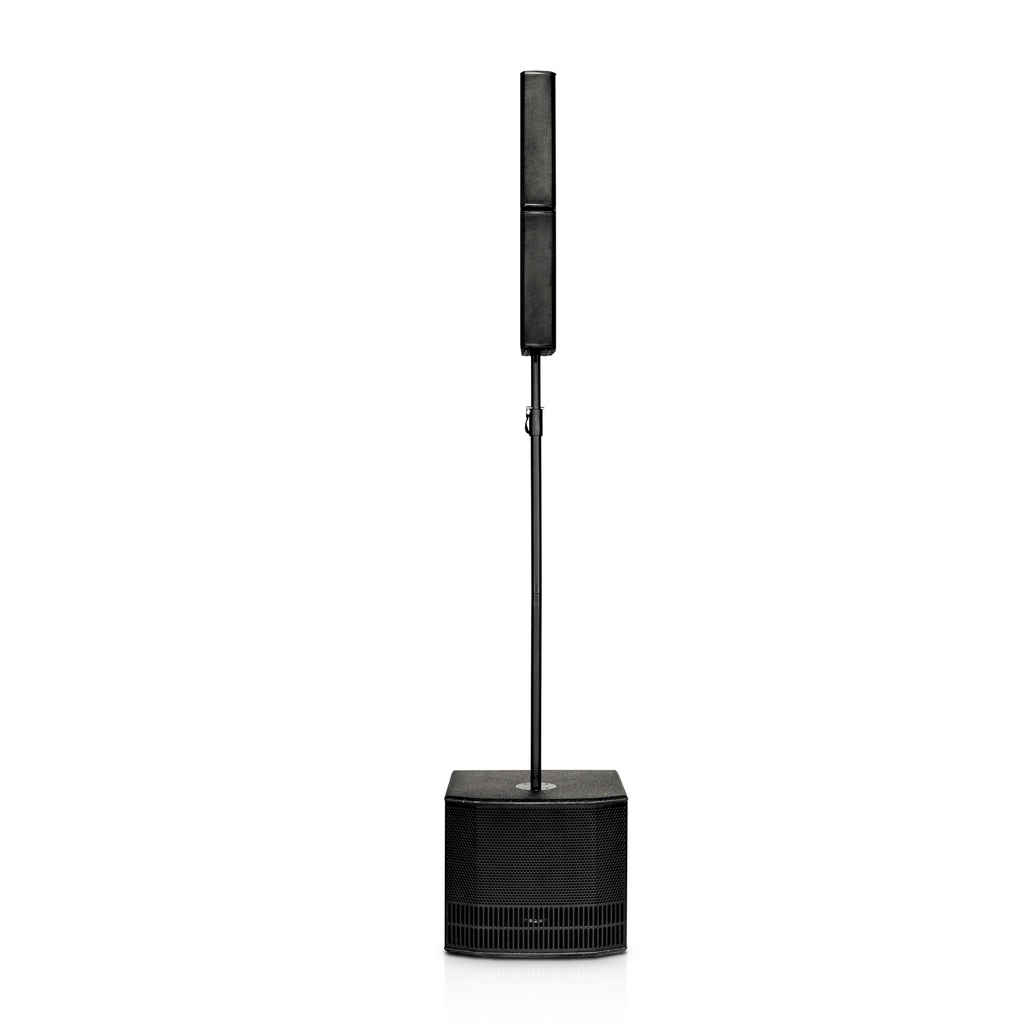

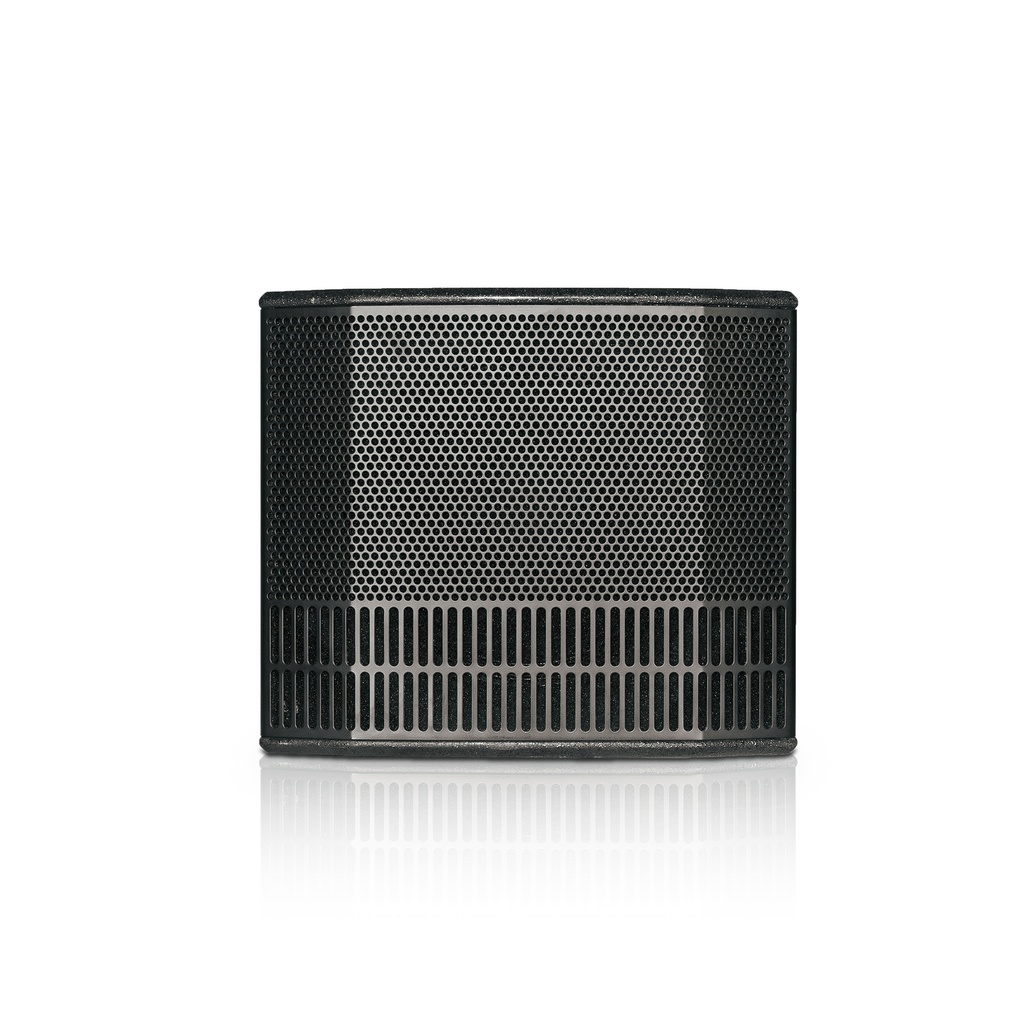

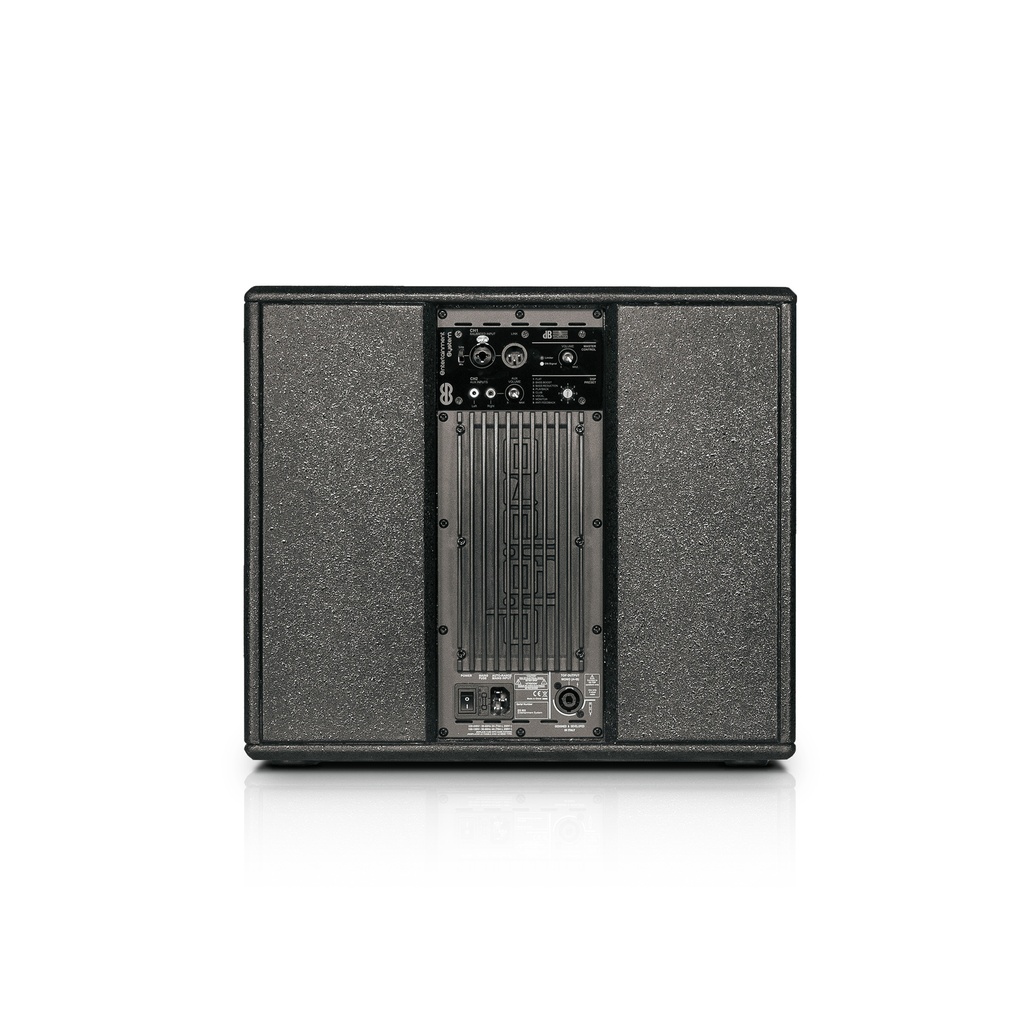

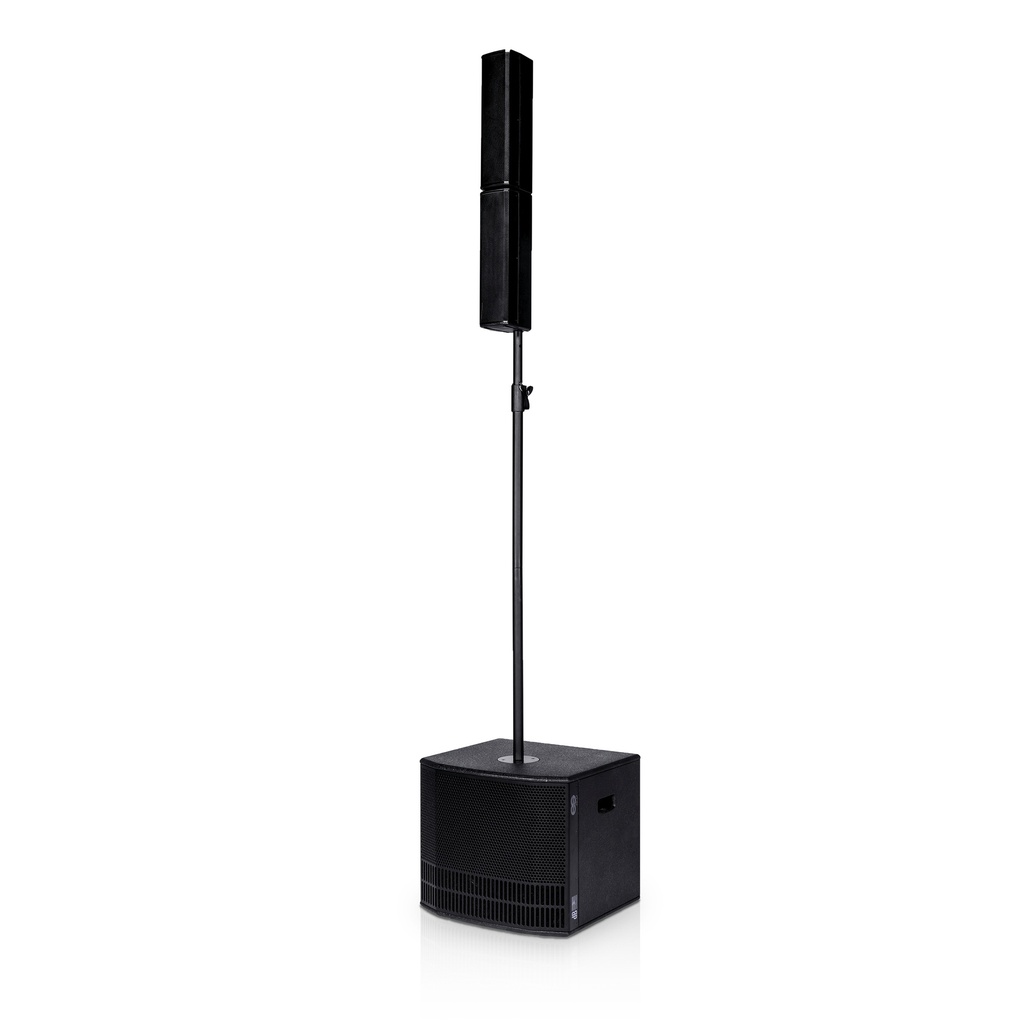

ES802 is a portable biamped sound system composed by two passive tops and one 12” subwoofer. The sub hosts a 1200 W peak power amp module with auto-range PSU. A powerful DSP manages the coverage and all the other functions of the system, making the ES802 a real gem in terms of sound performance and versatility.
Acoustical data
| Frequency Response [-10dB] | 37-15.000 Hz |
| Max SPL | 124 dB |
| MF - HF | 8x 3" |
| Type MF - HF | Neodymium |
| LF | 12" |
| Directivity | 95x65° |
Amplifier
| Amp Technology | Digipro® G3 |
| Amp Class | Class-D |
| Power Amp Peak | 1200 W |
Processor
| Controller | DSP 24 Bit/48 kHz |
| System Presets | Factory presets |
| Limiter | Dual Active, Peak, RMS, Thermal |
| Crossover Frequency LF-HF | 206 Hz |
Input
| Mic/Instrument Channel | 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input |
| Link Output | 1x XLR balanced output |
Mechanics
| Housing (Subwoofer) | 15mm Black Painted Plywood |
| Housing (Tops) | Polypropylene PP |
| Handles | 2x lateral side (Subwoofer) |
| Width (Top) | 95 mm (3.74 in) |
| Height (Top) | 360 mm (13.98 in) |
| Depth (Top) | 137 mm (5.39 in) |
| Width (Subwoofer) | 465 mm (18.3 in) |
| Height (Subwoofer) | 400 mm (15.7 in) |
| Depth (Subwoofer) | 430 mm (16.9 in) |
| Weight (Top) | 1.9Kg – 4.19lbs |
| Weight (Subwoofer) | 16.4Kg – 36.16lbs |
