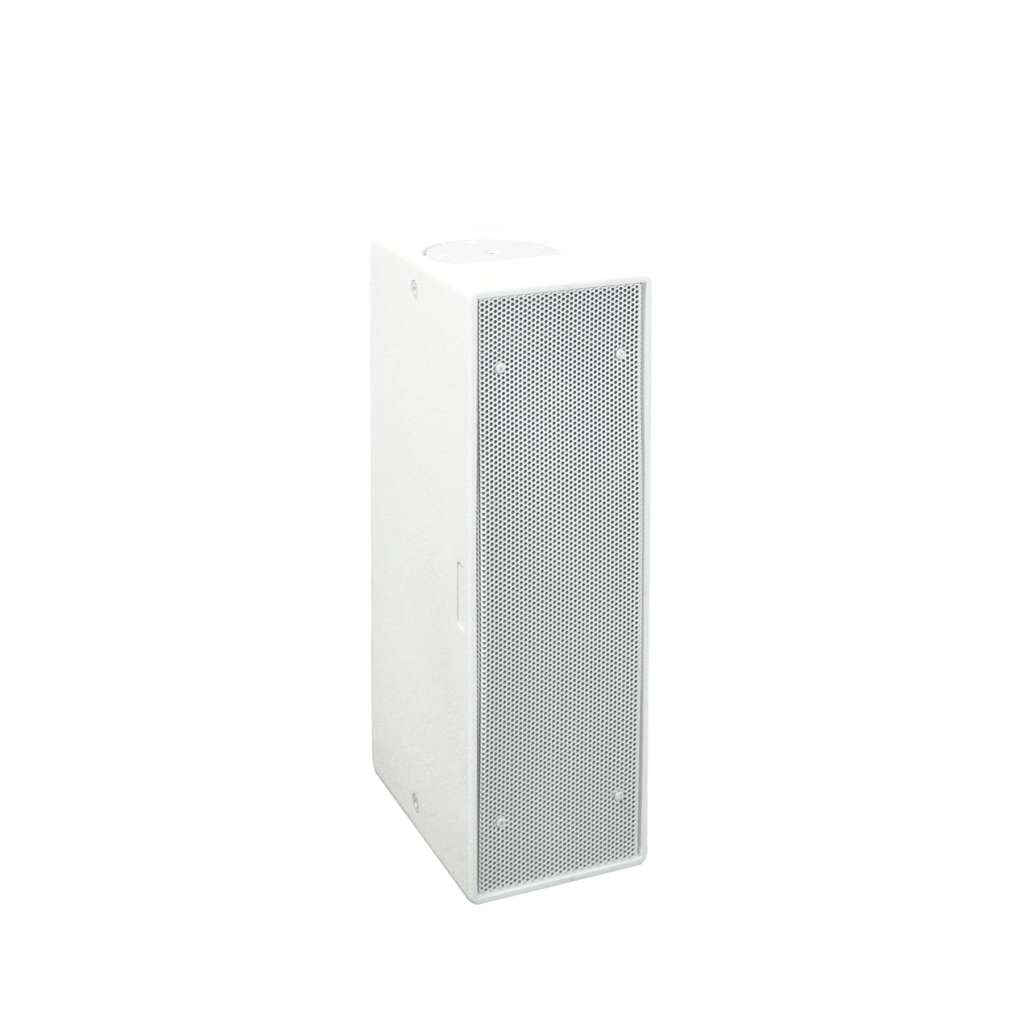

IS25T is equipped with two times 5" woofers plus a 1" compression driver for the higher end.
This box provides a 60 x100° constant dispersion, and you can easily install it either vertically or horizontally using the same accessories of VIO X205.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix or Speakon connectors, black or white version.
Technical Data
| Speaker Type | Passive 2-way Speaker |
Acoustical data
| RMS Power | 120 W |
| Peak Power | 480 W |
| Frequency Response [-6 dB] | 85 Hz - 20,000 Hz |
| Impedance | 8 Ohm |
| Sensitivity 1W@m | 94.5 dB |
| Max SPL | 121.5 dB |
| HF | 1x 1", 1.4" v.c. |
| LF | 2x 5", 1" v.c. |
| Dispersion | 100x60° [Rotatable Horn] |
| X-Over Frequency | 1500 Hz (internal X-Over) |
Input
| Connections | Phoenix |
Mechanics
| Housing | Plywood, water-painted coating |
| Rigging points | 2x M10 threaded nut (top and bottom) |
| IP rating | IP 32 |
| Width | 152 mm (6 in) |
| Height | 485 mm (19 in) |
| Depth | 240 mm (9.4 in) |
| Weight | 7 kg (15.4 lbs) |
