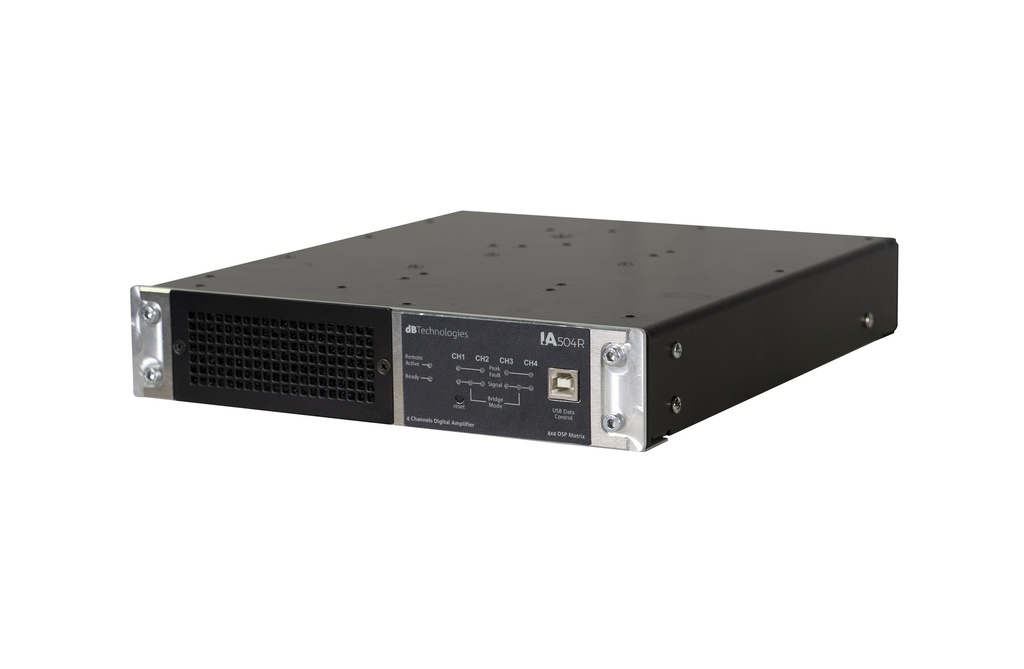

IA504 is a half rack sized class-D power amplifier that can work both for constant voltage systems (70 or 100 Volts) as well as professional audio applications with 4 time 125 W 4 ohms, fit for stereo or bridge configuration. Two versions are available: both are equipped with onboard DSP, full range PSU with Power factor correction and a GPIO interface, but they differ on the networking side.
In facts, IA504R version comes with RDNet ports, and IA504D with Dante ports, able to embed remote control and digital audio-in.
Technical Data
| Type | CLASS D Half-rack Amplifier |
Acoustical data
| Single channel mode | 4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V) |
| Bridged mode | 8 Ohm / 16 Ohm |
| Preset | Flat, dBTechnologies speaker, User preset |
| Input Impedance | 20 kOhm balanced |
| Frequency Response | 20 - 20.000 Hz |
Amplifier
| Total rated power | 280 W RMS @ 230Vac / 250 W RMS @ 120Vac |
| Single channel driven | 4 Ohm: 425W Peak / 280W RMS8 Ohm: 245W Peak / 245W RMS16 Ohm: 135W Peak / 135W RMS8 Ohm (Bridge): 619W Peak / 280W RMS70V: 250W RMS100V: 240W RMS |
| All channels driven | 4 Ohm: 225W Peak / 70w RMS8 Ohm: 180W Peak /70 W RMS16 Ohm: 125W Peak / 70W RMS8 Ohm (Bridge): 440W Peak / 140W RMS70V: 140W RMS100V: 140W RMS |
| Mains connections | IEC 10A connector |
| PFC | Yes |
| Nominal Voltage | 115Vac - 240Vac @50/60Hz |
| Operating Voltage | 90Vac - 264Vac @50/60Hz |
Processor
| AD | 24 Bit @48kHz |
| DA | 24 Bit @48kHz |
| Limiters | Compressor on processing channelsPeak limiter on output channel (also used in dBTechnologies preset) |
Input
| Input Channel | 4 Analog Balanced (EuroBlock 3.81mm) |
| Output Channel | 4 (EuroBlock 5.08mm) |
| Service Data | Frontal USB(AuroraNet setup & control) |
| Networking | 2 x RJ45 RDNet(AuroraNet setup & control) |
Mechanics
| Width | 222 mm (8.7 in) |
| Height | 44 mm (1.7 in) |
| Depth | 256 mm (10.1 in) |
| Weight | 1.82 kg (4.01 lbs) |
