Midas

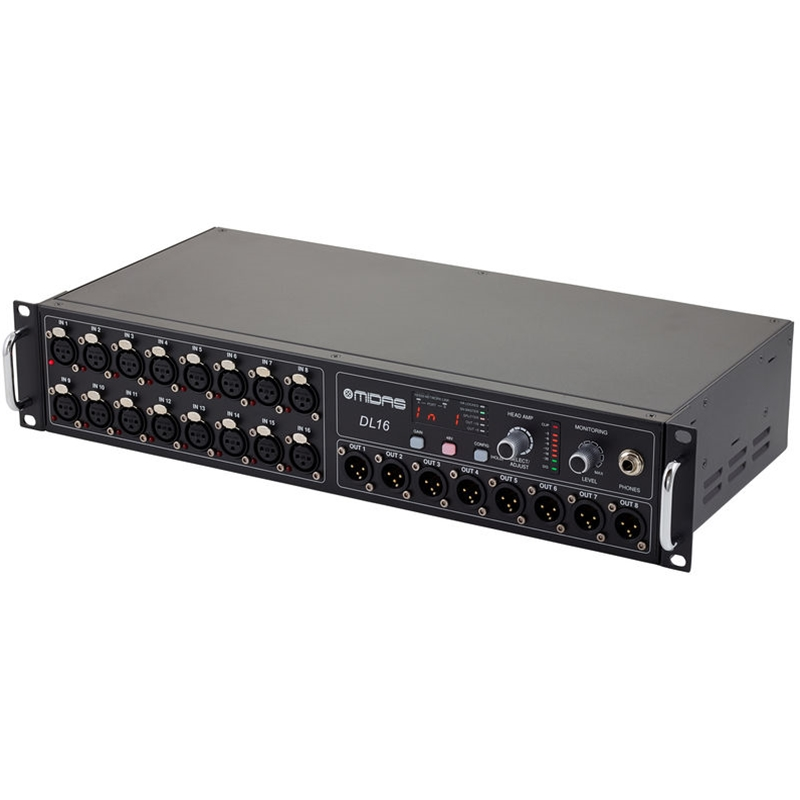

DL-16
Fixed Format I/O Unit 16x8 for M-Series
If your application calls for more inputs, or just want to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp mic’ing. The best part – all it takes is a single CAT5 cable per stage box.
-16 Input, 8 Output Stage Box with 16 MIDAS Microphone Preamplifiers, ULTRANET and ADAT Interfaces
-16 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power
-8 electronically balanced low impedance line level outputs
-ULTRANET personal monitoring system connectivity for in-ear applications
-Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability
-Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required
-Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
-Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
-All settings programmable from front panel controls or console
-Status indicator LEDs on front panel
-Headphones output assignable to any of the inputs or outputs for on-stage monitoring
-MIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devices
-Features Neutrik etherCON* AES50 and ULTRANET network ports
-Rugged 2U rackmount chassis for durability in portable applications
-Auto-ranging universal switch-mode power supply
-3-Year Warranty Program*
-Designed and engineered in England
