L-206
Mobile 2- Way, active 6"/5 x 2.5", 100W , BT

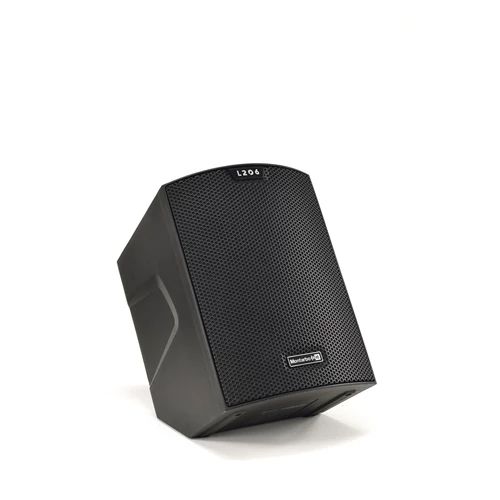

L206: simply great portable sound.
Able to deliver a remarkable sound pressure along with a clear sound performance, this compact system will be a perfect solution for professional performers on the run.
The 2-way cabinet is equipped with a 6.5"woofer delivering the low frequency, and 5x2.5" drivers in charge of delivering the high-frequency info with the widest possible dispersion.
The internal processing takes advantage of fir filters, which operate to determine a perfectly linear phase response and, consequently, a perfectly intelligible and faithful sound reproduction of the vocal range.
L206 is equipped with an integrated three-channel mixer comprising 2 Mic/Line combo IN with independent volume control and adjustable reverb effect, while the third channel controls the Line in AUX and the Bluetooth stereo streaming, allowing users to send a stereo signal to 2 speakers simultaneously from a single device.
The cabinet design enhances versatility as L206 can serve as a full range PA on a stand, as a wedge for vocals or instruments, or even as a small desktop monitor. 3 different preset EQs are easily selectable onboard.
L206 comes with an included battery (which lasts up to 4 hours).
Specifications
- Battery powered PA
- 3- channel mixer on-board
- Bluetooth 5.0 with stereo pair function
- FIR Filters
- Only 7.5 Kg ( 16.54 lbs)
TECHNICAL SPECIFICATIONS
Acoustical Data
Speaker Type | All-in-one vented closure |
Frequency Response [-10 dB] | 46 Hz - 20 kHz |
Max SPL | 114 dB |
HF | 5x 2.5" - 0.75” V.C. |
LF | 6.5" - 1.5" VC |
Dispersion | 90° H x 40° V |
Crossover Frequency | 1 kHz |
Amplifier
Amp Class | D |
RMS Power | 100 W |
Peak power | 150 W |
Cooling | Convection |
DSP
Advanced Functions | FIR Filters |
DSP | 28/56 Bit |
AD/DA Converter | 24 bit, 48 kHz |
Controls | PRESET PANEL Level CH1-CH2-CH3 EQ - CH1-CH2 Reverb: CH1/CH2 Bluetooth®: PAIR/STEREO |
Connectors | CH1: Combo CH2: Combo AUX IN: mini-jack LINE OUT: jack |
Bluetooth ® | 5.0 stereo |
Enclosure
Type of rechargeable battery | Lithium ions |
Battery duration in medium conditions of usage | 4 hours |
Battery average charging time | 5 hours |
Dimensions | 247 x 339 x 286 mm (9.7” x 13.3” x 9.3") |
Weight | 7.5 kg (16.54 lb) |
Cabinet | Polypropilene |
