Montarbo

R-108

https://www.mgmaudio.ch/web/image/product.template/3072/image_1920?unique=b915c98

2- Way, active 8/1", 200/400W, FIR

CHF 485.66 485.66 CHF CHF 485.66 TVA comprise

CHF 485.66 TVA comprise

Pas disponible à la vente

Wird für Sie bestellt

Diese Kombination existiert nicht.

Conditions générales
Versand: 2-3 Arbeitstage

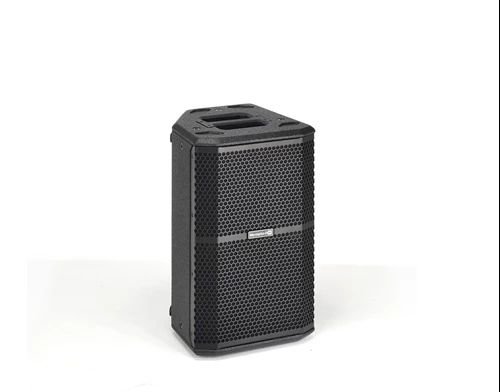

R108 is a wooden active speaker, 8" with FIR Filter and 125 dB SPL.

The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

Features
  • 8" woofer, 1.35" driver
  • FIR filter DSP
  • 2-way bass reflex wooden speaker

TECHNICAL SPECIFICATIONS

Acoustical Data

Speaker Type 2-way Active bass reflex
Frequency Response [-10 dB] 63 Hz - 20 kHz
Max SPL 125 dB
HF 1.35" driver
LF 8" - 2" VC
Dispersion 90° H x 70° V
Crossover Frequency 1.8 kHz

Amplifier

Amp Class D + A/B
RMS Power 200 W
Peak power 400 W
Cooling Fan

DSP

Advanced Functions FIR Filters
DSP 28/56 Bit
AD/DA Converter 24 bit, 48 kHz
Controls Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
Connectors CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M

Enclosure

Dimensions 264 x 440 x 260 mm
[10.4” x 17.3” x 10.3”]
Weight 10.9 kg [24 lb]
Cabinet Multilayer wood with polyurea finish
