Montarbo

R-112

https://www.mgmaudio.ch/web/image/product.template/3075/image_1920?unique=2eaa3c8

2- Way, active 12/1", 600/1200W FIR

CHF 689.18 689.1800000000001 CHF CHF 689.18 TVA comprise

CHF 689.18 TVA comprise

Pas disponible à la vente

Wird für Sie bestellt

Diese Kombination existiert nicht.

Conditions générales
Versand: 2-3 Arbeitstage

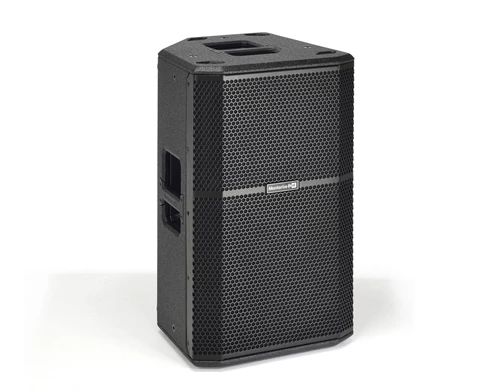

R112 is a wooden active speaker, 12" with FIR Filter and 131 dB SPL.

The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

Features
  • 12" woofer, 1.75" driver
  • FIR filter DSP
  • 2-way bass reflex wooden speaker

TECHNICAL SPECIFICATIONS

Acoustical Data

Speaker Type 2-way Active bass reflex
Frequency Response [-10 dB] 51 Hz - 20 kHz
Max SPL 131 dB
HF 1.75" driver
LF 12" - 3" VC
Dispersion 90° H x 40° V
Crossover Frequency 1.5 kHz

Amplifier

Amp Class D
RMS Power 600 W
Peak power 1200 W
Cooling Passive Radiator

DSP

Advanced Functions FIR Filters
DSP 28/56 Bit
AD/DA Converter 24 bit, 48 kHz
Controls Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
Connectors CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M

Enclosure

Dimensions 359 x 610 x 350 mm
[14.2” x 24” x 13.8”]
Weight 21 kg [46.3 lb]
Cabinet Multilayer wood with polyurea finish
