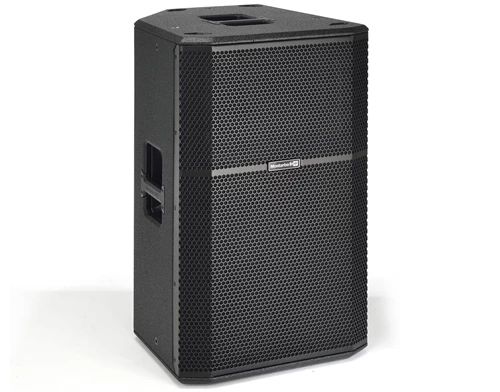

R115 is a wooden active speaker, 15" with FIR Filter and 132 dB SPL

The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

Caratteristiche
  • 15" woofer, 1.75" driver
  • FIR filter DSP
  • 2-way bass reflex wooden speaker

TECHNICAL SPECIFICATIONS

Acoustical Data

Speaker Type 2-way Active bass reflex
Frequency Response [-10 dB] 48 Hz - 20 kHz
Max SPL 132 dB
HF 1.75" driver
LF 15" - 3" VC
Dispersion 90° H x 40° V
Crossover Frequency 1.5 kHz

Amplifier

Amp Class D
RMS Power 600 W
Peak power 1200 W
Cooling Passive Radiator

DSP

Advanced Functions FIR Filters
DSP 28/56 Bit
AD/DA Converter 24 bit, 48 kHz
Controls Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
Connectors CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M

Enclosure

Dimensions 427 x 705 x 428 mm
[16.8” x 27.8” x 16.9”]
Weight 25.9 kg [57 lb]
Cabinet Multilayer wood with polyurea finish
