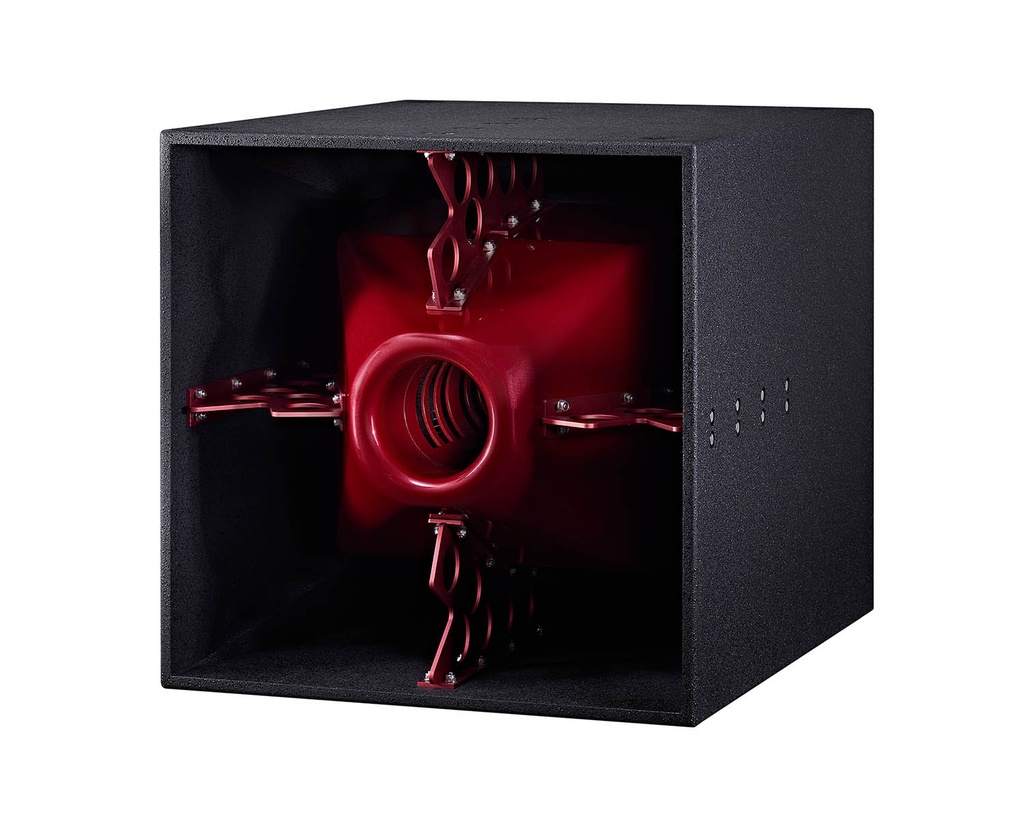

Nexus Q

Unparalleled Upped Bass

The Nexus Q delivers unparalleled upper bass frequencies via its enhanced enclosure design. Four 12" transducers use a front-loaded horn to achieve high efficiency and a rear port with a newly developed ‘pressure gradient’ arrangement.

Unbeatable Definition

The Improved configuration results in an enclosure with unmatched output and definition, alongside elimination of any colouration from turbulent or mechanical port noise. The Nexus Q is well-suited to high-impact nightclubs, concerts and festivals.

Key Features

• Four high power 12” transducers
• Front loaded horn
• High efficiency
• Newly developed ‘pressure gradient’ arrangement

Full Specifications

• Frequency Response: 60 Hz - 150 Hz ±3dB
• Efficiency¹: 110 dB 1W/1m
• Crossover Points: 70 Hz
• Nominal Impedance: 2 x4 Ω
• Power Handling²: 2 x 2000 W AES
• Maximum Output³: 145 dB cont, 151 dB peak
• Driver Configuration: 4 x 12”
• Dispersion: Array dependant
• Connectors: 2 x 4-pole SpeakON™
• Weight: 130 kg (286.6 lbs)

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
