Active 2- Way 2x6½/2x1"/passive 2x6½/2x1"/400W RMS

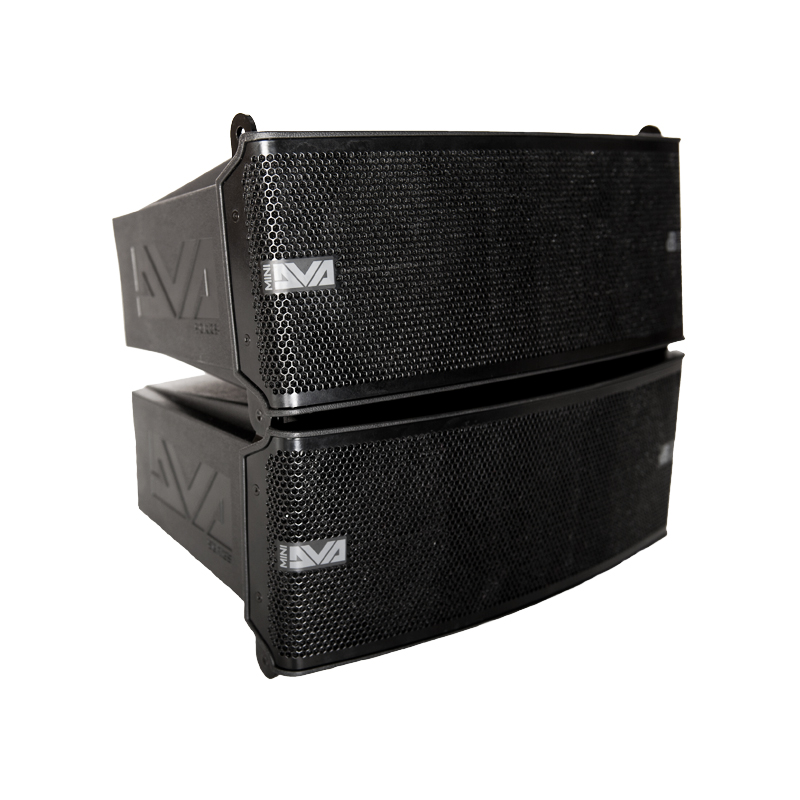

Offering the same user-friendliness and sound quality of its DVA predecessors, this 2-Way Active Line Array System sets the new benchmark for high-end sound performance thanks to the innovative Master+Slave design which aacks high SPL in incredibly small dimensions and weight. A super versatile system for both portable and permanent installation solutions.
Technical Data
Speaker Type M2M
2-Way Active Master Line Array Module
Speaker Type M2S
2-Way Slave Line Array Module
Acoustical data
Frequency Response [-6dB]
78 - 19.000 Hz
Frequency Response [-10dB]
68 - 20.000 Hz
Max SPL
126 dB per unit
HF
2x1"
Type HF
Neodymium
Voice Coil HF
1"
LF
2x6.5"
Type LF
Neodymium
Voice Coil LF
1.5"
Directivity
90x15°
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power HF Amp
200 W (100 W + 100 W)
RMS Power LF Amp
200 W (100 W + 100 W)
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
System Presets
9 presets (8x HF and Low-Mid corrections and 1x for service use)
Offering the same user-friendliness and sound quality of its DVA predecessors, this 2-Way Active Line Array System sets the new benchmark for high-end sound performance thanks to the innovative Master+Slave design which aacks high SPL in incredibly small dimensions and weight. A super versatile system for both portable and permanent installation solutions.
Technical Data
Speaker Type M2M
2-Way Active Master Line Array Module
Speaker Type M2S
2-Way Slave Line Array Module
Acoustical data
Frequency Response [-6dB]
78 - 19.000 Hz
Frequency Response [-10dB]
68 - 20.000 Hz
Max SPL
126 dB per unit
HF
2x1"
Type HF
Neodymium
Voice Coil HF
1"
LF
2x6.5"
Type LF
Neodymium
Voice Coil LF
1.5"
Directivity
90x15°
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power HF Amp
200 W (100 W + 100 W)
RMS Power LF Amp
200 W (100 W + 100 W)
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
System Presets
9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter
Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF
1800 Hz
Slope LF-HF
24 dB/Octave
Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Power Supply
400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket
1x PowerCon In 1x PowerCon Out
Signal Input M2S
1 Custom connector
Mechanics
Housing
Polypropylen PP
Handles
2x back side
Fittings
Integrated hardware with fast lock mechanics
Splay Angles
0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width
460 mm (18.1 in)
Height
190 mm (7.5 in)
Depth
345 mm (13.6 in)
Weight M2M
7.6 kg (16.8 lbs)
Weight M2S
7.1 kg (15.7 lbs)
