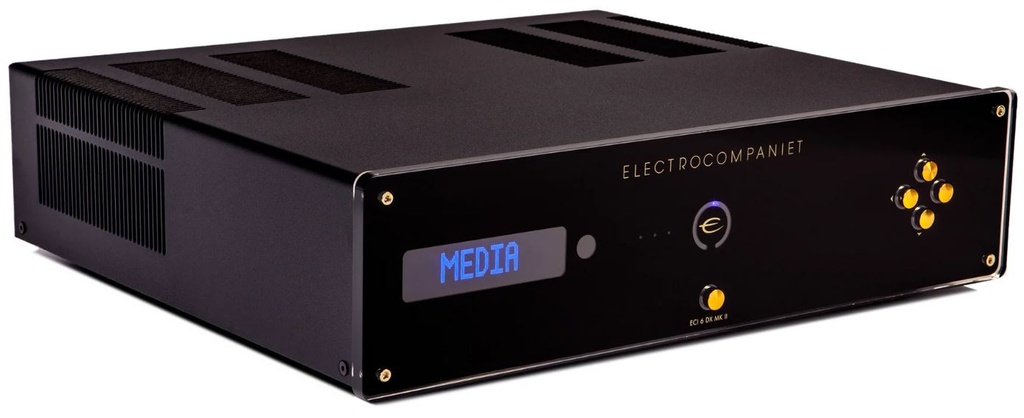

ECI-6 Dx MK II
Integrated Amp / DAC / Streamer
The new ECI 6 DX MKII combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound.
This single unit is able to play whichever, wherever and whatever audio source you may have, and makes it sound like music was meant to be sounding.
Technical specifications
|
All measurements are made at 120V / 240V //50Hz / 60Hz |
|
|
Digital section: |
|
|
D/A converter |
24 bit/192 kHz |
|
Sample rate converter |
24bit / 192kHz |
|
Inputs |
SPDIF, 2x Toslink, 1x USB |
|
USB: |
asynchronous up to 24bit/ 192kHz supported |
|
SPDIF: |
24bit/ 192kHz |
|
Toslink: |
24bit/ 96kHz |
|
Streamer section |
|
|
Streaming services • AirPlay ® * Future software update.
|
|
|
Supported formats: |
|
|
Preamplifier section |
|
|
Input impedance ( Balanced input ) |
47Kohm |
|
Maximum input level |
10 Volt RMS |
|
Noise floor ( 1Vrms, 20 - 20 kHz, balanced) |
-135 dB |
|
THD + N (1Vrms, 20 - 20 kHz, balanced) |
<0.004% |
|
Gain (Balanced) |
0 dB |
|
|
|
|
Amplifier section |
|
|
Output Impedance |
< 0,02 Ohm |
|
Frequency response |
1 – 150 kHz |
|
Channel separation |
> 120 dB |
|
THD ( 20 - 20 kHz) |
< 0.004% |
|
Maximum peak current |
>100A |
|
Damping factor 8 ohm load |
>350 |
|
I Input sensitivity 120W output |
1.3Vrms |
|
Input sensitivity HT 120W output |
1Vrms |
|
Gain HT Input |
x36 (31 dB) |
|
Rated output power |
|
|
8 ohms |
2 x 125 W |
|
4 ohms |
2 x 200 W |
|
2 ohms |
2 x 370 W |
|
Power consumption |
110 W |
|
Standby |
1W |
|
(no load or signal) |
|
|
|
|
|
Dimensions |
|
|
Width |
470 mm / 18.3 inches |
|
Depth ( with a speaker terminals) |
430 mm / 16.9 inches |
|
Height |
128 mm / 5 inches |
|
Weight |
20,5 Kg / 45 lbs. |
