Audio-Technica

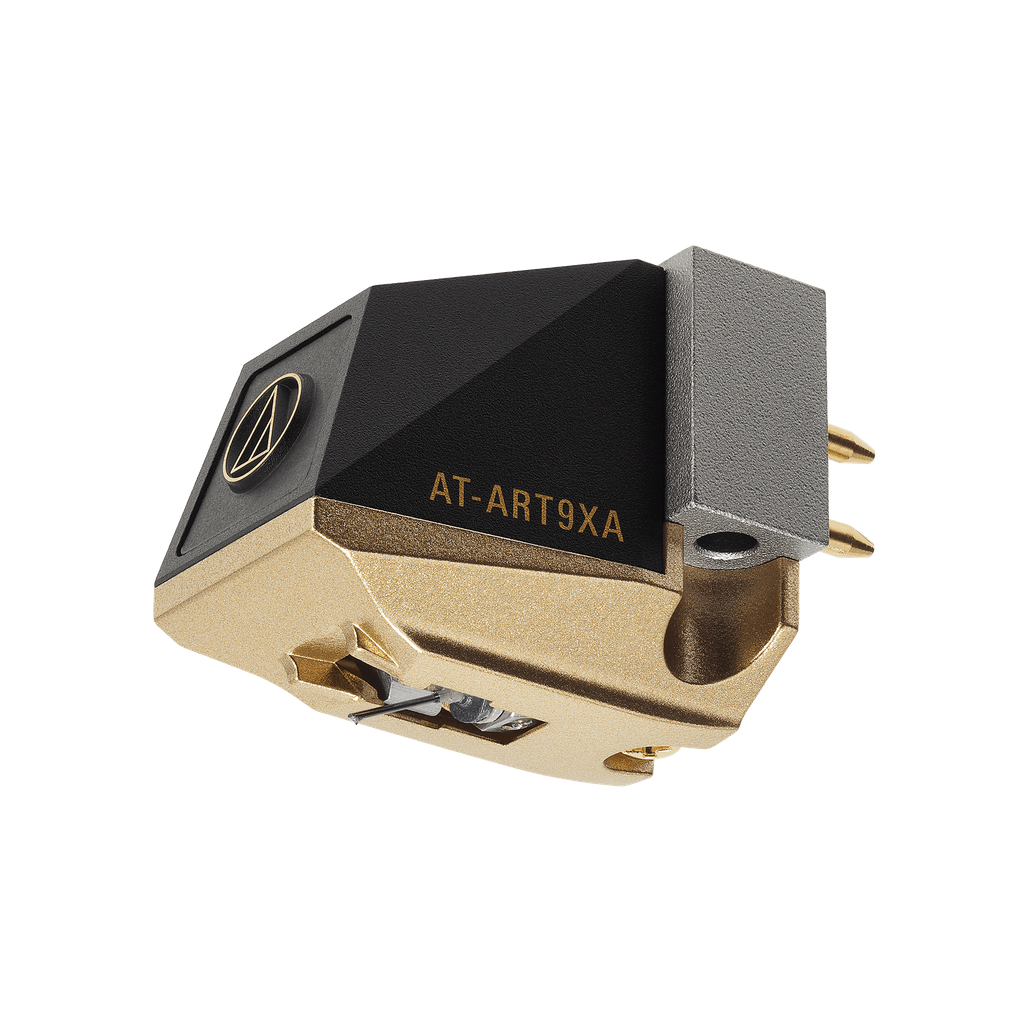

AT-ART9XA

Dual Moving Coil Cartridge (Non-Magnetic Core)
CHF 1.599,00 CHF 1.599,00 (Imposte incluse)

Auf Lager
Aggiungi al carrello
Termini e condizioni
Garanzia di rimborso di 30 giorni
Spedizione: 2-3 giorni lavorativi

Funktionen

  • Non-magnetic core moving coil cartridge offers superior spatial representation

  • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

  • Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

  • Neodymium magnet and permendur yoke significantly increase magnetic energy

  • Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)

  • PCOCC coils ensure high-fidelity transmission

  • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
  • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Spezifikationen

Cartridge & Stylus
Frequenzbereich 20-50,000 Hz
Kanaltrennung 30 (dB at 1 kHz)
Vertikaler Abtastwinkel 20°
Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
Schaftform der Nadel Nude
Empfohlene Lastimpedanz Min. 100 ohms (when head amplifier connected)
Spulenimpedanz 12 ohms (1 kHz)
DC Widerstand 12 ohms
Spuleninduktivität 2.5 µH (1 kHz)
Ausgangsleistung 0.2 mV (1 kHz, 5 cm/sec.)
Kanalbalance am Ausgang 0.5 dB (1 kHz)
Nadelschliff Shibata
Nadelträger 0.28 mm diameter solid boron
Statische Nadelnachgiebigkeit 20 x 10-6 cm/dyne
Dynamische Nadelnachgiebigkeit 10 x 10-6 cm/dyne (100 Hz)
Befestigung Half-inch
Gewicht 8.5 g (0.30 oz)
Abmessungen 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
Beiliegendes Zubehör Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush
Threaded Hole M2.6 x 2
Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
