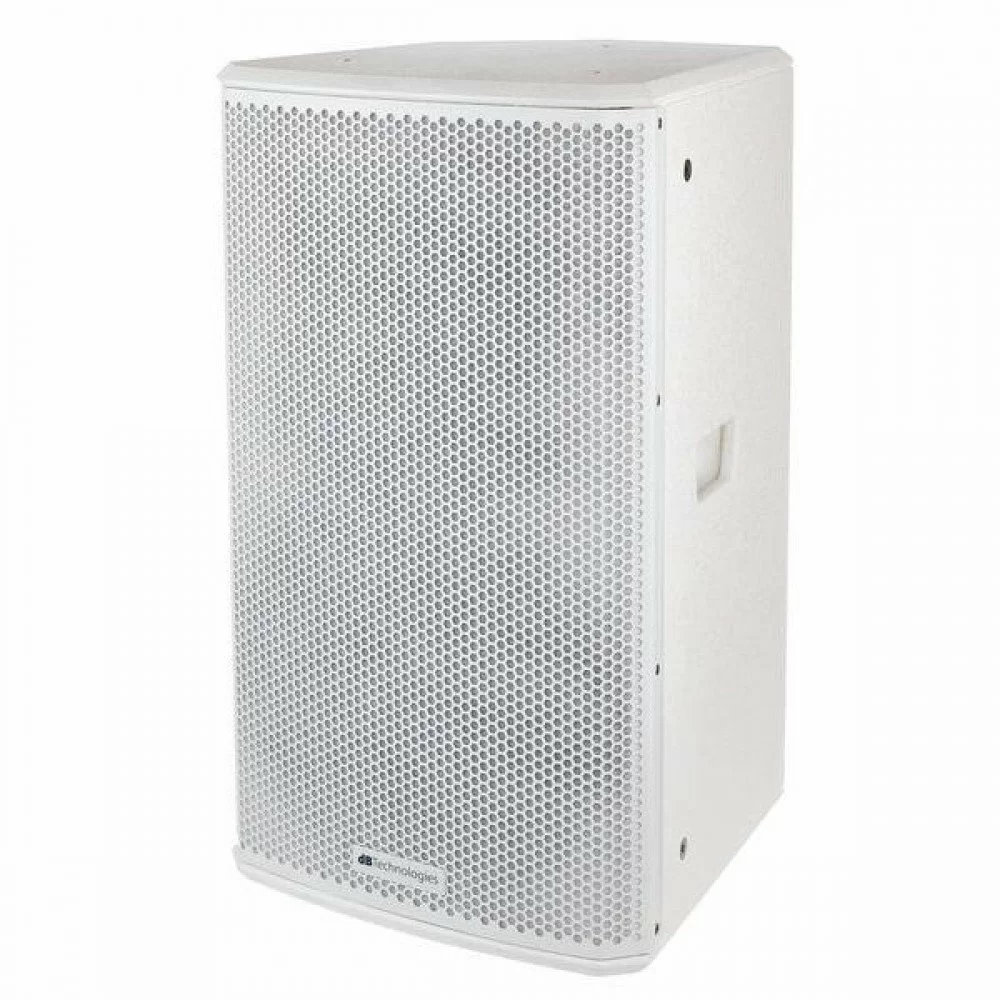

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P12 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP12H or vertical brackets (VB-LP1215V). The cabinet features 1 integrated handle per side and a 36 mm pole mount plate. All enclosures and accessories of LVX P series are available in black or white version.
Technical Data
| Speaker Type | 2-Way Passive Speaker |
Acoustical data
| Peak Power | 800 W |
| Impedance | 8 Ohms |
| Frequency Response [- 10 dB] | 65- 21.000 Hz |
| Max SPL | 127 dB |
| HF | 1 “, 1.35" v.c. |
| Directivity | 90x60° |
| Horn | Rotatable |
| LF | 12“, 2" v.c. |
Input
| Signal Input | 1x Speakon (Pin 1+=+) (Pin 1-=-) |
| Signal Output | 1x Speakon (Pin 1+=+) (Pin 1-=-) |
Mechanics
| Housing | Plywood |
| Pole Mount | 36 mm |
| Angle Up | Monitor use 40° |
| Rigging Points | 12 x M8 |
| Handles | 2 (1X side) |
| Width | 360 mm (14.17 in) |
| Height | 610 mm (24 in) |
| Depth | 360 mm (14.17 in) |
| Weight | 15.1 kg (33.2 lbs) |
