D510mx Analog Summing Mixer

Build your custom 500 Series analog mixer

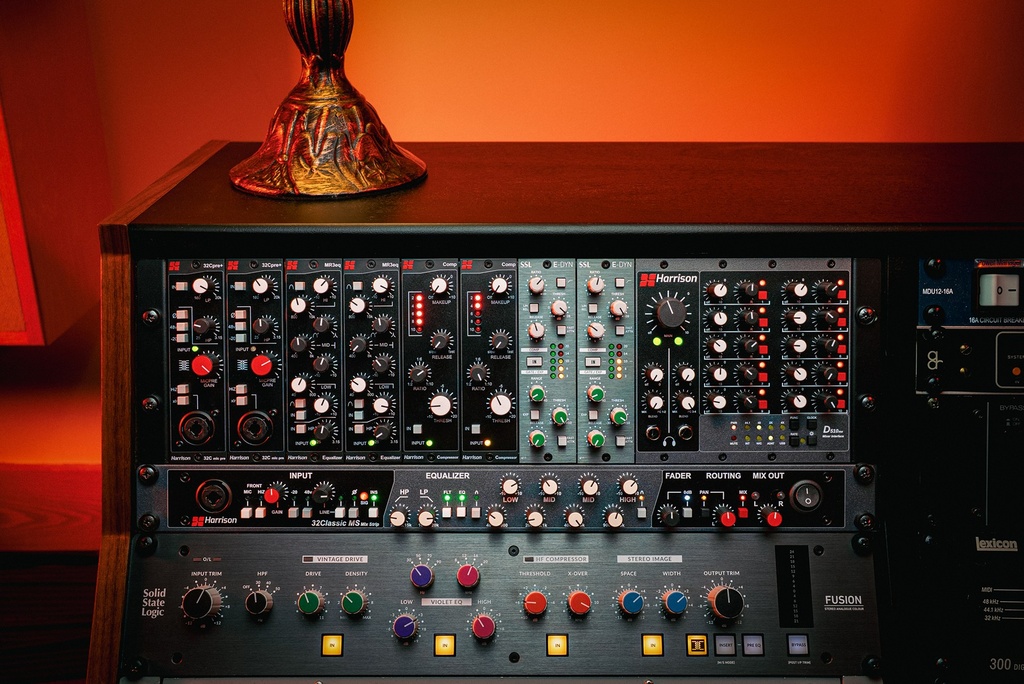

Pair the D510r with the optional D510mx mixer module to transform your system into a powerful 10x2 analog summing mixer. Designed to integrate into two slots of the Harrison D510r 500 Series rack, the D510mx gives you the flexibility to create stereo mixdowns from any of the eight remaining 500 Series module slots, alongside the two analog inputs to slots 9 and 10. With level and pan controls on each channel, plus dual independent headphone outputs with ‘blend,’ get the renowned weight and ‘3D’ depth that Harrison analog summing brings to productions while enhancing your headphone monitoring capabilities.

When used in combination with the D510dante audio interface card, the dual headphone outputs can create monitor mixes from either the direct analog output or from any connected device on the Dante network.

With an almost infinite number of configurations, the Harrison D510 rack paired with the D510mx mixer module can create an extremely powerful (and portable) eight-channel tracking system housed in only 3U – we said it was flexible!

D510mx Specifications:

D510mx Inputs

• Minimum Gain: <= -81 dB
  • Noise A-Weighted @ Min Gain: < -87 dBu


• Unity 0 dB
  • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
  • Noise A-Weighted @ No Gain: < -87 dBu

• Maximum Gain: 11.5 dB
  • THD+N, 1kHz 0dBu @ Max Gain: < 0.003%
  • Noise A-Weighted @ Maximum Gain: < -85 dBu


• Maximum Input Level: +24 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB
• Pan – 3dB Pan Law

D510dante Inputs (when optional D510dane interface is installed)

• Maximum Input Level: +24 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB


Main Outputs

• Maximum Output Level - +24 dBu
• Minimum Gain: <= -85 dB
  • Noise A-Weighted @ Min Gain: < -97 dBu
• Unity 0 dB
  • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
  • Noise A-Weighted @ No Gain: < -87 dBu
• Maximum Gain: 9.5 dB
  • THD+N, 1kHz 10 dBu @ Max Gain: < 0.003%
  • Noise A-Weighted @ Maximum Gain: < -78 dBu

Headphone Outputs

• Maximum Output Level - +21 dBu
• Minimum Gain: <= -78 dB
  • Noise A-Weighted @ Min Gain: < -87 dBu
• Maximum Gain: 0 dB
  • THD+N, 1kHz 20 dBu @ Max Gain: < 0.004%
  • Noise A-Weighted @ Maximum Gain: < -82 dBu

Signal Metering

• 3x tri-colour LED signal presence
  • Green: >= -14 dBu, + 4 dBu
  • Orange: >= +4 dBu, +18 dBu
  • Red: >= + 18 dBu

Connectors

• TRS Stereo Headphone Output (2)
