ATND8734a

ATND8734a Power Module with Dante™ Network Output - Connects directly to Dante network via Ethernet cable, TB3M-type input for quick mounting of microphone and Logic input accepts external switch for connection to the Dante network.

ATND8734a

Wall/Ceiling plate power module for the Dante™network

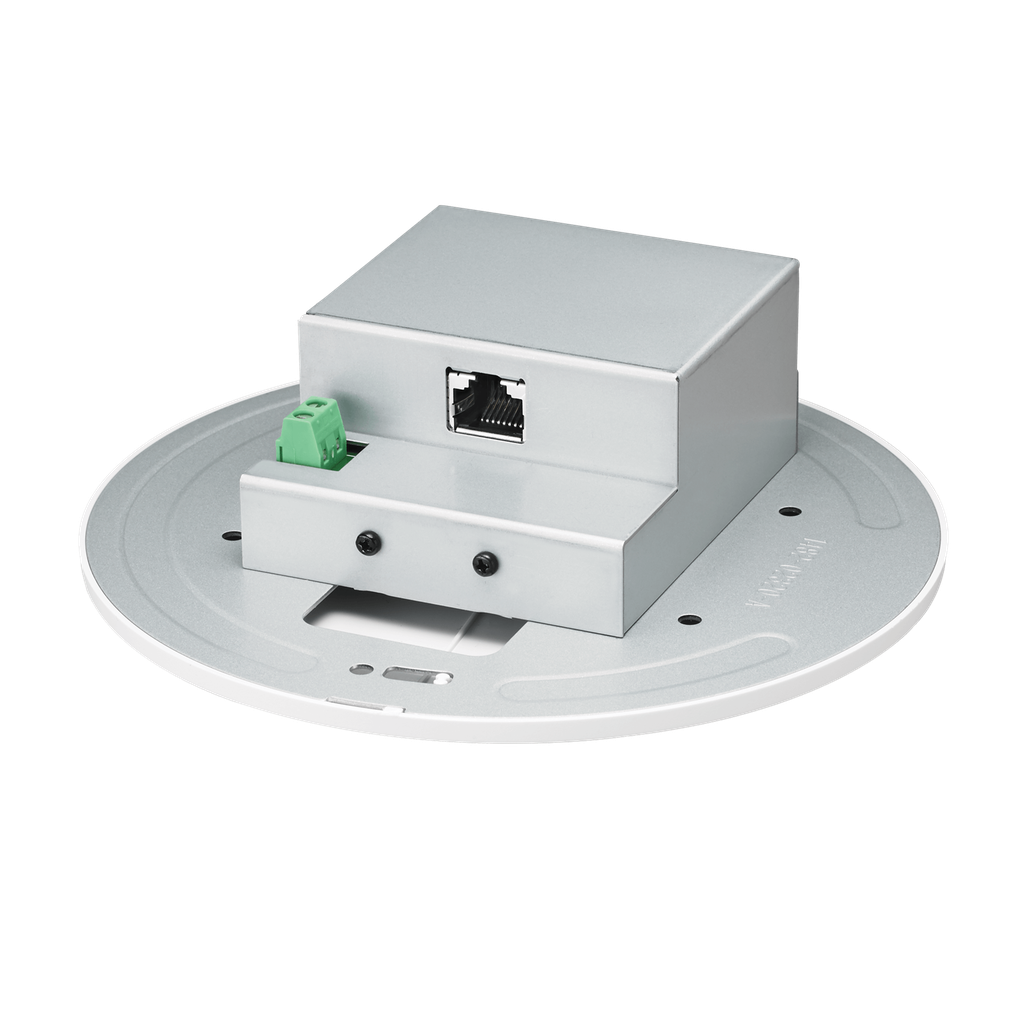

The ATND8734a is a Dante-enabled wall/ceiling plate power module designed for use with compatible microphones that have a TA3F-type connector, including the ES931/MIC and ES933/MIC. The power module is equipped with an RJ45 output jack that allows for easy connection to the network via CAT5e (or better) cable.

The power module is equipped with an 80 Hz low-cut UniSteep® filter that permits the choice of flat response or low-frequency roll-off, three-position input gain level selector (+30 dB, +40 dB, and +50 dB), and a red/green LED status indicator. These are all controlled remotely via third-party software.*

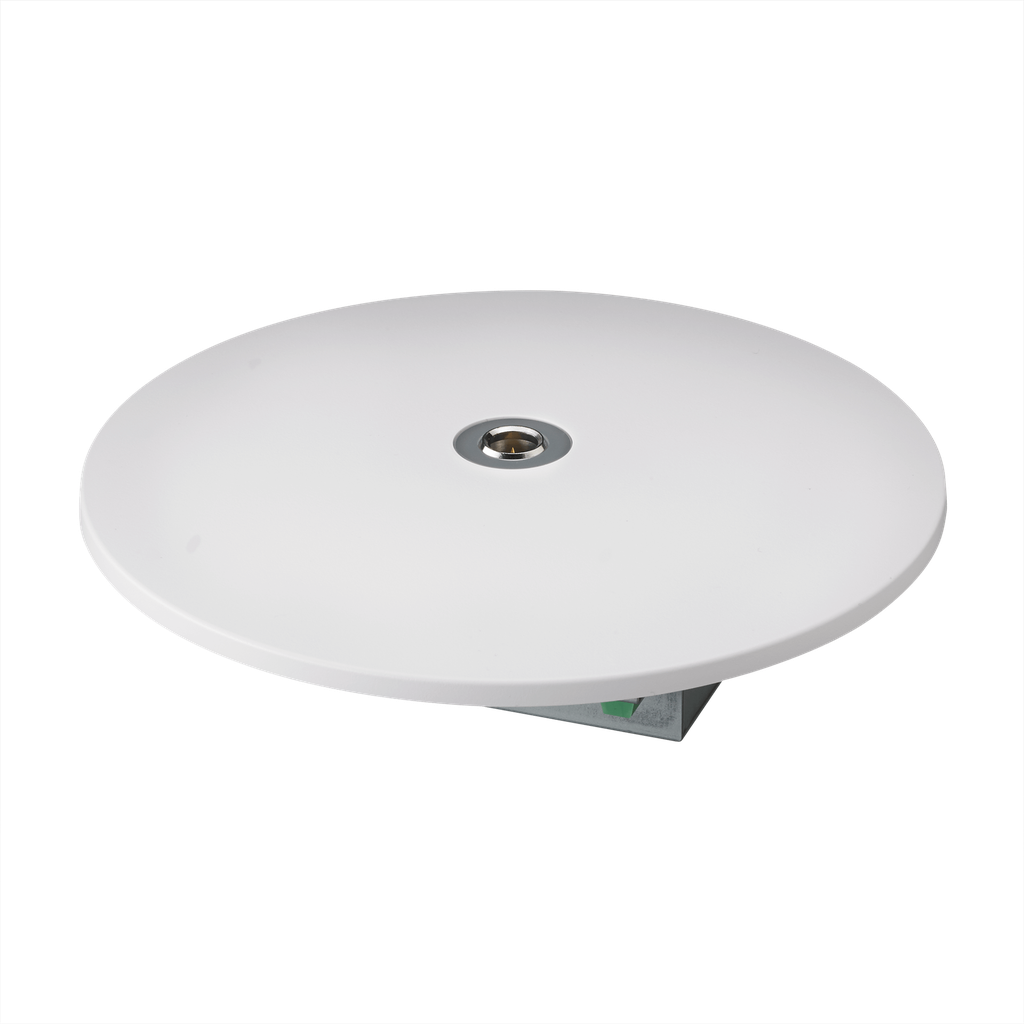

The ATND8734a features a circular cover plate that can be removed and painted with commercially available spray paint.

This latest “a” version also offers plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies, and increases the Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more.

• Connects directly to network via Ethernet cable – no need for expensive audio cable or soldering
• TB3M-type input for quick mounting of microphone
• Red/green LED indicator
• Input gain, low-cut filter and LED indicator ring are controlled remotely
• Logic input accepts external switch for connection to the Dante network
• Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
• Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more

“Easy to implement, to use and to extend”

Dante™ technology has become the standard in the professional audio sector. The real plug-and-play solution, Dante™ uses standard Internet protocols to deliver digital audio and control data with very low latency. The ATND8734a exploits the benefits Dante™ to provide a high-performance audio solution, easy to implement, use and extend.

“Up to 512 bi-directional audio channels”

Ideally suited to boardrooms and meeting spaces, network microphones have a simple Ethernet connectivity, are inexpensive, and boast a remarkable sound quality. Dante™ can support up to 512 channels of bidirectional audio, the network microphones offer a solution that can easily be extended.

“Local or remote-controlled”

Powered directly by the network cable, the ATND8734a can also be used to transmit control data in a Dante™ networking device. Its logic input accepts external switch for connection to the Dante network and can be used to trigger the rotation / tilt the video camera, recall the lighting presets or to control anything else on the network.

Remote-controlled

Input gain, low-cut filter and LED indicator ring are controlled remotely.

Powered by the network

The ATND8734a power module feeds directly to the network via its PoE Ethernet port (Power Over Ethernet).

Now with AES67

Plug-and-play compatibility with AES67 networks

TA3F-type connector

Designed for use with compatible microphones that have a TA3F-type connector, including the ES931/MIC and ES933/MIC.
