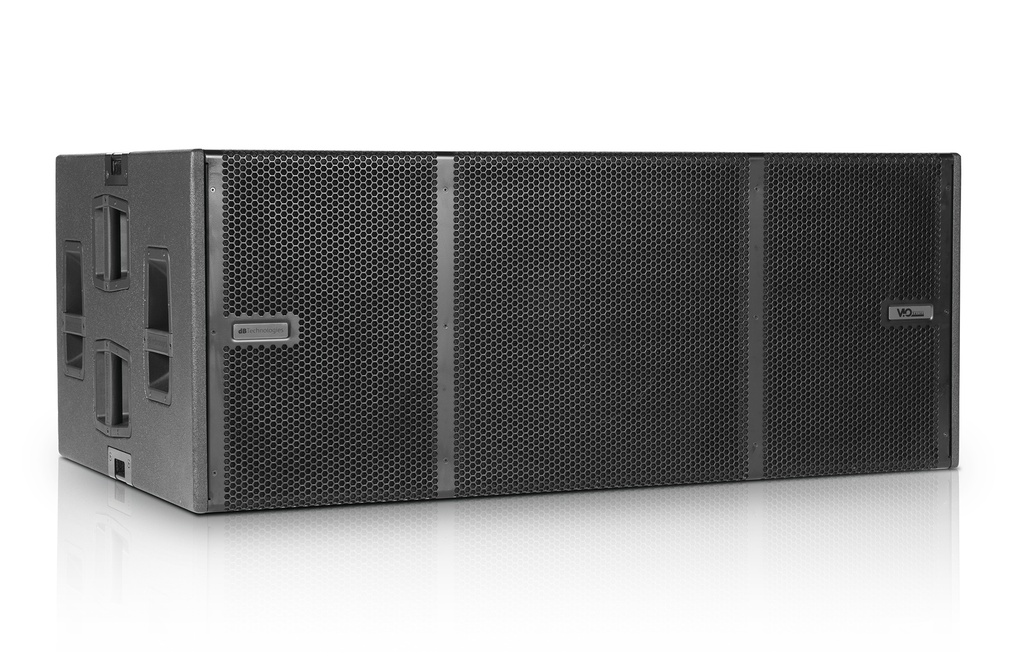

VIO S318 is equipped with 3 18” bassreflex half-horn loaded woofers, configured in order to maximize frontal emission. The 3 voice coils are in facts mechanically aligned in order to achieve a perfect phase response.
The 3 DIGIPRO G3 amplifiers deliver a total 2700 W RMS power, allowing the system to reach up to 143dB SPL.
The system features an integrated delay module achieving up to 9.9 ms delay with 0,5 ms steps. The crossover module sets the low pass filter alongside with the highpass filter for the integrated crossover output. The system also features an attenuation control, a polarity switch and a RDNet port for remote control.
The high quality multiplex housing is reinforced with a robust polyurea finishing and equipped with 5 aluminium handles per side.
The dolly transport DO-VIOS318 allows to transport up to 3 subs simoultaneously, both on wheels or on lift track. As an alternative to the dolly, wheels can be mounted on the rear side of the cabinet.
Technical Data
| Speaker Type | Active Bassreflex Semi-Horn-Loaded Subwoofer |
Acoustical data
| Frequency Response [- 6 dB] | 39 Hz to Cut Freq (X-Over Dependent) |
| Frequency Response [- 10 dB] | 35 Hz (HPF) |
| Max SPL | 143 dB |
| LF | 3x18" |
| Voice Coil LF | 4 " |
| Directivity | Omnidirectional |
Amplifier
| Amp Technology | Digipro® G3 |
| Amp Class | Class D |
| RMS Power | 2700 W |
| Peak Power | 5400 W |
| Cooling | Convection |
| Power Supply | 2700 W SMPS with Auto Range PSU |
Processor
| Controller | DSP 32 bit |
| AD/DA Converter | 24 bit/96 KHz |
| Limiter | RMS, Peak, Thermal |
| Delay Option | 0-9.9 ms internal Steps of 0.1 ms |
| Crossover Frequency LF-HF | 70-105Hz + Full range |
| LF-Xover out slope | 24 dB/Octave |
Input
| Signal Input | 1xXLR balanced 1xRJ45 LINK (RDNet) |
| Signal Output | 1x XLR balanced 1xRJ45 LINK (RDNet) |
| Power Socket | 1xPowerCON TRUE1 IN1xPowerCON TRUE1 OUT |
| Controls | 1x Input Attenuation Rotary Switch2x Rotary Encoder (Delay 9.9 ms)1XPolarity Inversion Switch (0° or 180°)1xCardioid Mode Switch 1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz) |
Mechanics
| Housing | Multiplex plywood Polyurea painted |
| Handles | 4x Per Side Aluminium |
| Raincover | Included |
| Rigging Points | 2xPick Points on top to fix DRK-210 rigging frame |
| Width | 1300 mm (51.18 in) |
| Height | 520 mm (20.47 in) |
| Depth | 800 mm (31.5 in) |
| Weight | 103.9 kg (229.06 lbs) |
