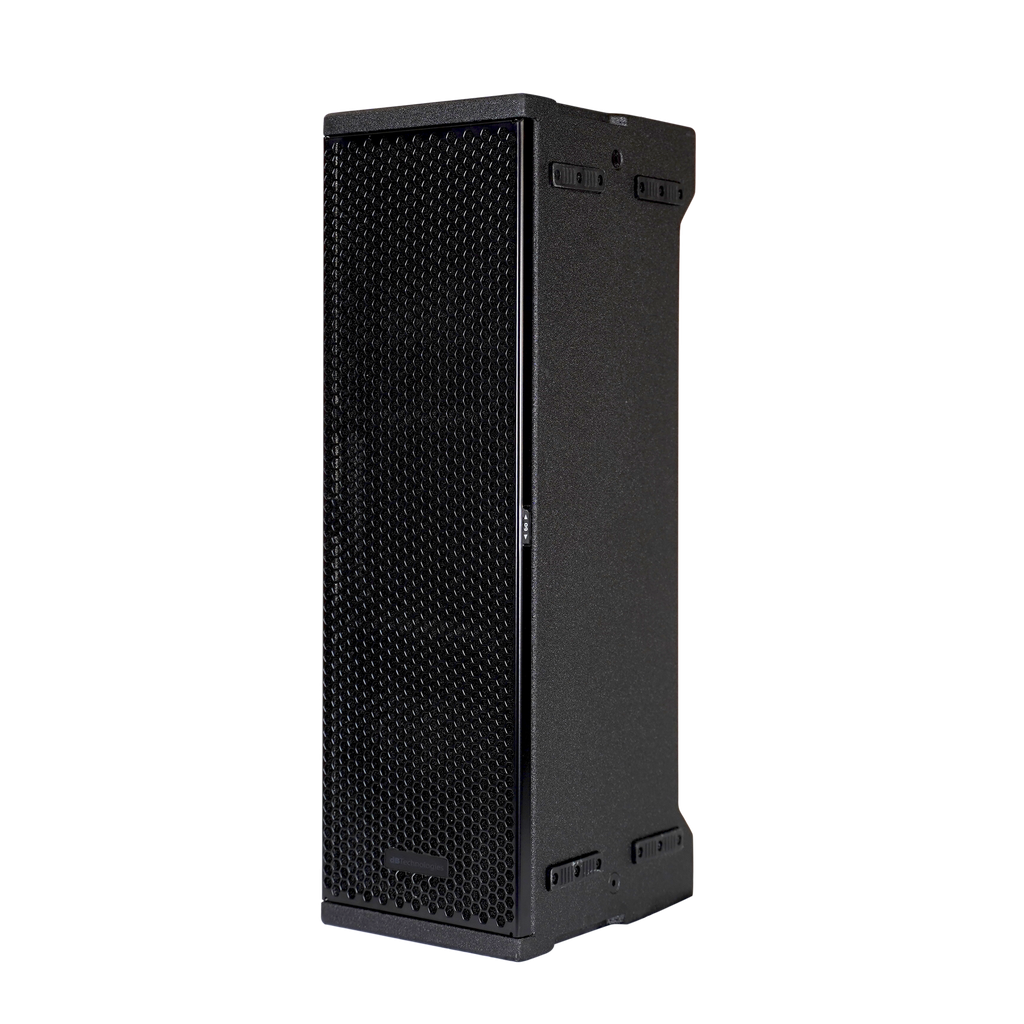

VIO X206 is an ultra-compact active professional speaker that delivers sound pressure and linear response to the highest level. Available in 2 versions with a standard 90x60° coverage or a 100x15" dispersion pattern wich basically turns the full range speaker into a line array module.

Point Source and Line Array

The system is available in 2 models providing different coverage patterns.
VIO X206 features a horn allowing for a 60x90° dispersion. VIO X206-100, instead, features a waveguide providing a 100x15°dispersion, allowing the system to operate in line array mode.
Both VIO X206 horn and VIO X206-100 waveguide are removable, meaning that users can easily replace them, adapting their VIO X206 systems to the venue and application in use.
A firmware preset button on board optimizes the behavior of the DSP to the application in use.
Thanks to the two variants it cover a wide range of applications, meeting the requirements of both production and integration. This sleek, slim cabinet can easily fits onto a live stage, a corporate event facility, as well as a meeting room or a bar.

*Technical Data*
Speaker Type	2 Way Active Loudspeaker

*Acoustical data*
Usable bandwidth [-10dB]	66 - 19.500 Hz / 66 - 18.000 Hz [VIO X206-100]
Frequency Response [-6dB]	70 - 18.000 Hz / 70 - 17.500 Hz [VIO X206-100]
Max SPL	131 dB
HF	1x 1”, 1.75 v.c.
LF	2x 6.5”, 1.75 v.c
VIO X206 Directivity	60° x 90° rotatable
VIO X206-100 Directivity	100° x 15° [H x V]

*Amplifier*
Amplifier	900 W RMS Class-D Digipro® G3
Cooling	Convection
Power Supply	Auto-range SMPS

*Processor*
Controller	DSP 32/56 bit
AD/DA Converter	24 bit/96 kHz
Limiter	Peak, RMS, Thermal
Processing	FIR Linear Phase Filters

*Input*
Signal Input	1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output	1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket	1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
Controls	1x Rotary Encoder (10x EQ presets) 1x Input Attenuation Rotary Switch 1x On LED 1x Status LED 1x Signal LED 1x Limiter LED 3x RDNet Status LED

*Mechanics*
Housing	Wooden Cabinet, Polyurea painting
Handles	2 x integrated
Rigging points	2x M10 Threaded Nuts (top and bottom)
Width	210 mm (8.3 in)
Height	650 mm (25.6 in)
Depth	270 mm (10.6 in)
Weight	17.3 kg (28.14 lbs)
