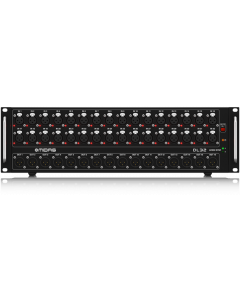

DL-32

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 MIDAS Pro Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.



-32 Input, 16 Output Stage Box with 32 MIDAS Microphone Preamplifiers, ULTRANET and ADAT Interfaces

-32 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power

-16 electronically balanced low impedance line level outputs

-ULTRANET personal monitoring system connectivity for in-ear applications

-Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability

-Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required

-Automatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consoles

-Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors

-2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs

-Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

-Mute All function for quietly patching any inputs on stage

-MIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devices

-Features Neutrik etherCON* AES50 and ULTRANET network ports

-Rugged 3U rackmount chassis for durability in portable applications

-Auto-ranging universal switch-mode power supply

-3-Year Warranty Program*

-Designed and engineered in England
