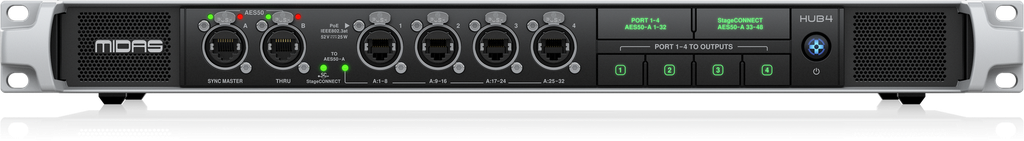

Midas
HUB-4
Monitor System Hub with 4 PoE Ports
-
Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes
-
AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz
-
16 balanced analogue outputs for sending 4x2 personal stereo mixes to IEM transmitters in the side rack
-
Channel naming and Group assignments can be distributed from compatible M32 consoles
-
Midas DL8 Stage Boxes can be connected and powered from ports 1-4
-
Personal mix outputs can be monitored via AES50 upstream to connected consoles
-
Supports remote control forwarding of a DP48 personal mixer from another DP48
-
Front panel buttons for sending signals to analogue output groups 1-4, for StageCONNECT and for AES50-A upstream
-
StageCONNECT output with phantom power for connecting other StageCONNECT devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over any standard XLR microphone or DMX cable
-
Remote operation via shielded CAT5e cable up to 260 ft / 80 m length recommended
-
Features Neutrik etherCON* AES50 network ports
-
Rugged 1U chassis for durability in portable applications
-
Auto-ranging universal switch-mode power supply
-
3-Year Warranty Program*
-
Designed and engineered in the U.K.
-
