PMC

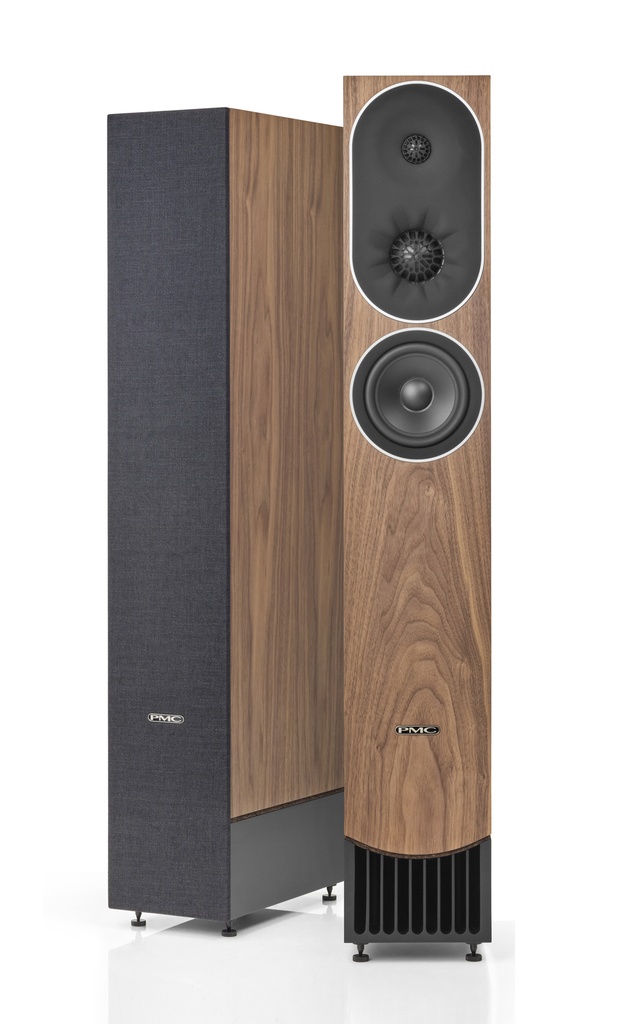

Prophecy7 - Natural Walnut
3-way floorstanding loudspeaker
Once thought to be the preserve of larger speakers, prophecy7’s performance and specification set new standards in its class. Mounted within an innovative waveguide, unique to prophecy, the dedicated mid-range driver in this cutting-edge three-way design ensures precise vocal reproduction and thrilling instrumental textures, all delivered with remarkable transparency.
What’s more, it enhances overall sound quality by allowing the bass unit and tweeter to focus on their specific frequency ranges, all controlled by a sophisticated hand-built crossover, tuned and honed for ideal driver integration. Complementing this superlative mid-range and and treble is our custom bass driver, with the latest Advanced Transmission Line, augmented by the revolutionary LaminairX airflow technology, ensuring this still-compact three-way is both refined and massively powerful.
Frequency Response: 40Hz - 20kHz (-3dB)
Sensitivity: 88dB SPL 1W 1m
Recommended Amp Power: 25 - 250W
Effective ATL™ Length: 1.91m (6.3ft)
Impedance: 6 Ohm
Drive Units:
LF PMC 5”/125mm LTXL mineral cone with cast alloy chassis
MF PMC 2”/55mm soft dome precision midrange
HF PMC 1”/27mm soft dome
Crossover Frequency: 0.6kHz & 3.1kHz
Input Connectors: One pair 4mm binding posts finished in satin nickel
Dimensions:H 965mm 37.9” (+20mm spikes)
W 165mm 6.5”
D 310mm 12.3” (+ 23mm terminals and +10mm grille)
Weight: 23.7kg (52 lbs) ea.
