Product Features
-
2 way full range loudspeaker for Tour and Live Sound applications
-
430 Watts continuous, 1,720 Watts peak power
-
Carbon fibre loaded 12" neodymium motor low frequency driver
-
Titanium dome 1.4" exit, 3" voice coil, neodymium motor compression driver
-
Low profile design to maximise audience sight lines
-
Low distortion waveguide provides 60° H x 40° V dispersion
-
Switchable passive/bi-amp operation for flexibility of use
-
15 mm (5/8") plywood enclosure
-
IP44 dust and water ingress protection
-
Weather-resistant enclosure construction with durable semi matte black paint finish
-
Cloth covered powder coated perforated steel mesh grille
-
Durable handle for easy lifting and carrying
-
Industry standard 4-pole twist-lock speaker connectors for reliable long life operation

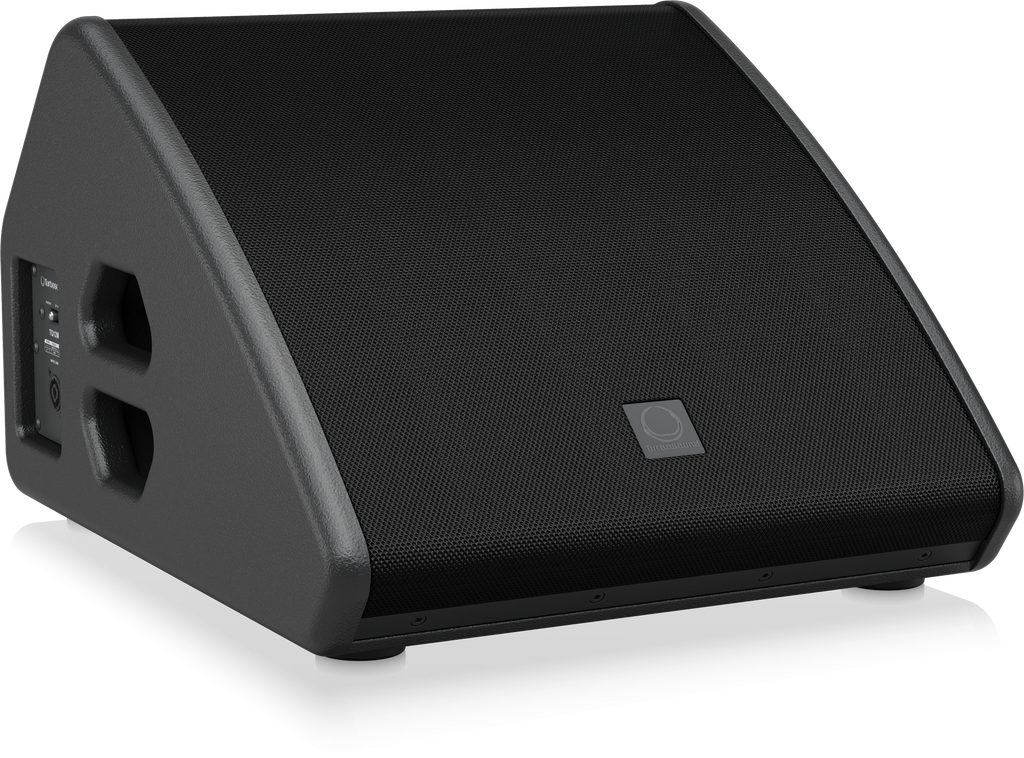

TQ12M
The 2-way full range TQ12M is a switchable passive/bi-amp 1,720 Watt 12" loudspeaker system that is ideally suited for all professional stage monitor reinforcement applications. The TQ12M is designed to work in conjunction with Lab Gruppen PLM+ and IPX amplification and provides optimal performance for stage monitoring.
Custom-Engineered Drivers and Waveguides
Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TQ12M loudspeaker features an FEM optimized common motor 12" neodymium low frequency driver as well as a titanium and polyimide dome 1.4" exit, 3” voice coil neodymium high frequency compression driver, which is mounted on a 40° horizontal by 60° vertical dispersion low Aluminium zero ring custom horn. This also acts as a heatsink from the motor assembly, reducing power compression insuring consistent performance over extended durations.
Plywood Construction

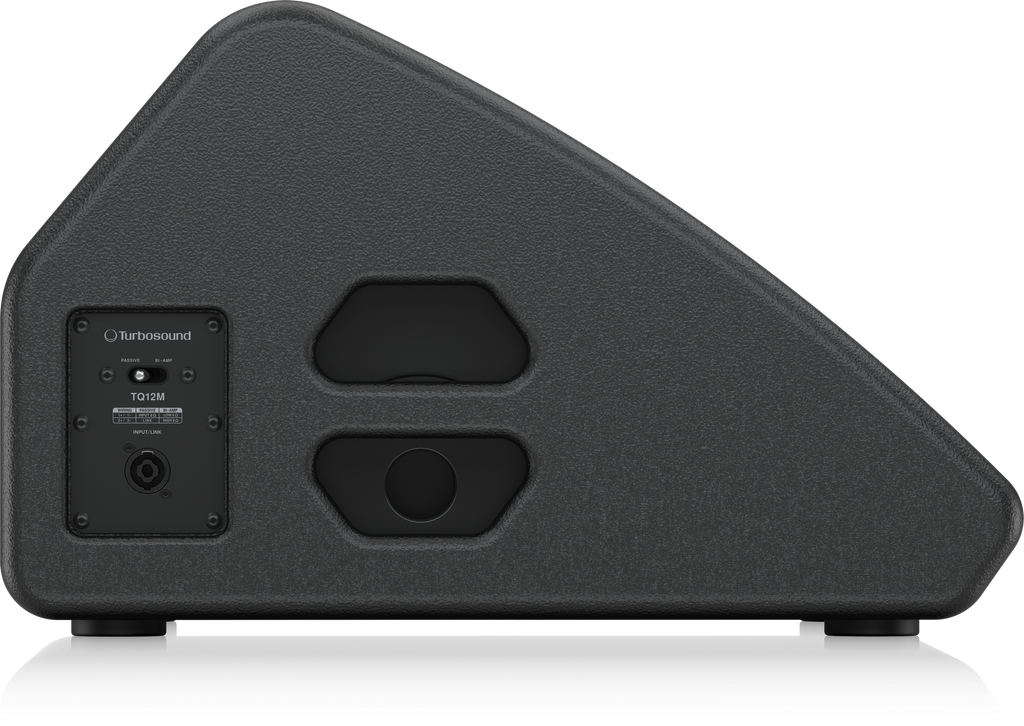

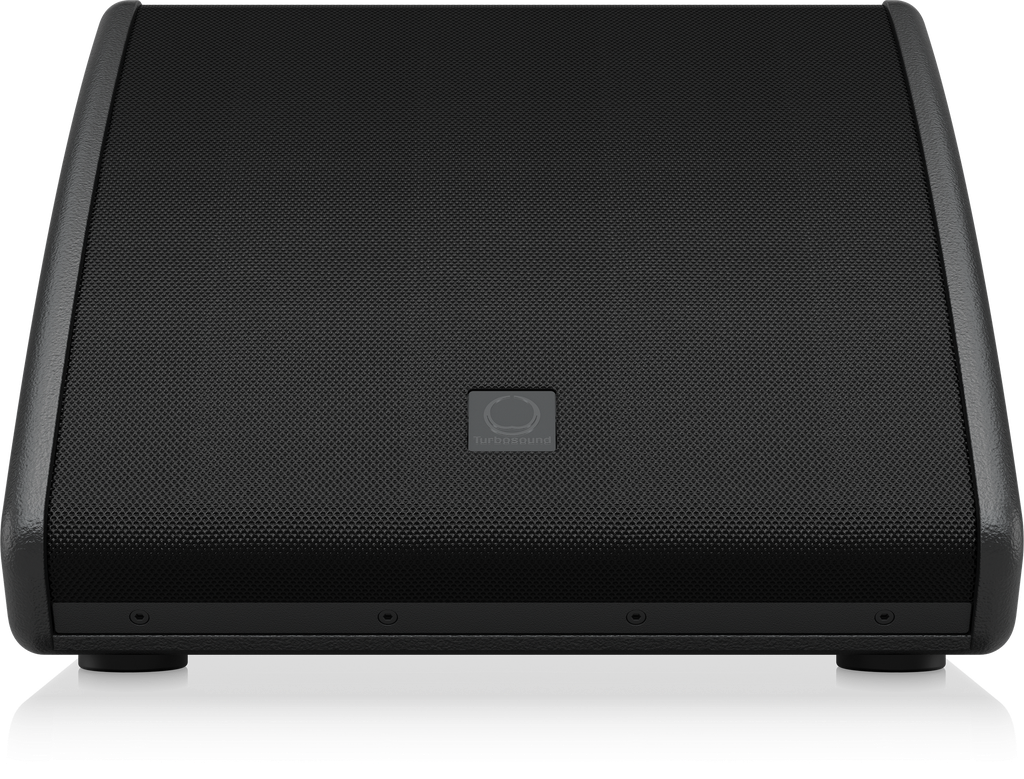

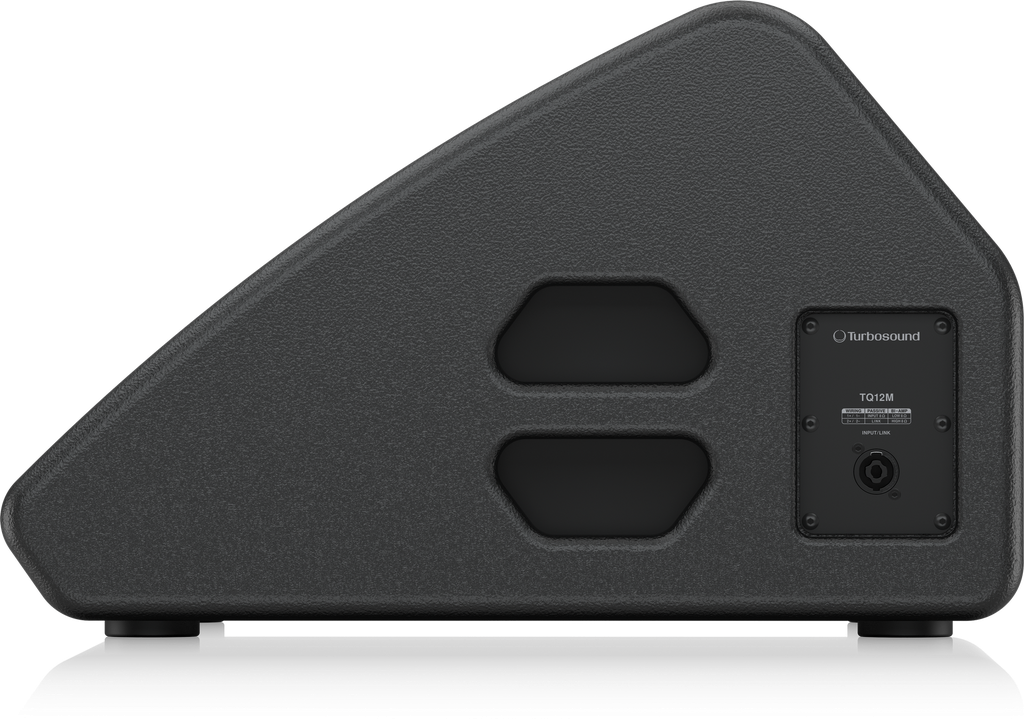

Finished in a highly durable semi matt PU black paint, the cabinet is constructed from 12 and 15 mm (½" and 5/8") plywood. It includes a rugged powder coated cloth wrapped perforated steel mesh grille. The TQ12M includes a convenient pole mount socket for use with 35 mm poles/speaker stands to optimise coverage and side handles for easy transport. The side panels carry two industry-standard twist-locking speaker connectors for input and link connections to additional enclosures, a high-power recessed toggle switch allows switching between passive and bi-amp modes. TQ12M’s low profile design provides improved audience line of sight for seamless integration into any stage application.
Specification
| Frequency response ( +/-3 dB)* |
69 Hz - 18 kHz |
| Frequency response (-10 dB)* |
59 Hz - 20 kHz |
| Nominal dispersion (@ -6 dB points) |
40 H x 60 V |
| Power handling (IEC) |
LF: 350 W continuous HF: 80 W continuous FR: 430 W continuous |
| Peak |
LF: 1400 W peak HF: 320 W peak FR: 1720 W peak |
| Sensitivity (1 W @ 1 m)** |
F: 99.5 dB, HF: 106 dB |
| Maximum SPL*** |
137 dB (passive mode) 138 dB (bi-amp mode) |
| Impedance |
LF: 8 Ω / HF: 8 Ω FR: 8 Ω |
| Components |
1 x 12" (315 mm) Co-axial LF driver 1 x 1.4" (36 mm) / 3" (72 mm) Voice coil HF compression driver |
Enclosure
| Connectors |
2 x Industry-standard 4-pole twist-lock speaker connectors |
| Wiring |
Passive: Pins 1+ / 1- input, pins 2+ / 2- link Bi-Amp: Pins 1+ / 1- LF input / link, pins 2+ / 2- HF input / link |
| Dimensions HWD |
335 x 450 x 535 mm (13.189 x 17.717 x 21.06 ") |
| Net weight |
17.8 kg (39.24 lbs) |
| Construction |
12 mm and 15 mm (1/2" and 5/8") birch plywood |
| Finish |
PU Semi matt black paint |
| Grille |
Powder coated perforated steel, cloth wrapped |
| IP rating |
IP44 |
| UV rating |
4-5 (ASTM G155-13) |
| Pole Mount |
Yes, (single, no tilt) |
*Average over stated bandwidth. Measured at 1 metre on axis.
**SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set.
***Peak level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated pre-set.
Ease Data can be downloaded from www.turbosound.com
