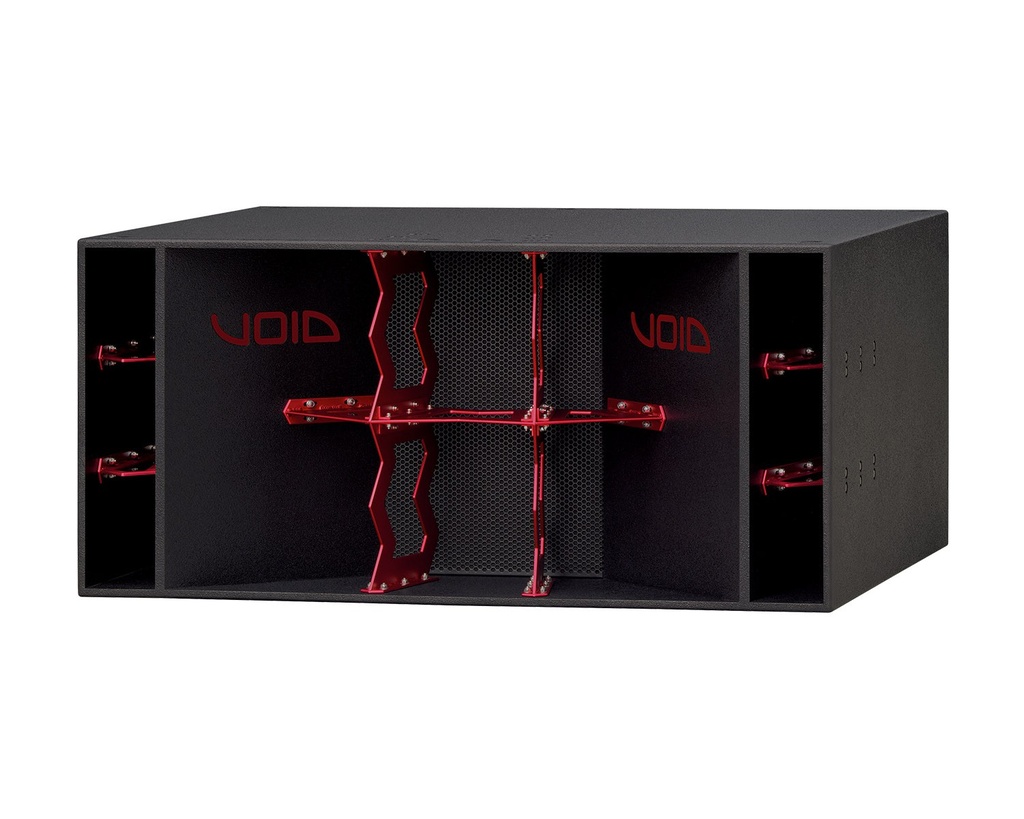

Incubus Sub

Prestigious sound, ingenious form

Generating an unforgettable dance floor experience for every listener.

Hybrid Horn-Loaded Bandpass Subwoofer

Designed to work with the Hyperfold upper bass enclosure, the Incubus Sub delivers exceptionally powerful audio in an ingenious form. Comprising of one third of the prestigious Incubus System with lightning-quick impulse response.

Three High Excursion 21" LF Transducers

The Incubus Subs black textured ‘TourCoat’ polyurea finish and aluminium cabinet bracing contribute to the Sub’s distinctive design, with optional customisation making it a popular choice for cosmetically conscious nightclubs, concerts and venues.

Key Features

• Triple 21” hybrid horn-loaded bandpass subwoofer
• Very high-power density
• 3 x high excursion 21” low frequency transducers Extended sub frequency response to 29 Hz

Full Specifications

• Frequency Response: 29 Hz - 95 Hz ±3 dB
• Efficiency¹: 105 dB 1W/1m
• Crossover Points: Preset via dedicated processor
• Nominal Impedance: 3 x 8 Ω
• Power Handling²: 6000 W AES
• Maximum Output³: 142 dB cont, 148 dB peak
• Driver Configuration: 3 x 21” LF with 6” voice coils
• Dispersion: Array dependent
• Connectors: 2 x 8-pole speakON™ NL8
• Weight: 214 kg (471.8 lbs)
• Enclosure: 18 mm birch plywood
• Finish: Textured ‘TourCoat’ polyurea

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
