Audio Technica
ATDM-0604a
Digital SmartMixer
The ATDM-0604 automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica’s SmartMixer® technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.

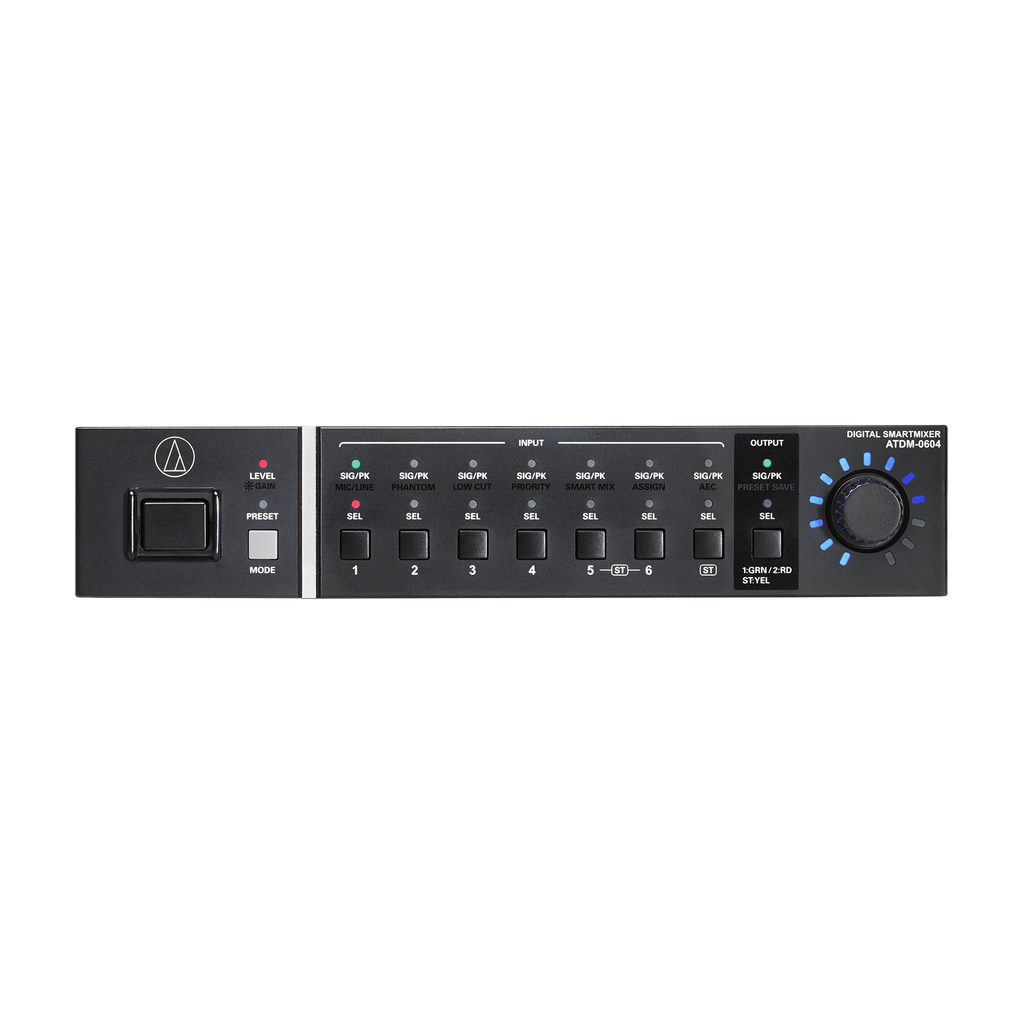

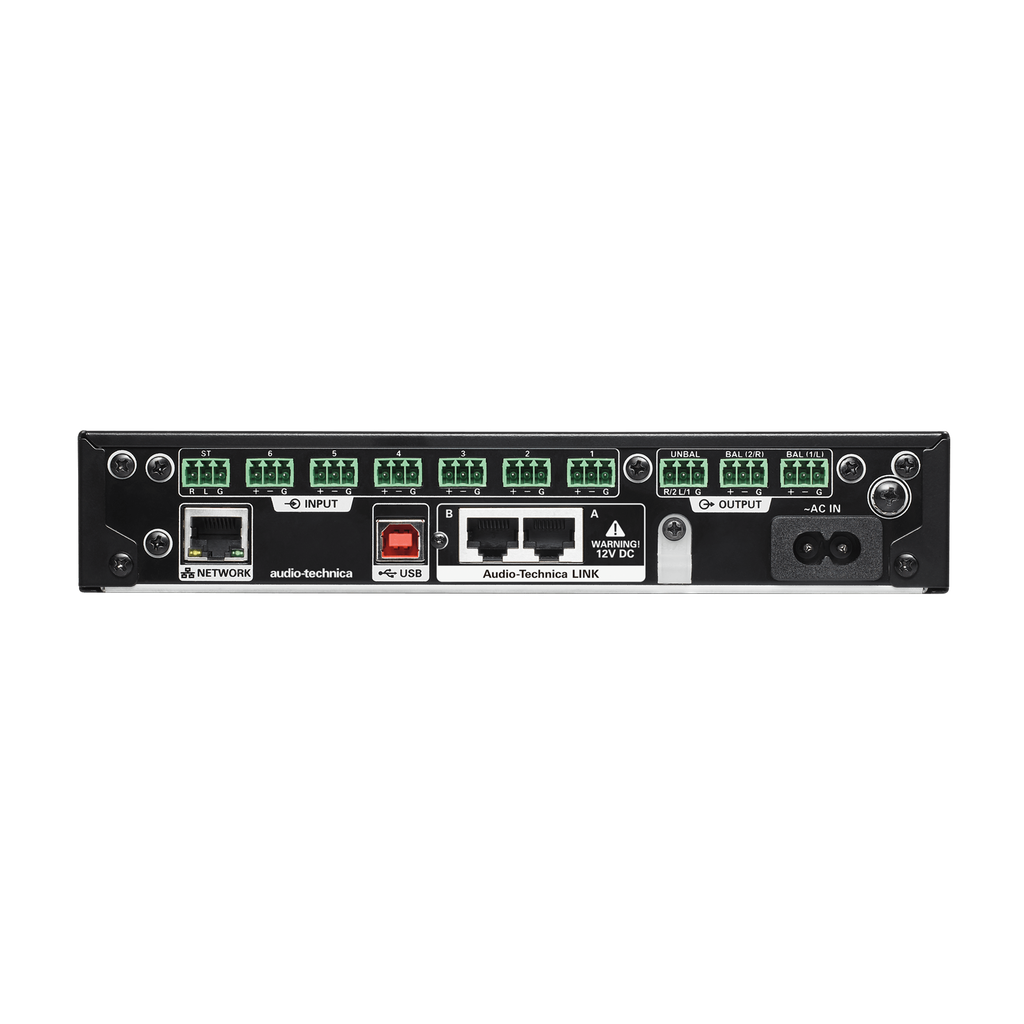

Controls and LED indicators on the mixer’s front panel allow users to easily adjust input/output and gain levels, set and recall presets, turn on/off phantom power, low-cut filter, automatic mixing and acoustic echo cancellation (AEC), change IP configuration (Auto or Static), and more. The ATDM-0604 also includes Web Remote functionality, which allows users to handle the aforementioned adjustments from a Windows-based PC, Mac, iOS or Android device, plus make additional changes to the input and output settings, select gate or gain sharing mode when using Smart Mix, and adjust other advanced settings. The mixer is equipped with four balanced microphone inputs, two balanced Mic/Line inputs and one unbalanced stereo input, along with two balanced and two unbalanced outputs. Network (Cat5e or better) and USB ports are also included, as are A/B Audio-Technica Link ports that let users connect six ATDM-0604 mixers via Cat5e cable for simultaneous use within an expanded setup.
The ATDM-0604 automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica’s SmartMixer® technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
Controls and LED indicators on the mixer’s front panel allow users to easily adjust input/output and gain levels, set and recall presets, turn on/off phantom power, low-cut filter, automatic mixing and acoustic echo cancellation (AEC), change IP configuration (Auto or Static), and more. The ATDM-0604 also includes Web Remote functionality, which allows users to handle the aforementioned adjustments from a Windows-based PC, Mac, iOS or Android device, plus make additional changes to the input and output settings, select gate or gain sharing mode when using Smart Mix, and adjust other advanced settings. The mixer is equipped with four balanced microphone inputs, two balanced Mic/Line inputs and one unbalanced stereo input, along with two balanced and two unbalanced outputs. Network (Cat5e or better) and USB ports are also included, as are A/B Audio-Technica Link ports that let users connect six ATDM-0604 mixers via Cat5e cable for simultaneous use within an expanded setup.
