Audio Technica
ATW-R1310
System 10 Pro Single Channel Receiver

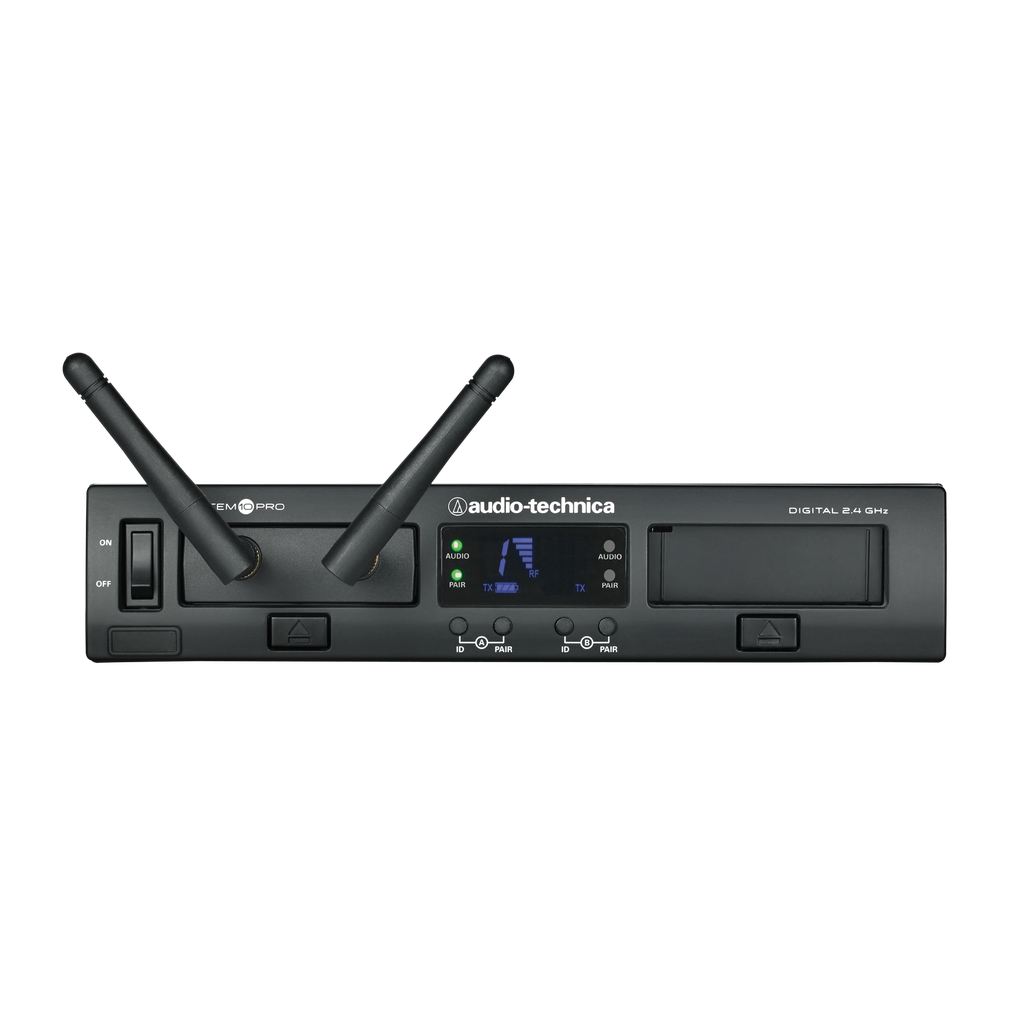

System 10 Pro Single Channel Receiver
The Audio-Technica "System 10 Pro" rack-mountable digital wireless system is so simple to use, so dependable and so automatic that you'll never have to think about it. Set it up anywhere, turn it on and its good to go.
Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality. The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
- This bundle contains 1x ATW-RC13 Rack-mount receiver chassis and 1x ATW-RU13 Receiver unit
- 2.4 GHz 24-bit / 48kHz Digital wireless system
- No interference, as operates outside of DTV or 3G bands
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
- Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
- Possibility of 2 interchangeable receivers per chassis
- Users can pair each receiver with up to 10 transmitters
- 2 frames or 4 receivers can fit in a 19" 1U rack
- Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
- Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
- Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
The Audio-Technica "System 10 Pro" rack-mountable digital wireless system is so simple to use, so dependable and so automatic that you'll never have to think about it. Set it up anywhere, turn it on and its good to go.
Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality. The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
- This bundle contains 1x ATW-RC13 Rack-mount receiver chassis and 1x ATW-RU13 Receiver unit
- 2.4 GHz 24-bit / 48kHz Digital wireless system
- No interference, as operates outside of DTV or 3G bands
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
- Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
- Possibility of 2 interchangeable receivers per chassis
- Users can pair each receiver with up to 10 transmitters
- 2 frames or 4 receivers can fit in a 19" 1U rack
- Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
- Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
- Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
Funktionen
- Digitaler drahtloser Betrieb mit 24 Bit/48 kHz für ultimative Klangqualität und eine zuverlässige Leistung
- Betrieb im 2,4 GHz Bereich – TV-Einstreuungen sind damit ausgeschlossen

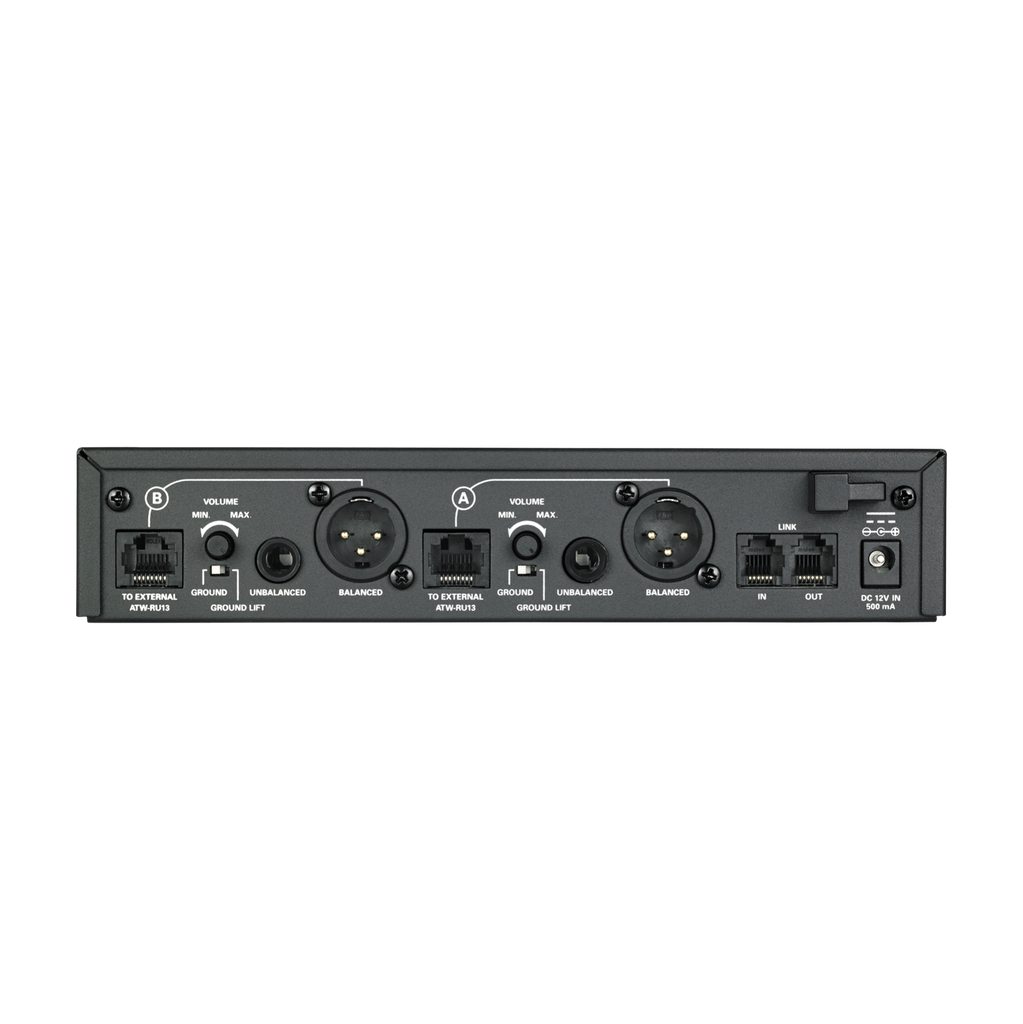

- Die Empfängereinheiten können im Gehäuse angedockt oder für eine höhere Flexibilität über ein Ethernet-Kabel auch entfernt (bis zu 100 m) montiert werden
- Bis zu fünf Gehäuse (10 Empfängereinheiten) können verbunden und gleichzeitig genutzt werden
- Jede Empfängereinheit kann mit bis zu 10 Sendern gekoppelt werden, so dass der Anwender sofort zwischen verschiedenen Sender-Konfigurationen umschalten kann
- Die System-ID-Anzeige des Gehäuses zeigt die RF-Signalstärke, die System-ID, den Zustand der Batterie im Sender sowie den System-Link-Status
- Automatische Frequenzwahl für einen nahtlosen und störungsfreien Betrieb
- Extrem einfache Bedienung mit verzögerungsfreier Kanalauswahl, Synchronisation und Einrichtung
- Hohe Sicherheit durch drei Diversity-Ebenen: Frequenz, Zeit und Raum
- Ground-Lift-Schalter zur Beseitigung von hörbarem Brummen, das von Masseschleifen verursacht wird
Spezifikationen
| Overall System | |
|---|---|
| Betriebsfrequenz | 2,4 GHz ISM-Band (2.400 bis 2.483,5 MHz) |
| Frequenzbereich | 20 Hz bis 20 kHzAbhängig vom Mikrofontyp |
| Reichweite | 60 m typisch Freifeld ohne Interferenzen durch andere Signale |
| Harmonische Gesamtverzerrung | <0,05% typisch |
| Betriebstemperatur | 0 °C bis +40 °C Die Akkuleistung kann sich bei extrem niedrigen Temperaturen verringern |
System 10 Pro Single Channel Receiver
The Audio-Technica "System 10 Pro" rack-mountable digital wireless system is so simple to use, so dependable and so automatic that you'll never have to think about it. Set it up anywhere, turn it on and its good to go.
Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality. The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
- This bundle contains 1x ATW-RC13 Rack-mount receiver chassis and 1x ATW-RU13 Receiver unit
- 2.4 GHz 24-bit / 48kHz Digital wireless system
- No interference, as operates outside of DTV or 3G bands
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
- Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
- Possibility of 2 interchangeable receivers per chassis
- Users can pair each receiver with up to 10 transmitters
- 2 frames or 4 receivers can fit in a 19" 1U rack
- Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
- Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
- Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
The Audio-Technica "System 10 Pro" rack-mountable digital wireless system is so simple to use, so dependable and so automatic that you'll never have to think about it. Set it up anywhere, turn it on and its good to go.
Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality. The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
- This bundle contains 1x ATW-RC13 Rack-mount receiver chassis and 1x ATW-RU13 Receiver unit
- 2.4 GHz 24-bit / 48kHz Digital wireless system
- No interference, as operates outside of DTV or 3G bands
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
- Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
- Possibility of 2 interchangeable receivers per chassis
- Users can pair each receiver with up to 10 transmitters
- 2 frames or 4 receivers can fit in a 19" 1U rack
- Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
- Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
- Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
Funktionen
- Digitaler drahtloser Betrieb mit 24 Bit/48 kHz für ultimative Klangqualität und eine zuverlässige Leistung
- Betrieb im 2,4 GHz Bereich – TV-Einstreuungen sind damit ausgeschlossen
- Die Empfängereinheiten können im Gehäuse angedockt oder für eine höhere Flexibilität über ein Ethernet-Kabel auch entfernt (bis zu 100 m) montiert werden
- Bis zu fünf Gehäuse (10 Empfängereinheiten) können verbunden und gleichzeitig genutzt werden
- Jede Empfängereinheit kann mit bis zu 10 Sendern gekoppelt werden, so dass der Anwender sofort zwischen verschiedenen Sender-Konfigurationen umschalten kann
- Die System-ID-Anzeige des Gehäuses zeigt die RF-Signalstärke, die System-ID, den Zustand der Batterie im Sender sowie den System-Link-Status
- Automatische Frequenzwahl für einen nahtlosen und störungsfreien Betrieb
- Extrem einfache Bedienung mit verzögerungsfreier Kanalauswahl, Synchronisation und Einrichtung
- Hohe Sicherheit durch drei Diversity-Ebenen: Frequenz, Zeit und Raum
- Ground-Lift-Schalter zur Beseitigung von hörbarem Brummen, das von Masseschleifen verursacht wird
Spezifikationen
| Overall System | |
|---|---|
| Betriebsfrequenz | 2,4 GHz ISM-Band (2.400 bis 2.483,5 MHz) |
| Frequenzbereich | 20 Hz bis 20 kHzAbhängig vom Mikrofontyp |
| Reichweite | 60 m typisch Freifeld ohne Interferenzen durch andere Signale |
| Harmonische Gesamtverzerrung | <0,05% typisch |
| Betriebstemperatur | 0 °C bis +40 °C Die Akkuleistung kann sich bei extrem niedrigen Temperaturen verringern |
