Audio Technica
ES931WML/MIC

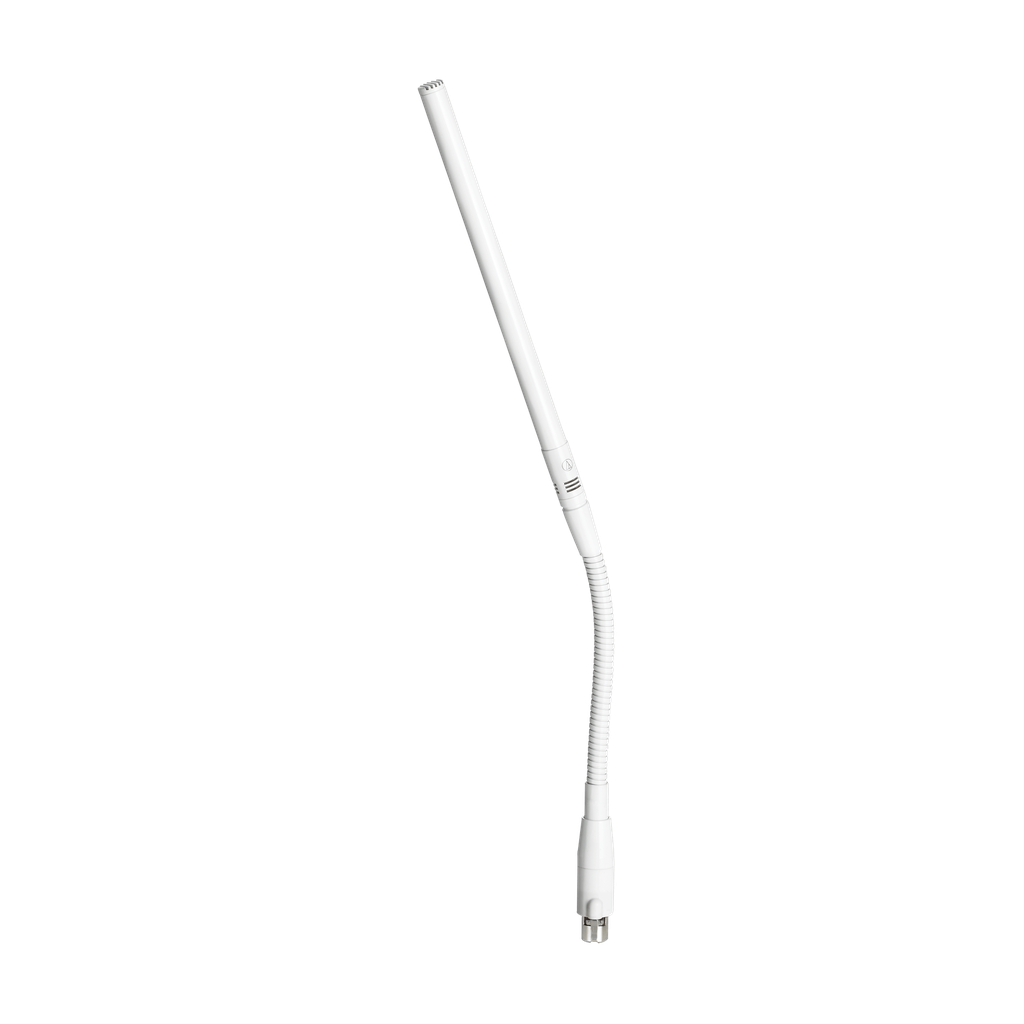

MicroLine Condenser Gooseneck Microphone
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep® filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
- Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | –40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 128 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 102 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 4 mA typical |
| Switches | Flat, roll-off; 0 dB, +10 dB gain setting |
| Weight (microphone) | 39 g (1.4 oz) |
| Weight (power module) | 97 g (3.4 oz) |
| Dimensions (power module) | 71.0 mm (2.80") W x 115.5 mm (4.55") H x 36.0 mm (1.42") D |
| Dimensions (microphone) | 152.4 mm (6.0") long (with capsule), 8.4 mm (0.33") head diameter, 11.6 mm (0.46") base diameter |
| Optional Interchangeable Elements | ESE-C cardioid (120°), ESE-O omnidirectional (360°), ESE-H hypercardioid (100°), ESE-ML MicroLine (90°) |
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep® filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
- Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | –40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 128 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 102 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 4 mA typical |
| Switches | Flat, roll-off; 0 dB, +10 dB gain setting |
| Weight (microphone) | 39 g (1.4 oz) |
| Weight (power module) | 97 g (3.4 oz) |
| Dimensions (power module) | 71.0 mm (2.80") W x 115.5 mm (4.55") H x 36.0 mm (1.42") D |
| Dimensions (microphone) | 152.4 mm (6.0") long (with capsule), 8.4 mm (0.33") head diameter, 11.6 mm (0.46") base diameter |
| Optional Interchangeable Elements | ESE-C cardioid (120°), ESE-O omnidirectional (360°), ESE-H hypercardioid (100°), ESE-ML MicroLine (90°) |
