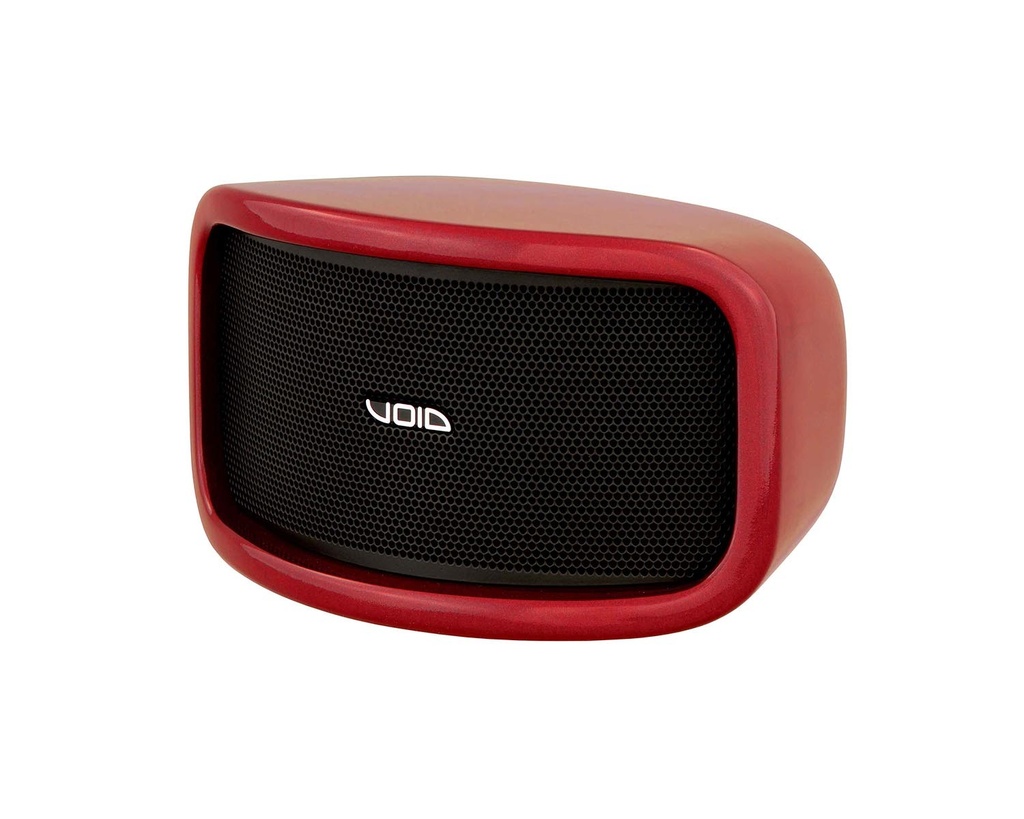

Cyclone 55

Exceptional Definition, Condensed Form

Cyclone 55 offers prominent levels of fidelity and definition from an ultra-compact and visually appealing format, while optional colour customisation makes the loudspeaker perfect for aesthetically conscious and experience-driven locations.

Ideal For Coastal Outdoor Environments

The wide range of adjustments allows the dispersion pattern to be accurately aimed at large audiences, requiring a minimal number of loudspeakers. Well suited to a variety of outdoor and indoor spaces including beach bars, resorts and cruise ships.

Key Features

• Passive dual 5” two-way surface mount loudspeaker
• Compact fibreglass enclosure
• Non-resonant structure
• Wide dispersion pattern
• Marine-grade stainless steel fittings
• UV-resilient paint
• Weather-protected with an IP-55 rating (BS EN 60529:1992 +A2:2013)

Full Specifications

• Frequency response: 70 Hz - 23 kHz ±3 dB
• Efficiency¹: 92 dB 1W/1m
• Crossover points: 3.6 kHz passive
• Nominal impedance: 16 Ω
• Power handling²: 120 W AES
• Maximum output³: 112 dB cont, 118 dB peak
• Driver configuration: 2 x 5” LF, 2 x 1” soft dome HF tweeters
• Dispersion: 110°H x 70°V
• Connectors: Phoenix connectors with link out
• Weight: 3.2 kg (7.1 lbs)
• Enclosure: Fibreglass
• IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
• Rigging: Wall bracket included, type 51 plate
• Finish: Smooth cellulose

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
