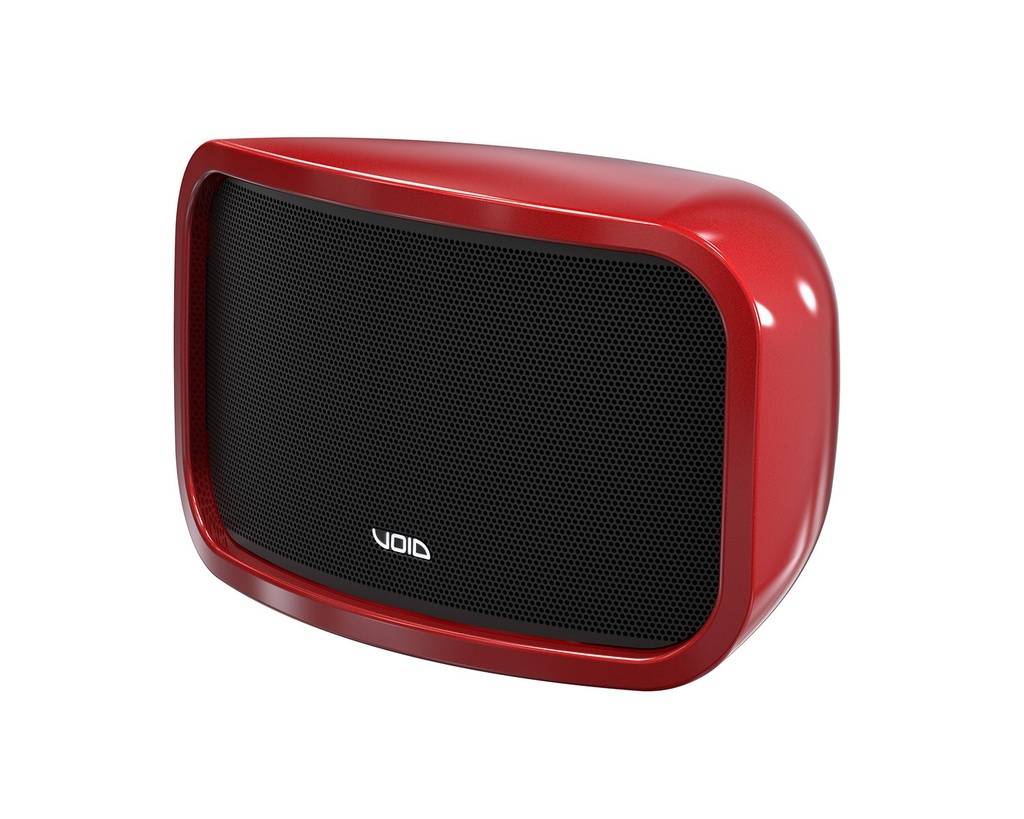

Cyclone 8
Passiv 2-way, 8/1", 8ohm, 200W AES, 90x90°, IP55
Installation Friendly Package
The Cyclone 8 embraces an innovative design that's easy to install. The condensed form reinforces efficiency and ease of use without compromising on audio fidelity. While state-of-the-art porting minimises turbulent noise, maximising LF performance.
Weather Protected IP-55 Rating
Cyclone 8's UV resilient cellulose finish and weather-protected IP-55 rating make it perfectly suited for a host of indoor and outdoor applications. Including nightclubs, bars, hotels and retail outlets, as well as beach bars, poolside and yachts.
Key Features
- Passive 8” two-way surface mount loudspeaker
- Compact fibreglass enclosure
- Non-resonant structure
- Marine-grade stainless steel fittings
- UV resilient paint
- Weather-protected with an IP-55 rating (BS EN 60529:1992 +A2:2013)
Full Specifications
- Frequency Response: 70 Hz - 20 kHz ±3 dB
- Efficiency1: 94 dB 1W/1m
- Crossover Points: 2 kHz passive
- Nominal Impedance: 8 Ω
- Power Handling2: 200 W AES
- Maximum Output3: 118 dB cont, 121 dB peak
- Driver Configuration: 1 x 8”, 1 x 1” coaxial
- Dispersion: 90°H x 90°V
- Connectors: Phoenix
- Weight: 14 kg (31 lbs)
- Enclosure: Fibreglass composite
- IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
- Mounting: Type 80 plate
- Colour: Custom colours available upon request
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
Installation Friendly Package
The Cyclone 8 embraces an innovative design that's easy to install. The condensed form reinforces efficiency and ease of use without compromising on audio fidelity. While state-of-the-art porting minimises turbulent noise, maximising LF performance.
Weather Protected IP-55 Rating
Cyclone 8's UV resilient cellulose finish and weather-protected IP-55 rating make it perfectly suited for a host of indoor and outdoor applications. Including nightclubs, bars, hotels and retail outlets, as well as beach bars, poolside and yachts.
Key Features
- Passive 8” two-way surface mount loudspeaker
- Compact fibreglass enclosure
- Non-resonant structure
- Marine-grade stainless steel fittings
- UV resilient paint
- Weather-protected with an IP-55 rating (BS EN 60529:1992 +A2:2013)
Full Specifications
- Frequency Response: 70 Hz - 20 kHz ±3 dB
- Efficiency1: 94 dB 1W/1m
- Crossover Points: 2 kHz passive
- Nominal Impedance: 8 Ω
- Power Handling2: 200 W AES
- Maximum Output3: 118 dB cont, 121 dB peak
- Driver Configuration: 1 x 8”, 1 x 1” coaxial
- Dispersion: 90°H x 90°V
- Connectors: Phoenix
- Weight: 14 kg (31 lbs)
- Enclosure: Fibreglass composite
- IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
- Mounting: Type 80 plate
- Colour: Custom colours available upon request
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
Spezifikationen
| Farbe | Rot oder Schwarz oder Weiss |
