dB Technologies

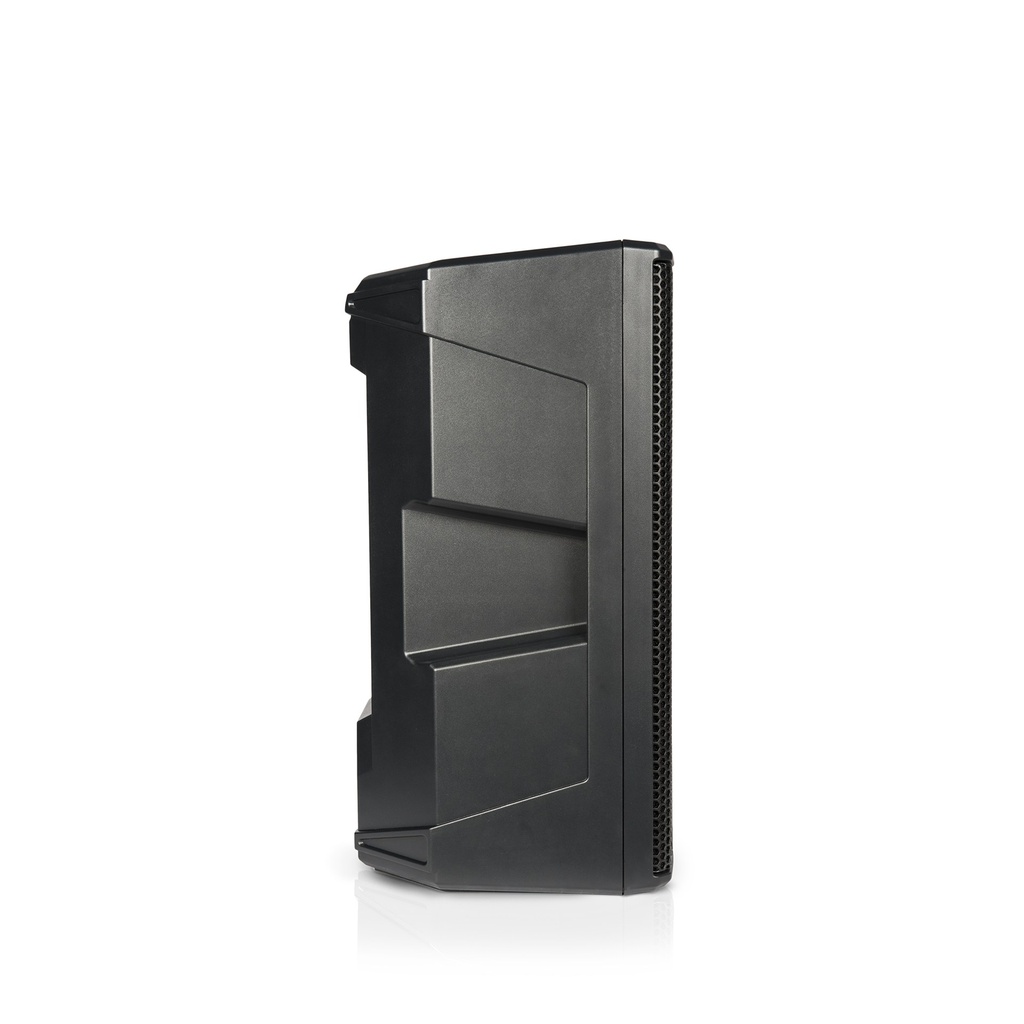

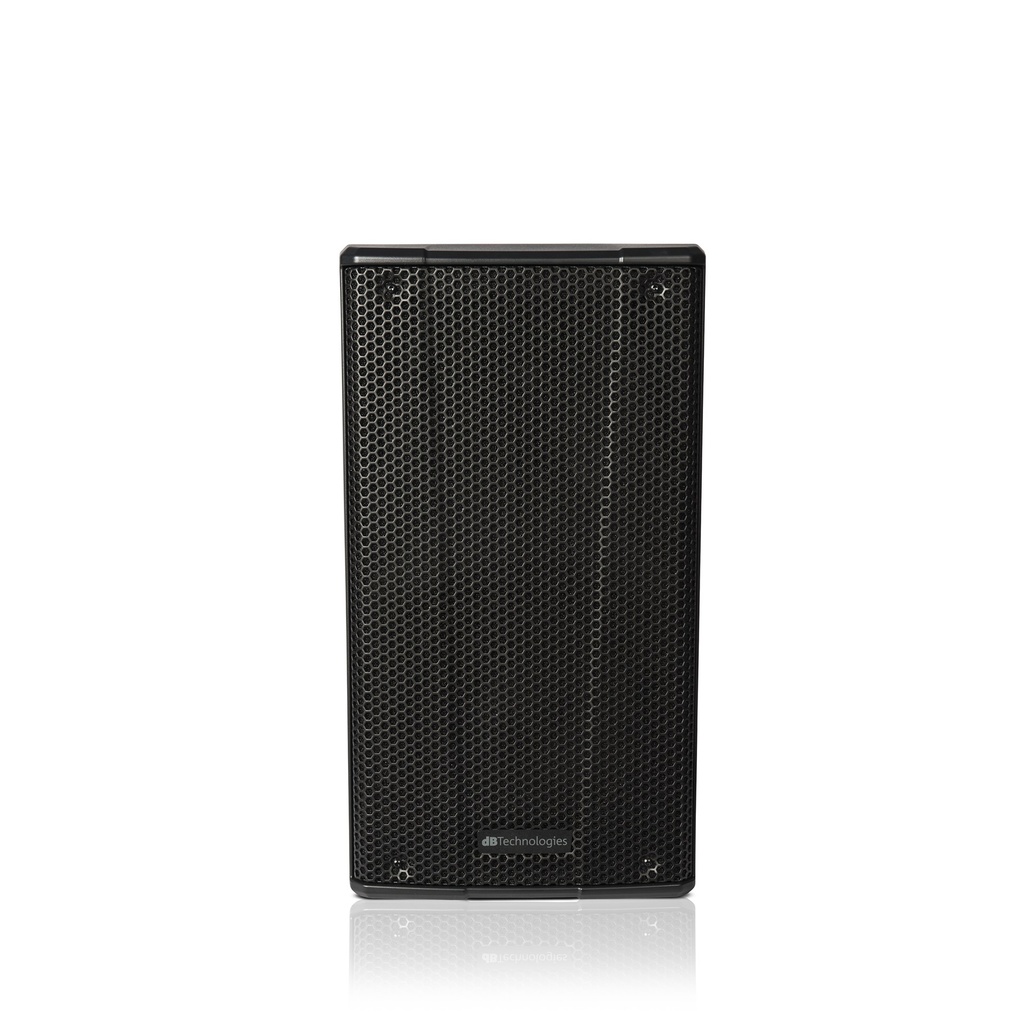

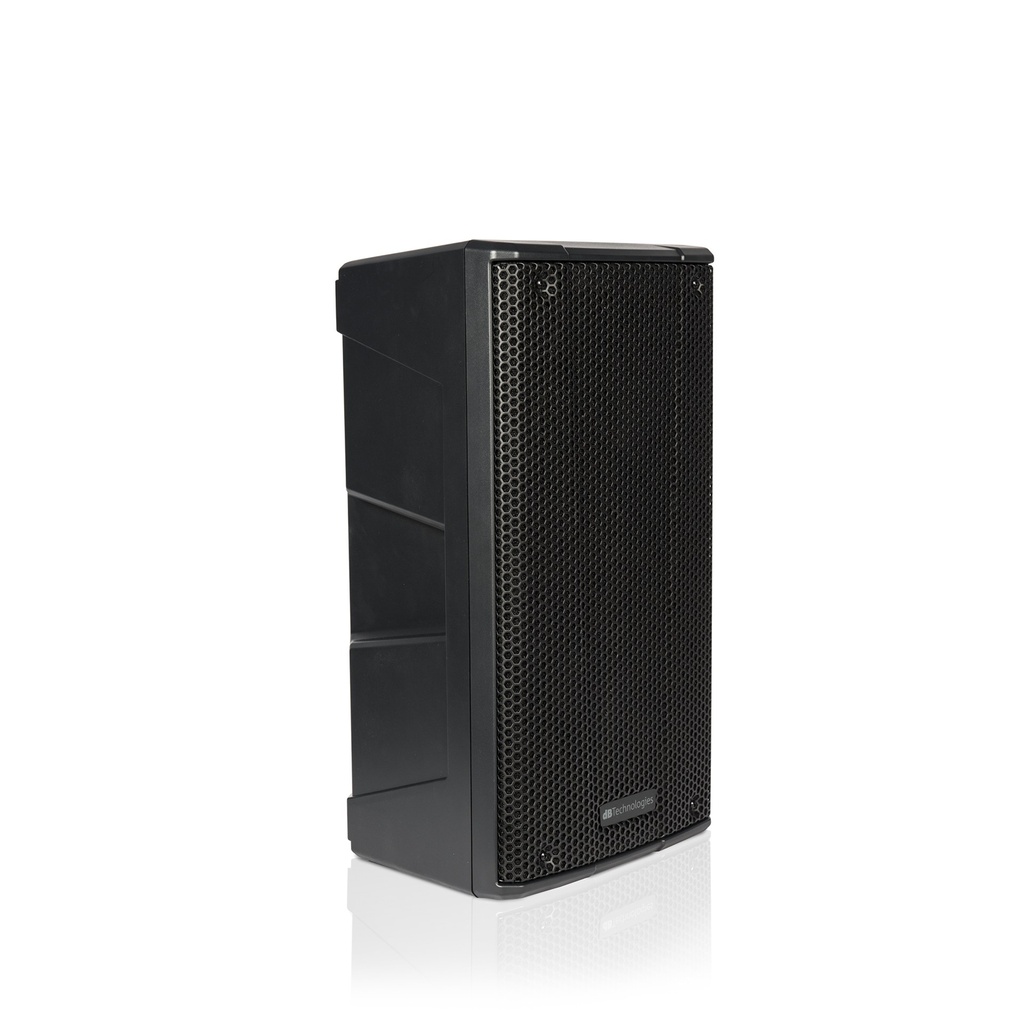

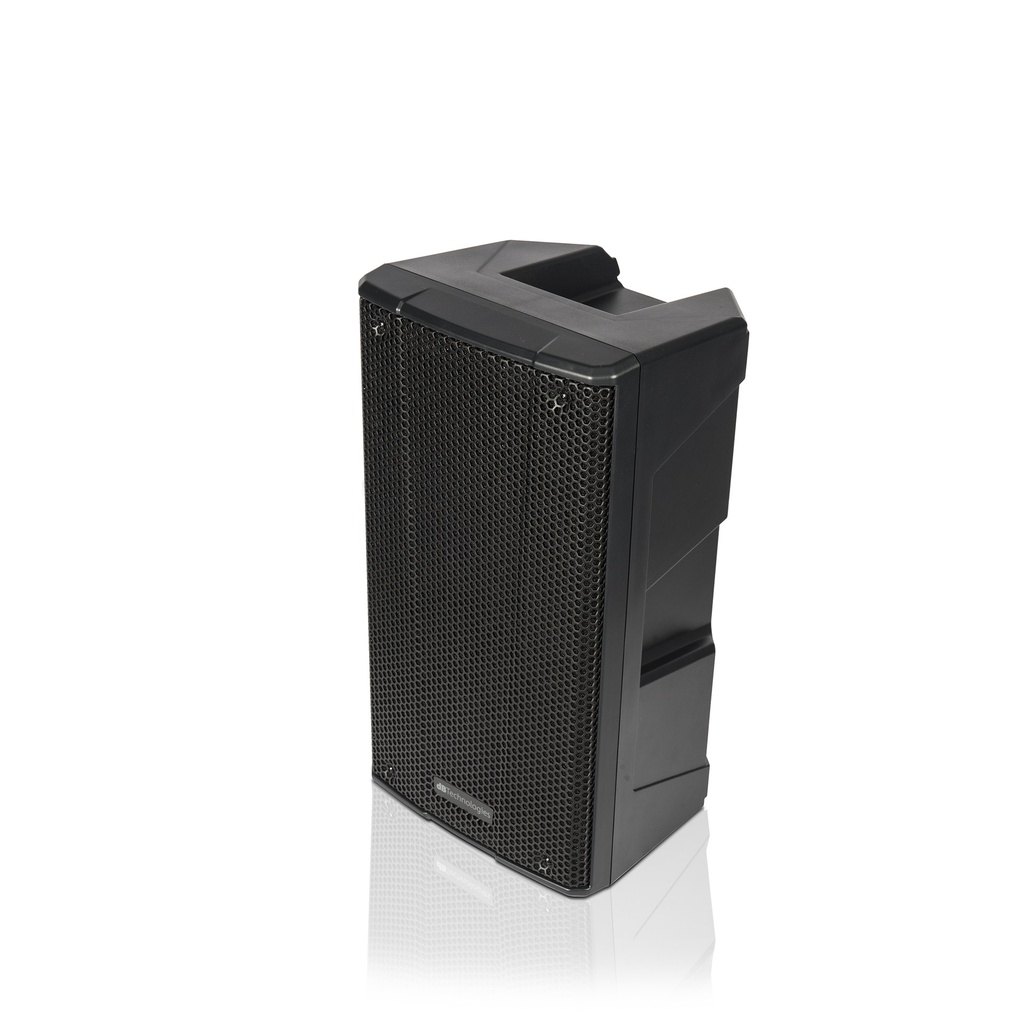

B-HYPE 10
Active 2- Way 10/1", 260W
Technical Data
Speaker Type | 2-Way Active Speaker |
Acoustical data
Usable Bandwidth [-10dB] | 55 - 20.000 Hz |
Frequency Response [-6 dB] | 62 - 19.600 Hz |
Max SPL | 121 dB |
Type HF | Compression Driver |
HF voice coil | 1 " |
LF | 10 " |
LF voice coil | 1.5 " |
Crossover Frequency | 2300 Hz (24 dB/oct.) |
Horizontal Dispersion | asymmetrical 85° up / 120°down |
Vertical Dispersion | 85° (+25/ -60°) |
Amplifier
Amp Technology | Custom Made |
Amp Class | Class D - Passice cooling (convection) |
Power Peak | 260 W |
Processor
Controller | DSP 28/56 bit- 48 kHz |
Limiter | Peak, RMS, Thermal |
Controls | Volume, Audio Input Sensitivity, DSP Preset |

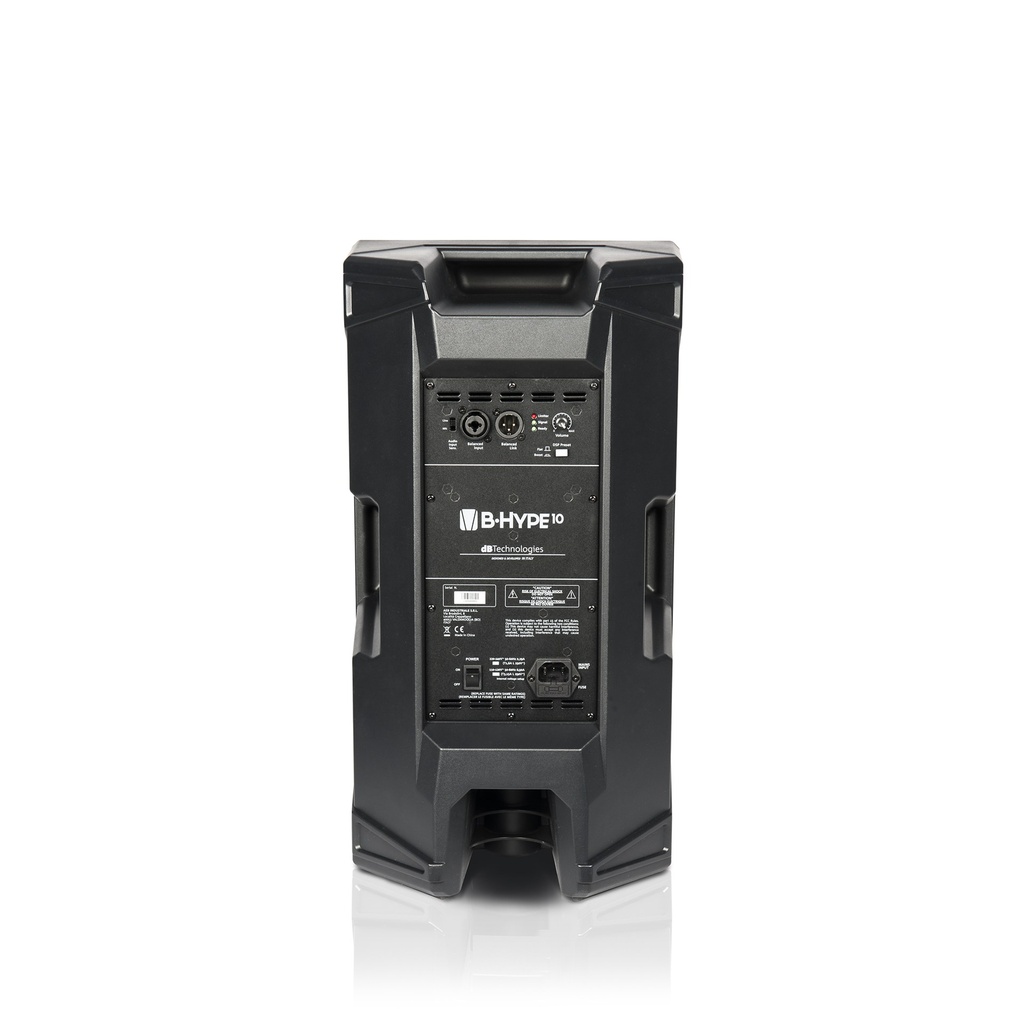

Input
Main Connection | VDE |
Signal Input | Balanced 1xCombo IN (MIC/LINE) |
SIGNAL Out | (Balanced) 1xXLR OUT (LINK) |
Mechanics
Housing | Polypropylene |
Grille | Full Metal Grille |
Handles | 3 (2 on side 1 on top) |
Pole Mount | 36 mm |
Width | 295 mm (11.61 in) |
Height | 544 mm (21.42 in) |
Depth | 283 mm (11.14 in) |
Weight | 9 kg (19.84 lbs) |

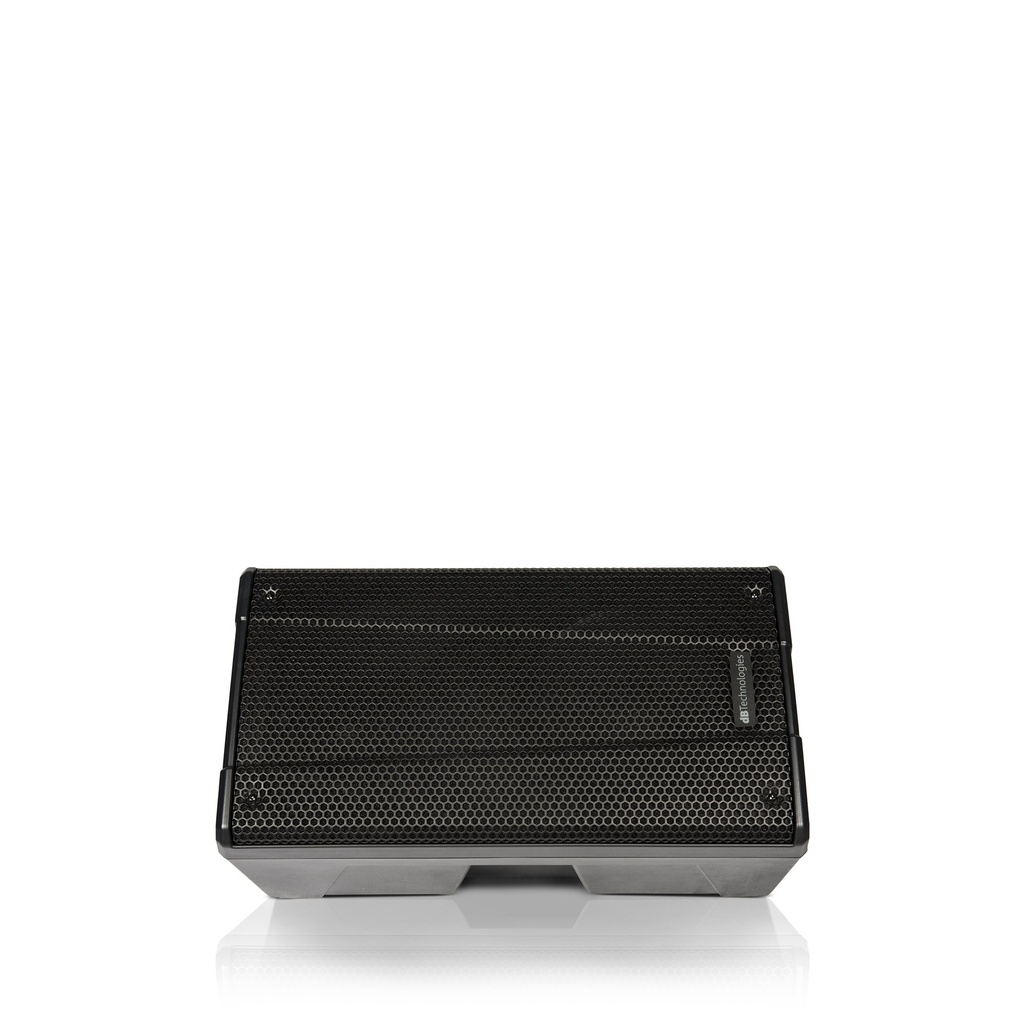

Angles Up | Double wedge angle 45° |
Technical Data
Speaker Type | 2-Way Active Speaker |
Acoustical data
Usable Bandwidth [-10dB] | 55 - 20.000 Hz |
Frequency Response [-6 dB] | 62 - 19.600 Hz |
Max SPL | 121 dB |
Type HF | Compression Driver |
HF voice coil | 1 " |
LF | 10 " |
LF voice coil | 1.5 " |
Crossover Frequency | 2300 Hz (24 dB/oct.) |
Horizontal Dispersion | asymmetrical 85° up / 120°down |
Vertical Dispersion | 85° (+25/ -60°) |
Amplifier
Amp Technology | Custom Made |
Amp Class | Class D - Passice cooling (convection) |
Power Peak | 260 W |
Processor
Controller | DSP 28/56 bit- 48 kHz |
Limiter | Peak, RMS, Thermal |
Controls | Volume, Audio Input Sensitivity, DSP Preset |
Input
Main Connection | VDE |
Signal Input | Balanced 1xCombo IN (MIC/LINE) |
SIGNAL Out | (Balanced) 1xXLR OUT (LINK) |
Mechanics
Housing | Polypropylene |
Grille | Full Metal Grille |
Handles | 3 (2 on side 1 on top) |
Pole Mount | 36 mm |
Width | 295 mm (11.61 in) |
Height | 544 mm (21.42 in) |
Depth | 283 mm (11.14 in) |
Weight | 9 kg (19.84 lbs) |
Angles Up | Double wedge angle 45° |
