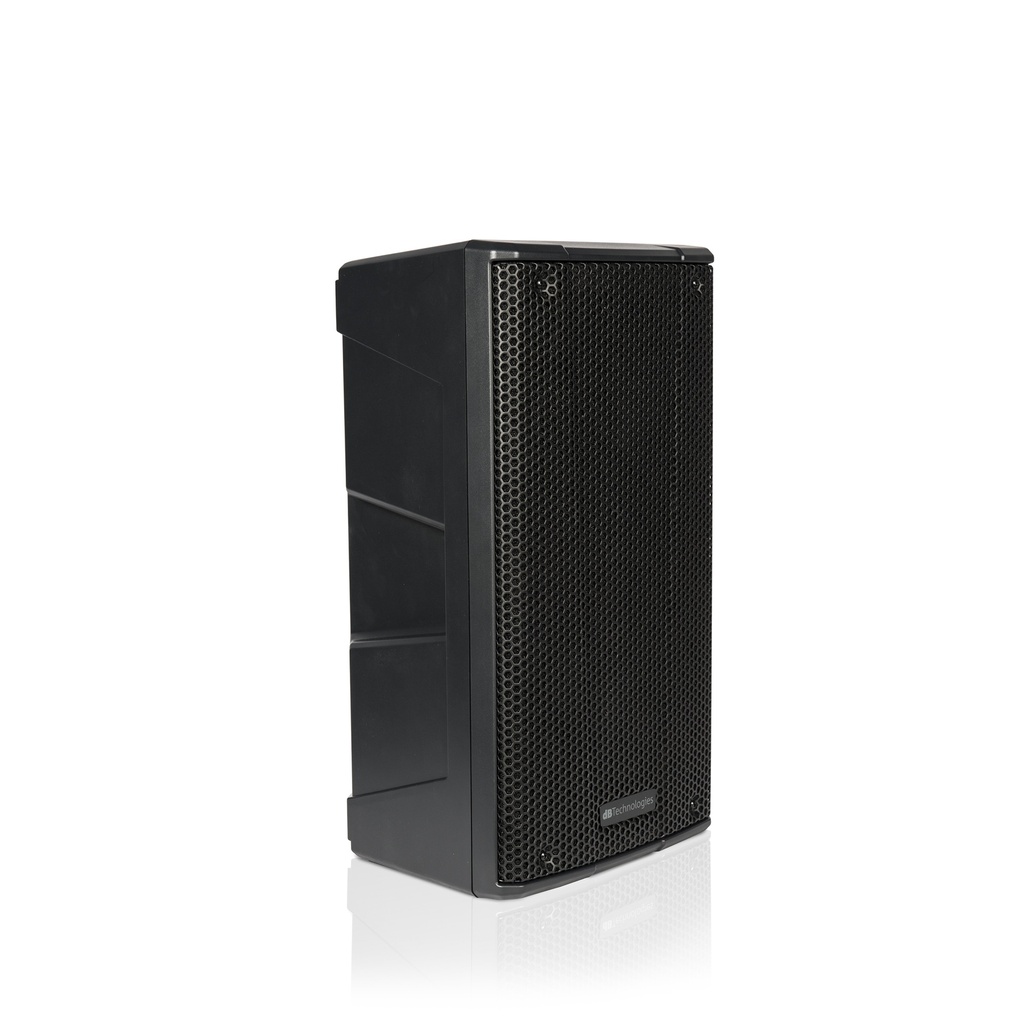

BH10-Threefourths-dBTechnologies

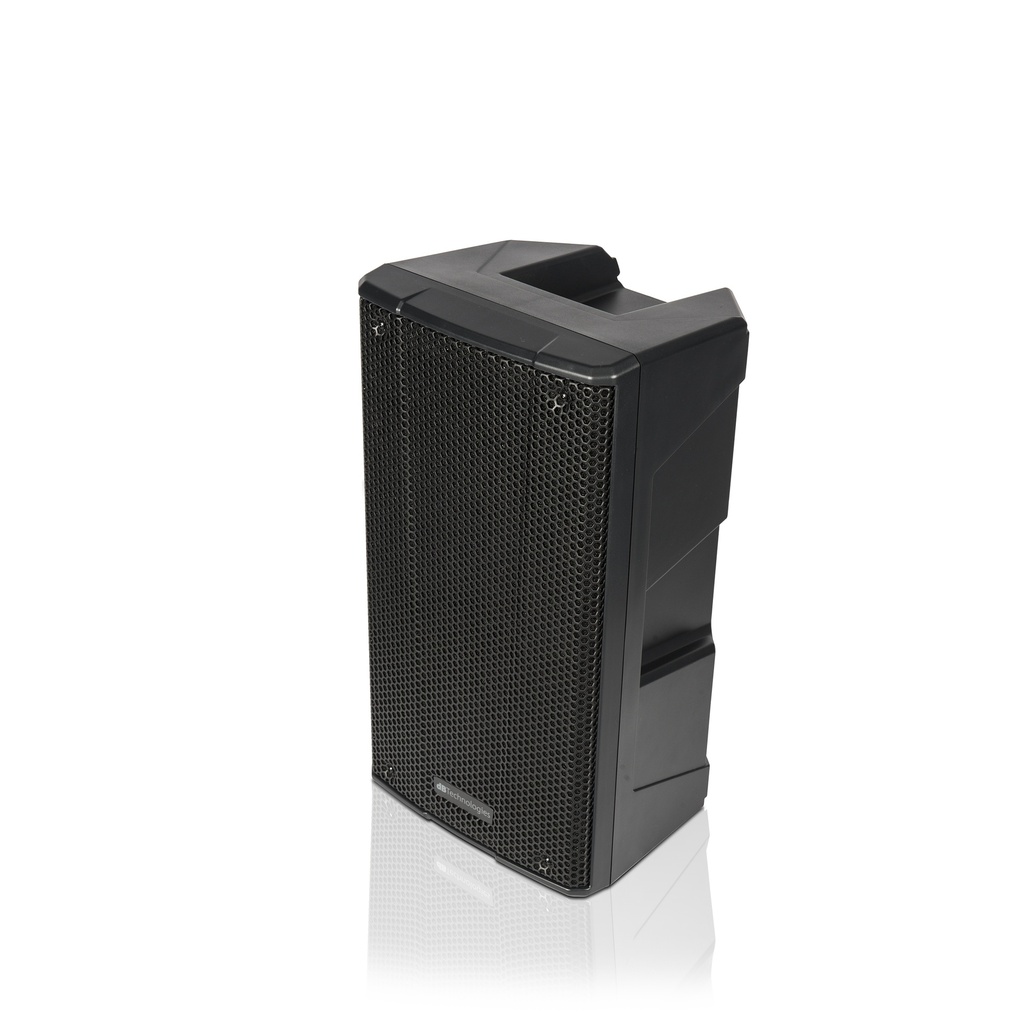

BH10-Threefourths-Top-dBTechnologies

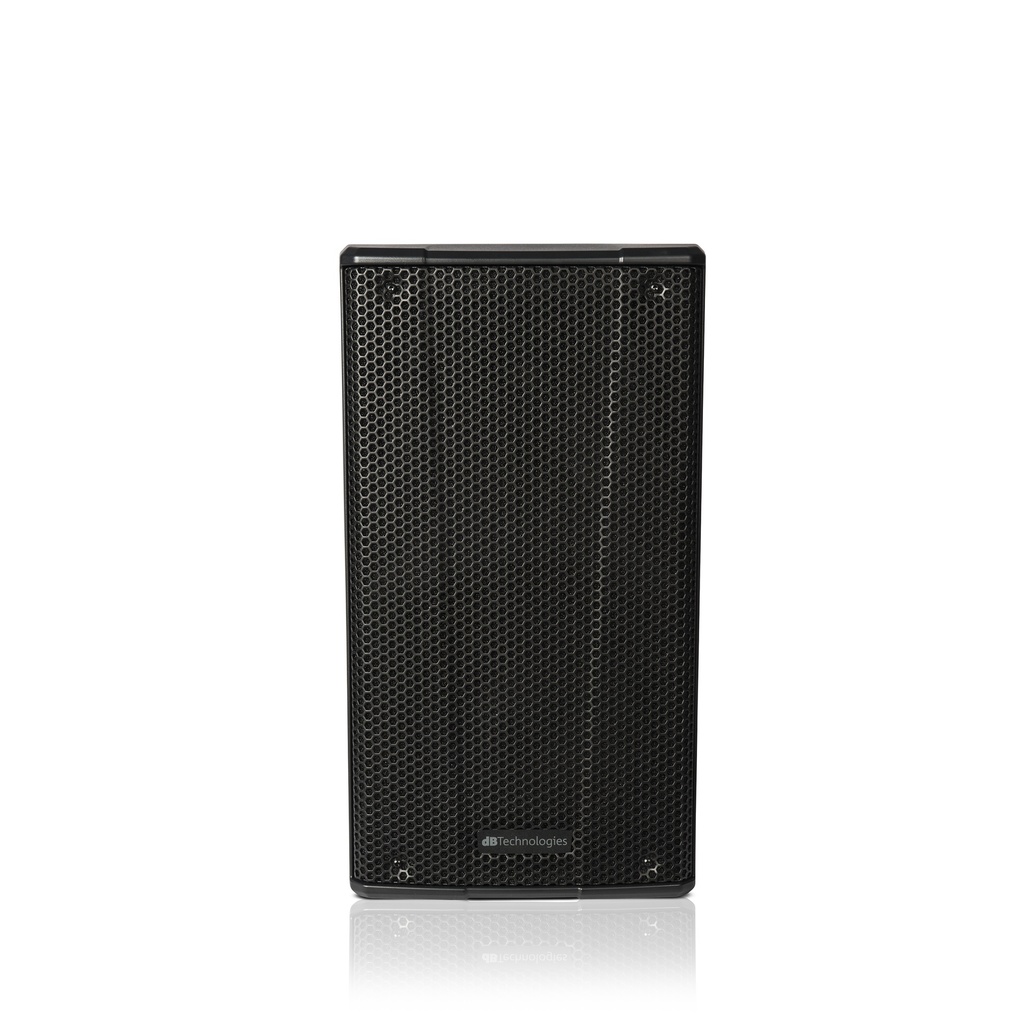

BH10-Front-dBTechnologies

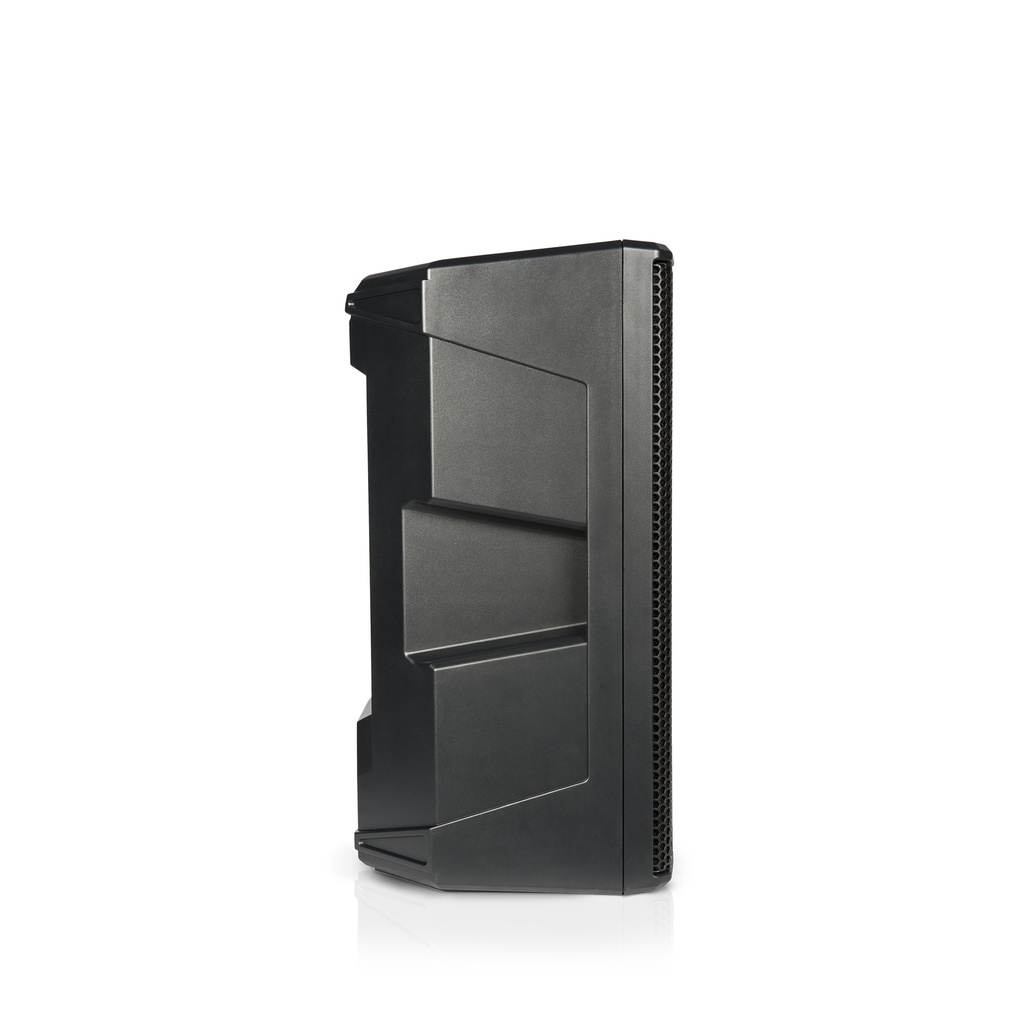

BH10-Side-dBTechnologies

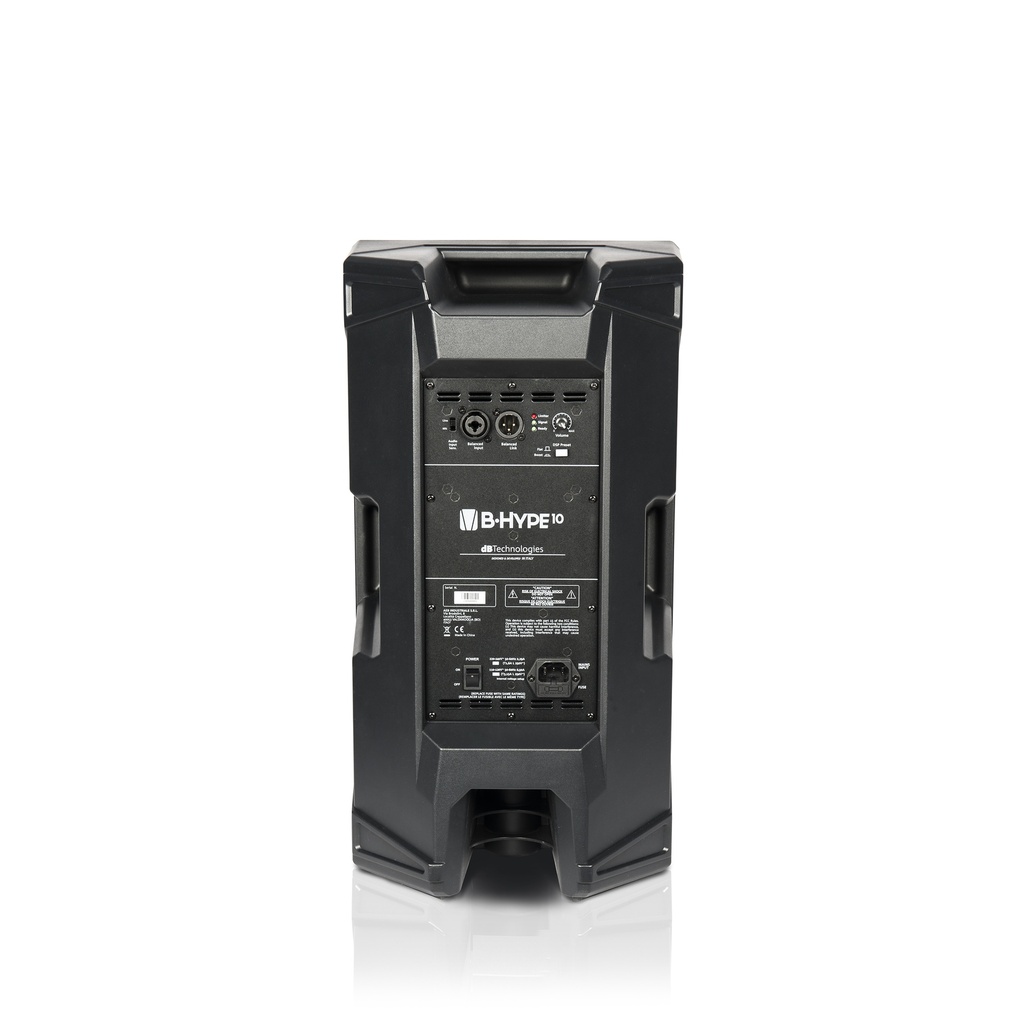

BH10-Retr-dBTechnologies

BH10-Monitor-dBTechnologies

dB Technologies

B-HYPE 10

Active 2- Way 10/1", 260W

CHF 235.89 235.89000000000001 CHF CHF 235.89 Inklusive MwSt.

CHF 235.89 Inklusive MwSt.

Wird für Sie bestellt

Diese Kombination existiert nicht.

In den Warenkorb

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Usable Bandwidth [-10dB]	55 - 20.000 Hz
Frequency Response [-6 dB]	62 - 19.600 Hz
Max SPL	121 dB
Type HF	Compression Driver
HF voice coil	1 "
LF	10 "
LF voice coil	1.5 "
Crossover Frequency	2300 Hz (24 dB/oct.)
Horizontal Dispersion	asymmetrical 85° up / 120°down
Vertical Dispersion	85° (+25/ -60°)

Amplifier

Amp Technology	Custom Made
Amp Class	Class D - Passice cooling (convection)
Power Peak	260 W

Processor

Controller	DSP 28/56 bit- 48 kHz
Limiter	Peak, RMS, Thermal
Controls	Volume, Audio Input Sensitivity, DSP Preset

Input

Main Connection	VDE
Signal Input	Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out	(Balanced) 1xXLR OUT (LINK)

Mechanics

Housing	Polypropylene
Grille	Full Metal Grille
Handles	3 (2 on side 1 on top)
Pole Mount	36 mm
Width	295 mm (11.61 in)
Height	544 mm (21.42 in)
Depth	283 mm (11.14 in)
Weight	9 kg (19.84 lbs)
Angles Up	Double wedge angle 45°
